Siemens Sentron JD Breakers for Power Distribution

Thermal magnetic molded case circuit breakers designed for branch and feeder circuit protection

Need Sentron Breakers?

Get Sentron Breaker Quote
Table Of Contents
  1. JD Frame Breakers
  2. Molded Case Breakers
  3. Compact dimensions, high interrupting capacity
  4. Feeder breakers inside switchboards, branch protection
  5. Compact Trip Unit, Accessory Options
  6. Long service life, consistent performance
  7. Reliability, compact size, interrupting performance
  8. Frequently Asked Questions

JD Frame Breakers

Circuit Protection for Switchboards, Panelboards, Motor control centers

Replacing or Upgrading an Electrical Distribution System

When working with industrial electrical systems, you need circuit protection that’s robust, adaptable, and intended for rugged applications. Siemens Sentron JD Frame breakers are designed for this. These molded case circuit breakers are regularly used in switchboards, panelboards, motor control centers, and industrial distribution systems where better interrupting capacity and compact installation are needed.

If you’re replacing an older breaker, upgrading an electrical distribution system, or designing a new installation, knowing the capabilities helps you make better decisions for safety, reliability, and long-term maintenance.

Molded Case Breakers

for applications up to 250 amps

What Are Siemens Sentron JD Frame Breakers?

Siemens Sentron JD Frame breakers are thermal magnetic molded case circuit breakers designed for branch and feeder circuit protection in commercial and industrial power systems. They’re part of the Siemens molded case circuit breakers family recognized for their compact footprint, strong interrupting ratings, and dependable trip performance.

The JD Frame is rated for applications up to 250 amps and is available in 600VAC configurations. These breakers are installed in industrial manufacturing plants, commercial office buildings, healthcare facilities, utility distribution systems, HVAC applications, and motor control centers. Because they combine compact dimensions with strong electrical performance, they’re selected for retrofit projects where panel space is limited.

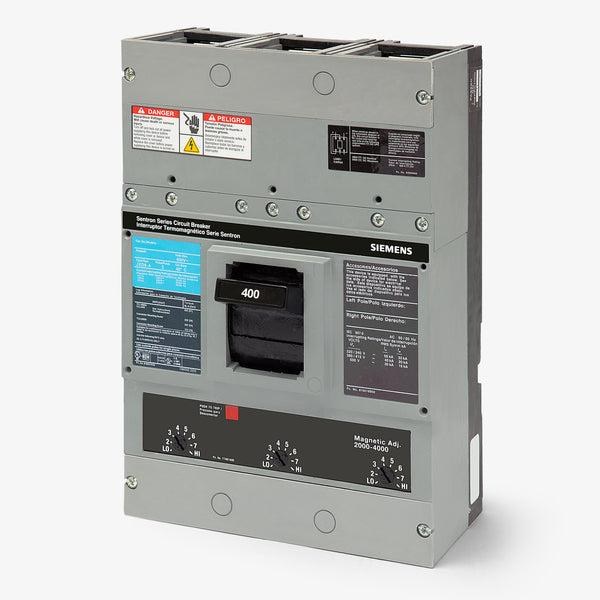

siemens_sentron_jd_frame
No Caption

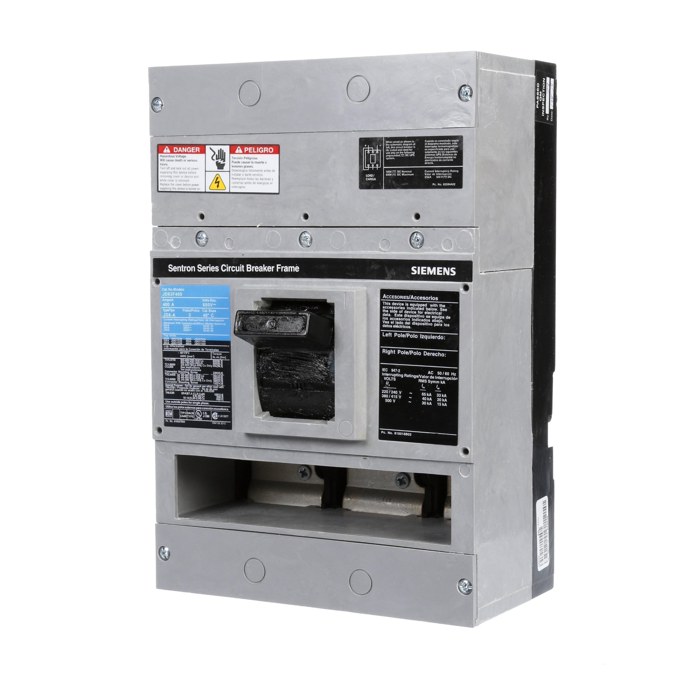

siemens_sentron_jd_frame
No Caption

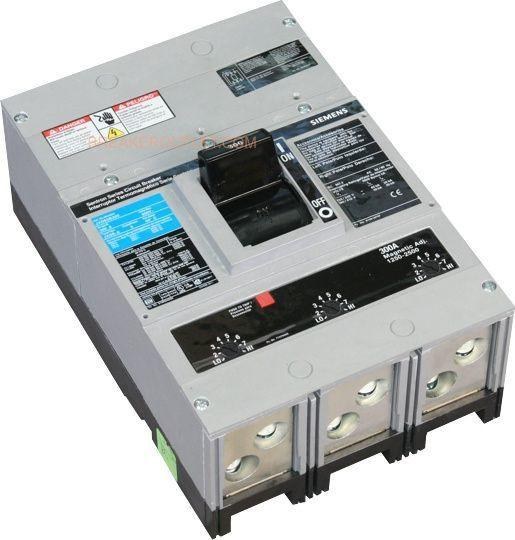

siemens_sentron_jd_frame
No Caption

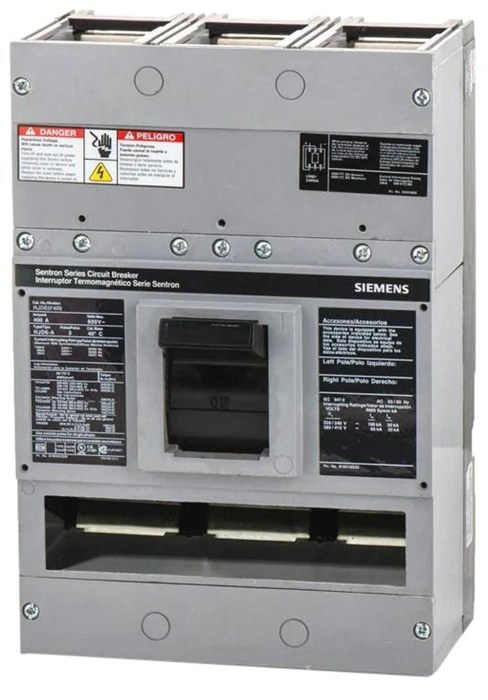

siemens_sentron_jd_frame
No Caption

Compact dimensions, high interrupting capacity

Accessory options customize protection and monitoring functions.

Why Contractors Choose Siemens Sentron JD Frame Breakers

One reason contractors and facility managers use Siemens Sentron molded case circuit breakers is consistency across installations. Siemens has maintained strong compatibility and product continuity across generations of electrical equipment. That consistency is valuable when maintaining older switchboards or expanding existing electrical distribution systems.

When you install a Siemens JD breaker, you’re getting reliable thermal magnetic protection, compact installation dimensions, and high interrupting capacity in a design that’s proven in thousands of industrial applications. These breakers have many accessory options, helping engineers customize protection and monitoring functions.

FeatureTypical JD Frame Spec
Breaker TypeMolded Case Circuit Breaker
Frame SeriesSiemens Sentron JD Frame
Current RangeUp to 250 Amps
Voltage RatingUp to 600VAC
Trip TypeThermal Magnetic
Mounting StylePanelboard/Switchboard
Typical ApplicationsIndustrial & Commercial Distribution
Interrupting CapacityVaries by Catalog Number

Feeder breakers inside switchboards, branch protection

maximize panel space while maintaining reliable protection

Common Applications for Siemens JD Frame Breakers

You’ll often see Siemens JD Frame breakers used as feeder breakers inside switchboards or as branch protection for large loads. Their compact size makes them good for retrofit projects where existing equipment has limited space.

Industrial Power Distribution
Manufacturing plants rely on Siemens Sentron circuit breakers because they handle demanding operating conditions while maintaining consistent trip performance. In facilities with heavy machinery, conveyors, compressors, and process equipment, reliable circuit protection keeps operations running safely.

Motor Protection
Industrial motors need dependable short circuit and overload protection. JD Frames are used in motor control systems because they coordinate nicely with industrial electrical designs and help protect expensive rotating equipment from electrical faults.

Commercial Electrical Systems
Office buildings, hospitals, schools, and retail facilities use Siemens molded case circuit breakers inside distribution panels and switchboards. Their compact design lets contractors maximize panel space while maintaining reliable protection for lighting, HVAC systems, and branch circuits.

Compact Trip Unit, Accessory Options

provide overload and instantaneous short circuit protection.

Key Features of Siemens Sentron JD Frame Breakers

Several features make the JD Frame popular among engineers and contractors.

Compact Footprint: Space inside electrical equipment is always valuable. JD Frames deliver strong protection while minimizing panel space requirements. This becomes especially important in retrofit projects where replacing an entire switchboard may not be practical.
High Interrupting Ratings: Electrical systems with higher available fault current require breakers with sufficient interrupting capacity. Many Siemens JD breakers are designed to meet demanding fault current requirements found in industrial power distribution systems.

Thermal Magnetic Trip Units: These breakers use thermal magnetic trip unit technology to provide overload and instantaneous short circuit protection. The thermal portion responds to sustained overcurrent conditions, while the magnetic trip reacts quickly during fault events.

Accessory Options: JD Frame breakers can be configured with auxiliary switches, shunt trips, undervoltage releases, bell alarms, and mechanical interlocks. These accessory options improve operational flexibility and help facility personnel monitor breaker status more effectively.

Part Number Frame Amps Poles Voltage Trip Type Breaker Type
JD63B250 JD250A3600VThermal MagneticMolded Case Circuit Breaker
JD63B225 JD225A3600VThermal MagneticMolded Case Circuit Breaker
JD63B200JD200A3600VThermal MagneticMolded Case Circuit Breaker
JD63B175JD175A3600VThermal MagneticMolded Case Circuit Breaker
JD63B150JD150A3600VThermal MagneticMolded Case Circuit Breaker
JD63B125JD125A3600VThermal MagneticMolded Case Circuit Breaker
JD63B100JD100A3600VThermal MagneticMolded Case Circuit Breaker

Long service life, consistent performance

extend the life of older electrical systems without requiring a complete equipment replacement.

Benefits of Using Siemens Sentron Breakers

If you’re maintaining older electrical systems, finding dependable replacement breakers matters. Siemens Sentron JD Frame breakers continue to be widely used because they provide several important advantages.

Reliable trip performance helps protect equipment while reducing unexpected outages.
Many facilities continue using Sentron platforms because of their long service life and consistent performance in tough industrial environments. Their compact design simplifies installation in crowded electrical equipment where space is limited.

Another major advantage is long-term compatibility with existing Siemens electrical infrastructure. Many commercial and industrial facilities were originally designed around Sentron breaker systems, making future maintenance and replacement easier. Replacement inventory, surplus equipment, and refurbished units are also commonly available, helping extend the life of older electrical systems without requiring a complete equipment replacement.

Reliability, compact size, interrupting performance

For maintaining legacy equipment or upgrading existing infrastructure.

Final Thoughts on Siemens Sentron JD Frame Breakers

Need compact, industrial-grade circuit protection? Siemens Sentron JD Frame breakers remain a dependable option for commercial and industrial electrical systems. Their combination of reliability, compact size, and strong interrupting performance makes them popular in switchboards, panelboards, and motor control applications.

For maintaining legacy equipment or upgrading existing infrastructure, understanding the capabilities of Siemens Sentron circuit breakers helps you reduce downtime, improve safety, and simplify future maintenance.

Frequently Asked Questions

1. What is a Siemens Sentron JD Frame breaker used for?

A Siemens Sentron JD Frame breaker is commonly used for industrial and commercial power distribution, feeder protection, and branch circuit protection.

2. What amp range is available for JD Frame breakers?

Most JD Frame breakers are rated up to 250 amps depending on the specific catalog number.

3. Are Siemens JD breakers thermal magnetic?

Yes. Most standard JD Frame breakers use thermal magnetic trip protection.

4. Can Siemens JD breakers be used in switchboards?

Yes. They’re commonly installed in switchboards, panelboards, and motor control centers.

5. What voltage are Siemens JD breakers rated for?

Many JD Frame breakers are rated up to 600VAC.

6. Are replacement Siemens Sentron breakers still available?

Yes. Many new, surplus, and refurbished Siemens Sentron molded case circuit breakers are still available through electrical equipment suppliers.

7. Why are Siemens Sentron breakers popular in industrial applications?

They’re known for dependable performance, compact size, strong interrupting ratings, and long-term reliability.
