Siemens Sentron Circuit Breakers for MCC, Switchboards, Panelboards
You can’t afford to take chances when it comes to safety in an electrical distribution system. Your breakers should work when needed, whether you’re an end user responsible for uptime or a contractor installing new equipment.
That’s why Siemens Sentron circuit breakers are still a reliable option in both commercial and industrial settings. You’ll typically find them installed in motor control centers, switchboards, and panelboards. Once you’ve worked with them, you’ll see they’re designed for real-world applications — not just spec sheets.
Key Topics: Siemens Sentron circuit breakers, Siemens molded case circuit breakers, Sentron breaker specifications, Siemens 3VA and 3VL circuit breakers, industrial circuit breaker solutions

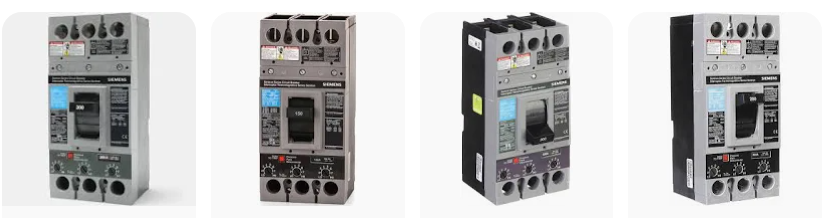

What Are Siemens Sentron Circuit Breakers?
A complete range of Siemens molded case circuit breakers, the Sentron circuit breaker family is intended for low-voltage power distribution systems. When unsafe conditions appear, these breakers are designed to stop current flow quickly, helping protect your equipment, prevent damage, and support safe operation.
In daily work, this means you depend on them to react without hesitation to overloads and short circuits. These breakers provide needed protection in situations where failure isn’t an option, whether you’re building a new system or maintaining an older one.
They’re often seen in commercial buildings, manufacturing facilities, UL 891 switchboards, and data center settings where power stability is crucial.

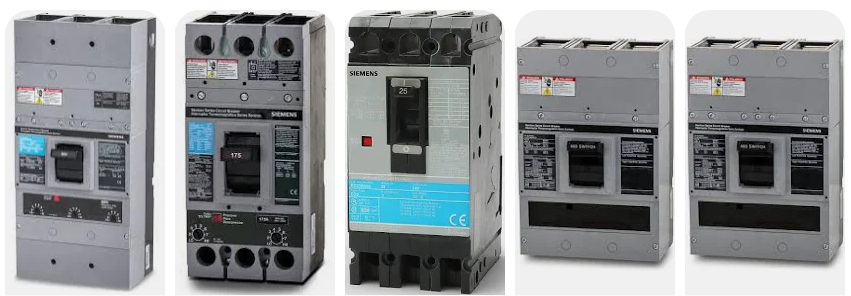

Why Siemens Molded Case Circuit Breakers Matter
When you’re working with Siemens molded case circuit breakers, you’re dealing with one of the most important components in any electrical distribution system. These breakers aren’t just there for compliance — they’re there to protect everything downstream.
With the Sentron breaker family, you’re getting equipment designed around safety, reliability, and performance. Many Sentron breakers are built around UL 489 requirements for molded case circuit breakers used in North American installations. But beyond compliance, what really matters is performance. You need a breaker that can react quickly when a fault occurs, isolate the issue, and help prevent a small problem from becoming a costly outage.
Sentron circuit breakers are designed for a wide range of applications, covering amperage ranges from approximately 15 amps up to 1600 amps depending on the frame. That flexibility allows you to standardize your approach across multiple projects, whether you’re working on a smaller commercial panel or a large industrial switchboard.

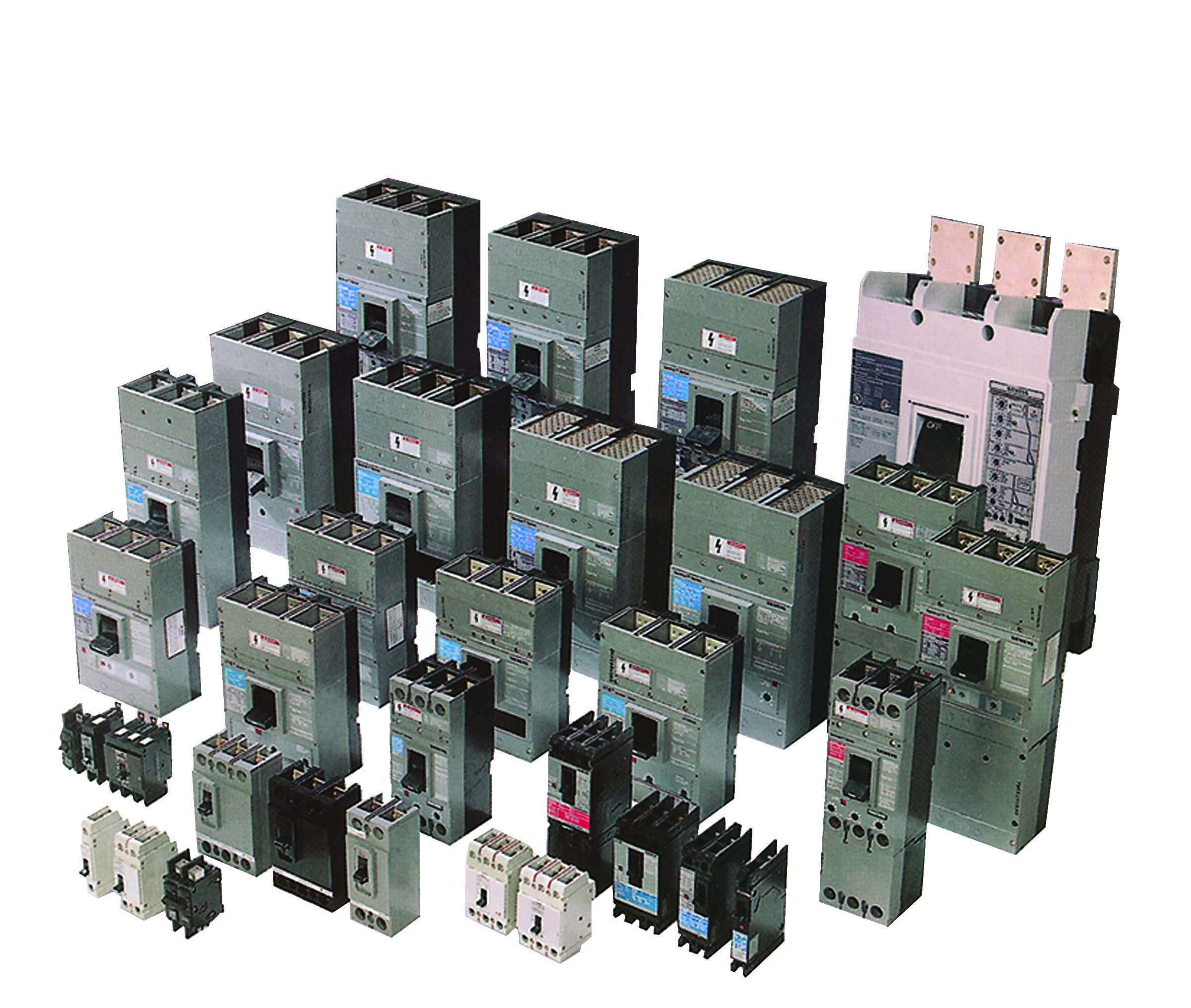

Sentron Breaker Specifications and Features
A major advantage of Sentron breaker specifications and features is platform versatility. These breakers are made to be configured around the needs of your system instead of forcing you into a fixed setup.
Siemens Sentron breakers can be used in many low-voltage distribution systems because most are rated for voltages up to 600 volts. They also offer strong interrupting ratings, giving you confidence in demanding environments where available fault current can be high.
Another key advantage is the availability of thermal-magnetic and electronic trip units. If you’re working on a straightforward installation, thermal-magnetic trip protection gives you a simple, proven solution. If your application requires more precision, electronic trip units give you adjustable settings so you can fine-tune protection levels based on the system.
Sentron breakers can also support accessories such as shunt trips, auxiliary switches, and rotary handles. That makes them easier to integrate into your design without making the system more complicated.
Siemens 3VA and 3VL Circuit Breakers
Knowing the difference between Siemens 3VA and 3VL circuit breakers can help you avoid compatibility issues and save time when specifying replacements or new equipment.
The Siemens 3VA circuit breaker platform represents Siemens’ newer approach to breaker design. It offers strong modularity, compact sizing, and electronic trip capabilities. If you’re developing a system from scratch or working on a new installation, the 3VA range gives you flexibility and future-ready performance.
The Siemens 3VL circuit breaker line is a legacy platform that still plays a major role in existing systems. These breakers have been widely installed for years, so they’re often the go-to choice for maintenance and retrofit applications. If you’re replacing or upgrading equipment in an older system, you may encounter 3VL breakers — and having access to compatible replacements is critical.
Siemens Sentron Breaker Selection Table With Cut Sheet Links
Use this table to quickly identify common Siemens Sentron breaker options. Each cut sheet link uses the series and frame type as linked text.
| Series | Frame Type | Amp Range | Voltage | Key Features | Cut Sheet |
|---|---|---|---|---|---|
| 3VA | Compact MCCB | 15–600A | Up to 600V | Modular design, electronic trip options | 3VA Compact MCCB |
| 3VL | Standard MCCB | 16–1600A | Up to 600V | Proven platform, high interrupting ratings | 3VL Standard MCCB |
| NXD | Heavy-Duty Frame | Up to 1200A | 600V | Rugged design for industrial environments | NXD Heavy-Duty Frame |
| SND | Electronic Trip Frame | Up to 1200A | 600V | Advanced LIG protection and monitoring | SND Electronic Trip Frame |
Industrial Circuit Breaker Solutions from Siemens
Industrial circuit breaker solutions from Siemens provide consistency across many applications. You can count on the Sentron family to meet a variety of requirements rather than managing a different breaker platform for every project.
UL 891 switchboards, motor control centers, panelboards, and backup power systems commonly use these breakers. They’re also found in data centers, where power distribution needs keep growing. Their long-term dependability — not just their effectiveness on paper — is what makes them important in these settings.
Why Contractors and End Users Choose Siemens Sentron
When you’re choosing breakers, you’re not just looking at specs. You’re thinking about performance in the field. You need something that installs cleanly, works reliably, and doesn’t create problems later.
That’s where Siemens Sentron circuit breakers stand out. They offer dependable protection, strong replacement availability, and enough flexibility to handle both new installations and retrofit work. For contractors, that means fewer headaches during installation. For end users, it means greater confidence that your system will keep running when it matters most.
FAQ — Siemens Sentron Circuit Breakers
What are Siemens Sentron circuit breakers used for?
They protect electrical systems from overloads, short circuits, and faults in industrial and commercial applications.
What’s the difference between 3VA and 3VL breakers?
The 3VA series is newer and more modular, while the 3VL series is a legacy platform commonly used in existing systems.
Are Siemens Sentron breakers UL listed?
Many Sentron molded case breakers are designed around UL 489 standards for molded case circuit breakers.
What amp ranges are available?
Depending on the frame, Siemens Sentron breakers commonly cover ranges from about 15 amps up to 1600 amps.
Can Sentron breakers be used for retrofit applications?
Yes. The 3VL series is especially common in existing systems and retrofit applications.
Do Sentron breakers support electronic trip units?
Yes. Newer models can include adjustable electronic trip units for more precise protection.
Where are these breakers most commonly installed?
You’ll typically find them in switchboards, panelboards, MCCs, and industrial power distribution systems.
Glossary of Terms
Siemens Sentron Circuit Breakers — A breaker family designed for industrial and commercial power protection.
Siemens Molded Case Circuit Breakers — Breakers enclosed in molded insulation and used for electrical system protection.
Sentron Breaker Specifications — Key performance details such as amp rating, voltage, frame type, and trip unit.
Siemens 3VA Circuit Breakers — A newer Siemens molded case breaker platform with compact sizing and modular options.
Siemens 3VL Circuit Breakers — A legacy Siemens breaker platform commonly found in existing installations.
Industrial Circuit Breaker Solutions — Breaker applications designed for heavy-duty commercial and industrial environments.
Interrupting Rating — The maximum fault current a breaker can safely interrupt.
Thermal-Magnetic Trip Unit — A trip mechanism using heat for overload protection and magnetic force for short-circuit protection.
Electronic Trip Unit — An adjustable trip system used for more precise circuit breaker protection.
Final Takeaway
At the end of the day, you don’t just need a breaker — you need a solution you can trust. With Siemens Sentron circuit breakers, you’re getting a platform that delivers reliable protection, flexible configuration, and proven performance across many applications.
When your protection system is solid, everything else becomes a lot easier.
