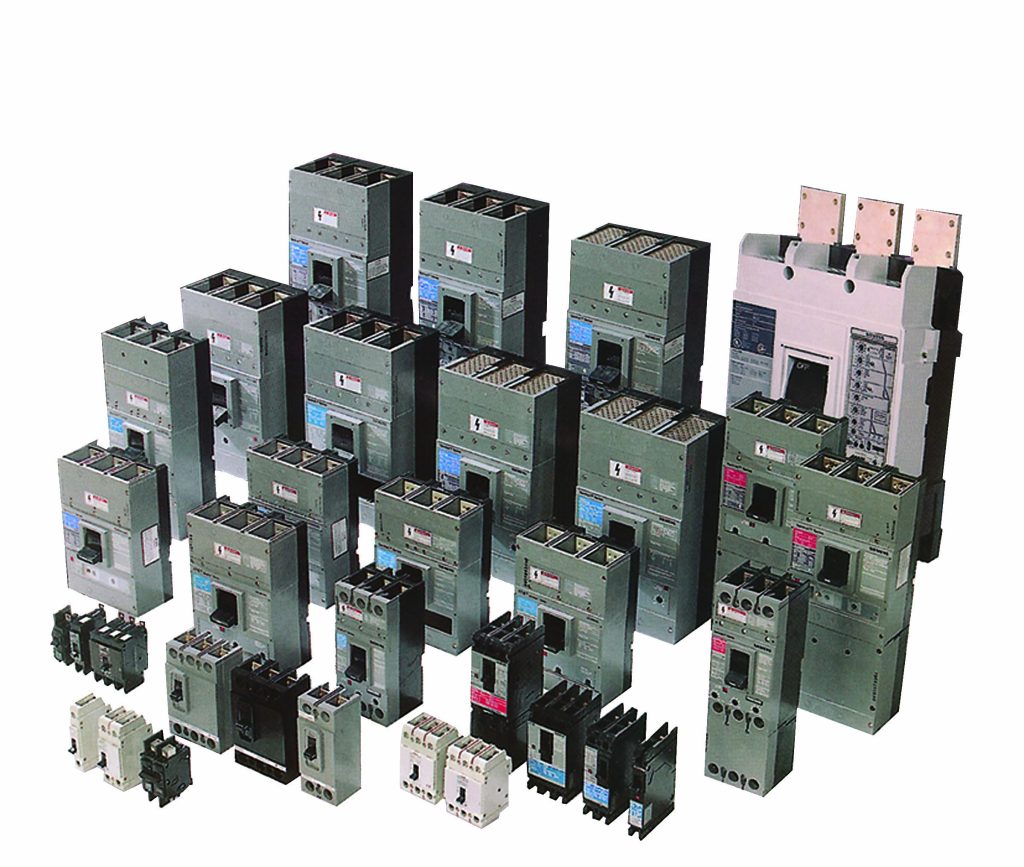

Siemens Sentron FD Breaker protection for larger Siemens Sentron power distribution systems.
Need Siemens FD Breakers?
Get Molded Case Quote- What Is a Siemens Sentron FD Frame Breaker?
- Siemens FD Frame Breaker Specifications
- Siemens FD Frame vs ED Frame: Key Differences
- Siemens FD Breaker Adjustable Trip Features
- Siemens Feeder Circuit Breaker Applications
- Integration into UL-891 Switchboards
- Siemens FD Frame Distribution Circuit Breaker Benefits
- Popular Siemens FD Frame Models
- FAQ
- Glossary of Terms
What Is a Siemens Sentron FD Frame Breaker?
Feeder-level protection for larger electrical distribution loads.
The Siemens Sentron FD Frame breaker is a must if you want to go beyond simple branch circuit protection and into real power distribution. You’re now safeguarding more than one load. You’re supplying full portions of your electrical system, including panels and motor control centers. The Siemens molded case circuit breaker sits above the ED frame and is made specifically for feeder-level protection. Instead of protecting a branch circuit like lighting or receptacles, FD frame breakers protect circuits that supply multiple downstream loads. That could be a panelboard, an MCC, or a major piece of equipment.
You’re not just protecting circuits anymore — you’re managing an entire distribution system.
Siemens FD Frame Breaker Specifications
When you’re working with a Siemens 250A circuit breaker, you need to understand that FD frame breakers are built for higher capacity and more demanding applications. This range gives you flexibility across many feeder applications. You’re not limited to small loads.
| Specification | FD Frame Details | Why It Matters |
| Amp Range | 60A to 250A | Supports feeder and distribution circuits |
| Voltage Rating | Up to 600V AC | Fits many commercial and industrial systems |
| Interrupting Capacity | High fault current capable | Helps protect larger electrical systems |
| Trip Unit Type | Thermal magnetic, some adjustable | Supports better system coordination |
| Frame Type | Molded Case Circuit Breaker | Common MCCB format for feeder protection |
| Mounting | Panelboards, switchboards, MCCs | Works across major distribution equipment |
Siemens FD Frame vs ED Frame: Key Differences
FD breakers protect larger upstream feeder circuits.
You might already be familiar with SIEMENS ED breakers. But once you step into FD, you’re working at a different level of distribution. ED breakers sit at the edge of your system. FD breakers sit upstream, feeding entire sections. That means failure or miscoordination at the FD level has a much bigger impact.
| Feature | ED Frame | FD Frame |
| Max Amps | 125A | 250A |
| Application | Branch circuits | Feeder circuits |
| Trip Units | Fixed | Adjustable options |
| System Role | End-use protection | Upstream distribution |
Siemens FD Breaker Adjustable Trip Features
One of the biggest upgrades you get with FD frame breakers is flexibility. The breaker trip unit capability lets you fine-tune protection settings to match your system. Instead of a fixed trip curve, you can adjust how the breaker responds to faults, particularly instantaneous trips. That matters when you’re trying to coordinate multiple breakers in a system.
- You reduce nuisance tripping.
- You improve system uptime.
- You protect equipment more effectively.
Siemens Feeder Circuit Breaker Applications
The Siemens feeder circuit breaker design makes FD frame breakers useful for a wide range of applications. You’ll see them used in panelboard feeders, motor control centers, HVAC distribution systems, industrial manufacturing equipment, and commercial building distribution. In each of these cases, you’re not just protecting one load. You’re protecting everything downstream. That’s why sizing, coordination, and reliability matter more here.
Integration into UL-891 Switchboards
FD frame breakers are a natural fit inside UL 891 switchboards, where they are feeder breakers distributing power throughout the system. If you’re designing or installing switchboards, you’re likely using FD breakers to divide power into usable sections.
These breakers are often integrated into custom-built switchboards for industrial facilities and data centers. In those environments, you can’t afford poor coordination or unreliable protection. With growing demand from AI and data center infrastructure, feeder breakers like FD frames are doing more work than ever.
Siemens FD Frame Distribution Circuit Breaker Benefits
When you step up to a Siemens distribution circuit breaker, you’re getting more than just higher ampacity. You’re getting greater system flexibility, improved coordination between breakers, higher fault current handling capability, and scalability for future expansion. This is especially important if you’re building systems that grow over time. You don’t want to redesign your entire distribution system just because loads increase.
Popular Siemens FD Frame Models
| Model | Amp Rating | Typical Application |
| FD63 | 60A | Small feeder circuits |
| FD100 | 100A | Panelboard feeders |
| FD150 | 150A | Commercial loads |
| FD200 | 200A | Industrial distribution |
| FD250 | 250A | Main feeder protection |
Choosing the right model depends on your load requirements and system design. If you’re working with larger loads and more complex systems, the Siemens Sentron FD Frame breaker gives you the control and reliability you need.
FAQ
What is a Siemens FD frame breaker used for?
It’s used for feeder circuits that supply power to multiple downstream loads.
What is the maximum amp rating for FD frame breakers?
FD frame breakers are typically rated up to 250 amps.
What’s the difference between ED and FD breakers?
ED breakers protect branch circuits, while FD breakers protect feeder circuits.
Are Siemens FD breakers adjustable?
Yes, many FD breakers offer adjustable trip settings.
Where are FD breakers installed?
They are commonly installed in panelboards, MCCs, and switchboards.
Do FD breakers support selective coordination?
Yes, adjustable trip features allow better coordination.
Are FD breakers used in industrial applications?
Yes, they are widely used in industrial and commercial systems.
Glossary of Terms
- Siemens Sentron FD Frame breaker: A molded case breaker used for feeder-level protection in Siemens Sentron systems.
- Siemens FD molded case circuit breaker: A breaker designed for higher current applications and feeder protection.
- Siemens 250A circuit breaker: An FD frame breaker size commonly used for larger feeder protection.
- Siemens FD breaker adjustable trip: A trip feature that lets you fine-tune protection settings for better coordination.
- Siemens feeder circuit breaker: A breaker used to protect circuits supplying multiple downstream loads.
- Siemens distribution circuit breaker: A breaker used in upstream power distribution systems.
- Feeder Circuit: A circuit that supplies power to multiple downstream loads.
- Selective Coordination: Ensuring only the nearest breaker trips during a fault condition.
- Interrupting Rating: The maximum fault current a breaker can safely interrupt.
Takeaway
If you’re working with larger loads and more complex systems, the Siemens Sentron FD Frame breaker gives you the control and reliability you need. You’re not just protecting circuits anymore — you’re managing an entire distribution system. And when that system matters, the FD frame is where you want to be.
