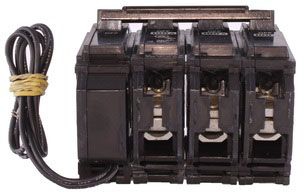

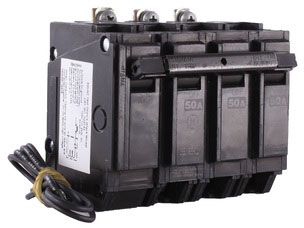

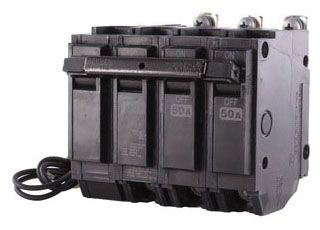

THQB32050ST1 General Electric / GE Miniature Circuit Breakers

Item # THQB32050ST1

THQB32050ST1
  • THQB32050ST1
  • THQB32050ST1
  • THQB32050ST1
  • THQB32050ST1
  • THQB32050ST1
  • THQB32050ST1

NOTE: Images are for Reference Only

Product Specifications

Type
THQB
Amperage
50
Poles
3
Voltage
240
Short Circ Int Cap
10kA@208V
Mounting Type
Bolt-On
Accessories
120V Shunt Trip
Features
LI Trip Functions

THQB32050ST1 Description

General Electric, Miniature, Circuit Breakers, Type THQB, 50A, 3P, 240 VAC, Bolt-On, Load Side Lug Terminals, Thermal Magnetic, Interrupting Current; 10 kA at 208 VAC, UL listed, 120V Shunt Trip, Long-Time & Instantaneous (LI) Trip Functions Miniature Circuit Breakers from General Electric / GE

Features and Benefits

Features/Benefits:
Q-Line Circuit Breakers are 1-Inch Wide per Pole, Compact, Thermal-Magnetic Devices Designed for Residential and Commercial Applications; The QB Breakers are Bolt-On Versions of the Q-Line Used for Bolting to the Bus Connections of Load Centers and Lighting Panels; All Q-Line Circuit Breakers Feature Quick-Make/Quick-Break Mechanisms, Common Trip Bars and Easy to Spot Trip Indication to Ensure Safety and Reliability
Additional Information:
120 VAC, 50 A, 10 kA Interrupt, 3-Pole, 8 to 3 AWG Aluminum/Copper Load Lug Terminal, 1" Bolt-On Mount, Q-Line Frame, Non-Interchangeable/Internal Common Trip, Compact, Fixed Thermal Magnetic, Miniature Molded Case Circuit Breaker with Factory Installed 120 VAC Shunt Trip
