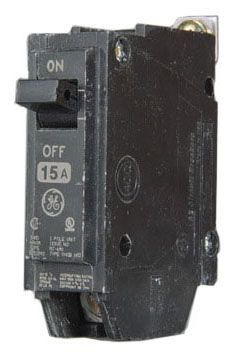

THHQB1115AF General Electric / GE Miniature Circuit Breakers

Item # THHQB1115AF

NOTE: Images are for Reference Only

Product Specifications

Type
THHQB
Amperage
15
Poles
1
Voltage
120/240

THHQB1115AF Description

CB-AFCI 1P 22KAIC 120VAC 15A Miniature Circuit Breakers from General Electric / GE

Features and Benefits

Features/Benefits:
Q Line Circuit Breakers are 1 Inch Wide per Pole, Compact, Thermal-Magnetic Devices Designed for Residential and Commercial Application; The QL Breakers are Plug-In Versions of the Q Line Used for Connection to Load Centers and Lighting Panels; All Q Line Circuit Breakers Feature Quick-Make/Quick-Break Mechanisms, Common Trip Bars and Easy to Spot Trip Indication to Ensure Safety and Reliability; Circuit Breaker Applied at Intermediate Values of Circuit Voltage Provided Fault Current at Load Terminals of the Breaker Does not Exceed the Value for the Higher Value of Voltage; Suitable for Reverse Feed
Additional Information:
120/240 VAC, 15 A, 22 kA, 1-Pole, Copper/Aluminum Load Lug Terminal, Q-Line Frame, LI Trip Function, 1" Bolt-On Mount, Molded Case, Fixed Thermal Magnetic, Compact, Non-Interchangeable Trip, Arc Fault Circuit Interrupter, Miniature Circuit Breaker
