THED136100WL General Electric / GE Molded Case Circuit Breakers

Item # THED136100WL

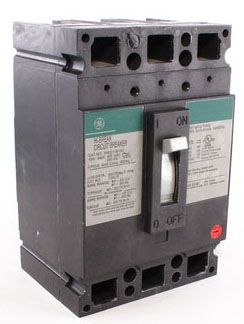

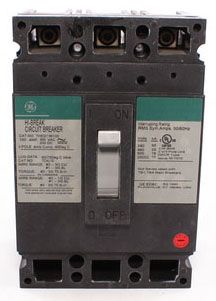

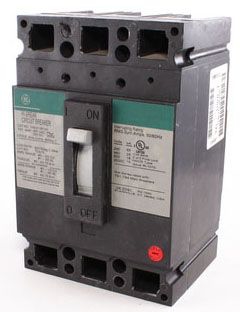

NOTE: Images are for Reference Only

Product Specifications

Type
THED
Amperage
100
Poles
3
Voltage
600

THED136100WL Description

3 POLE 600VAC 100A BREAKERS Molded Case Circuit Breakers from General Electric / GE

Features and Benefits

Features/Benefits:
The E150 Product Line Consists of Thermal Magnetic Circuit Breakers, Magnetic Circuit Breakers and Molded-Case Switches Rated up to 150 Amps and 600 Volts AC; Catalog Numbers Include the Complete Breaker or Switch; The WL Catalog Number Suffix Indicates that the Devices Come with Cu/Al Line and Load Lugs; All THED Breakers Suitable for Reverse Feed
Additional Information:
600 VAC, 100 A, 65 kA Interrupt, 3-Pole, Aluminum/Copper Line/Load Lug Terminal, E150-Frame, Non-Interchangeable Trip, Core E/High Tier, Thermal Magnetic, Industrial Molded Case Circuit Breaker
