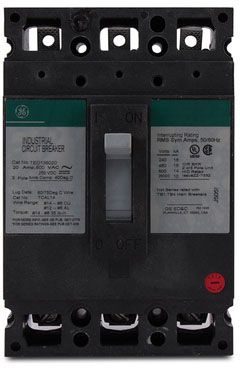

THED136050 General Electric / GE Molded Case Circuit Breakers
Item # THED136050

THED136050

NOTE: Images are for Reference Only

Product Details and Specifications

Type THED
Amperage 50
Poles 3
Voltage 600

THED136050 Description

MOLDED CASE, THERMAL MAGNETIC TYPE; 4 1/8 INCH W X 3 3/8 INCH D X 6 5/16 INCH H SIZE; 600 V MAX. AC VOLTAGE RATING; 500 V MAX. DC VOLTAGE RATING; 240/480/600 VAC, 500 VDC VOLTAGE RATING; 65 KILOAMPERE AT 240 VAC, 25 KILOAMPERE AT 480 VAC, 18 KILOAMPERE AT 600 VAC, 10 KILOAMPERE AT 500 VDC INTERRUPTING RATING; 50 AMPERE CURRENT RATING; 3 POLE(S); ALUMINUM/COPPER LOAD LUG TERMINAL TYPE; E FRAME TYPE; THED MODEL Molded Case Circuit Breakers from General Electric / GE

Relectric Recommends RE-Certified Plus

RE-Certified

Re-Certified products have been previously energized and have undergone a detailed 12-point quality inspection and testing process to ensure the electrical, mechanical, and electromechanical components are functioning properly. RE-Certified products are are suitable for use as field replacements, retrofits, upgrades, and expansions. We test each of our RE-Certified products to industry standards and certify them to be operational when installed. RE-Certified products come with a Full 1-Year No-Hassle Warranty.

RE-Certified Plus

RE-Certified Plus products include additional quality control checks. RE-Certified Plus products are tested to NETA Specifications and have Restorative Screening performed. RE-Certified Plus products have a 100% Money Back Guarantee. RE-Certified Plus products have a Full 2-Year No-Hassle Warranty.

NETA Testing

Relectric offers NETA testing on all products. Testing performed by RESA Power Service, a NETA Accredited Company. NETA testing fees vary by product.

Buy Now

$395.00

Call for availability

$513.50

Call for availability

$750.00

Call for availability

Request A Quote

Do you need a quote for this or a similar product? Do you have a question or need more detail about this product?
Request Quote or Information

Extended Details

600 VAC, 50 A, 65 kA Interrupt, 3-Pole, Aluminum/Copper Load Lug Terminal, E150-Frame, Non-Interchangeable Trip, Core E/High Tier, Thermal Magnetic, Industrial Molded Case Circuit Breaker
Thermal Magnetic
3
600 Volt AC
50 Amp
Copper/Aluminum Line and Load Lug

Features and Benefits

The E150 Product Line Consists of Thermal Magnetic Circuit Breakers, Magnetic Circuit Breakers and Molded-Case Switches Rated up to 150 Amps and 600 Volts AC; Catalog Numbers Include the Complete Breaker or Switch; All THED Breakers Suitable for Reverse Feed

Ask an expert

Ask An Expert

Our experts can help.

800.497.6255

Email

Summary

The THED136050 General Electric / GE Molded Case from Relectric

Relectric stocks new and used THED136050 General Electric / GE Molded Case and many more brand-name electrical supplies. All of our reconditioned THED136050 General Electric / GE Molded Case have been professionally tested and certified, and we guarantee their performance. You can also order your THED136050 General Electric / GE Molded Case configured to your specifications. Relectric also carries a large stock of replacement parts for the THED136050 General Electric / GE Molded Case. Contact one of our sales consultants today.
