THED124045 General Electric / GE Molded Case Circuit Breakers
Item # THED124045

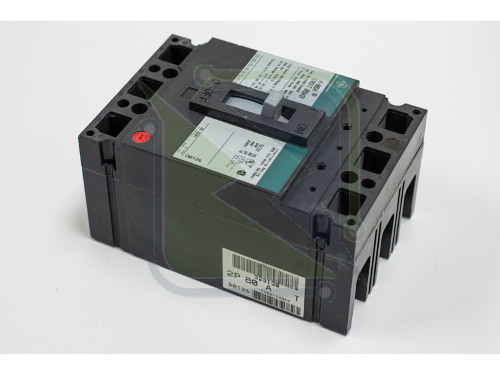

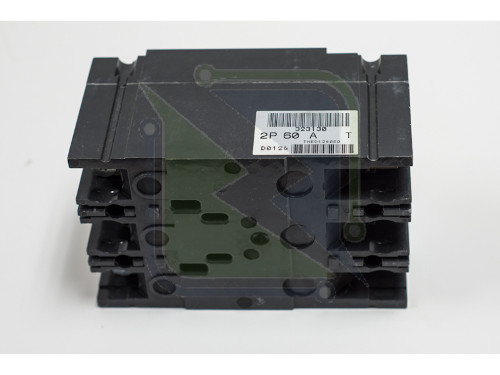

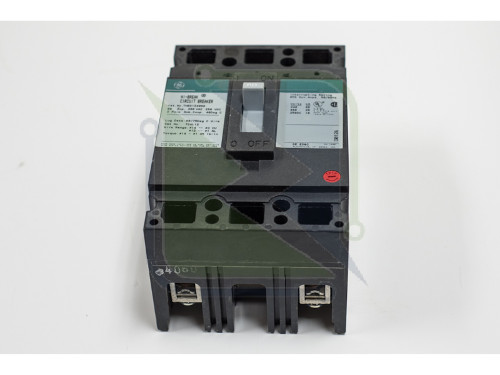

NOTE: Images are for Reference Only

Product Details and Specifications

Type THED
Amperage 45
Poles 2
Voltage 480

THED124045 Description

E FRAME CIRCUIT BREAKER FRAME Molded Case Circuit Breakers from General Electric / GE

Relectric Recommends RE-Certified Plus

RE-Certified

Re-Certified products have been previously energized and have undergone a detailed 12-point quality inspection and testing process to ensure the electrical, mechanical, and electromechanical components are functioning properly. RE-Certified products are are suitable for use as field replacements, retrofits, upgrades, and expansions. We test each of our RE-Certified products to industry standards and certify them to be operational when installed. RE-Certified products come with a Full 1-Year No-Hassle Warranty.

RE-Certified Plus

RE-Certified Plus products include additional quality control checks. RE-Certified Plus products are tested to NETA Specifications and have Restorative Screening performed. RE-Certified Plus products have a 100% Money Back Guarantee. RE-Certified Plus products have a Full 2-Year No-Hassle Warranty.

NETA Testing

Relectric offers NETA testing on all products. Testing performed by RESA Power Service, a NETA Accredited Company. NETA testing fees vary by product.

Buy Now

$158.00

Out of stock

$174.00

Out of stock

Call For Best Price

Out of stock

Request A Quote

Do you need a quote for this or a similar product? Do you have a question or need more detail about this product?
Request Quote or Information

Extended Details

Non-Interchangeable Circuit Breaker; Type Molded Case, Fixed Thermal Magnetic; Frame Type THED; Voltage Rating 240/480 Volt AC, 250 Volt DC; Maximum AC Voltage Rating 480 Volt; Maximum DC Voltage Rating 250 Volt; Current Rating 45 Amp; Number of Poles 2; Interrupting Rating 65 Kiloamp at 240 Volt AC, 25 Kiloamp at 480 Volt AC, 10 Kiloamp at 250 Volt DC; Terminal Type Copper/Aluminum Load Lug; Size 4-1/8 Inch Width x 3-3/8 Inch Depth x 6-5/16 Inch Height; Approval UL, CUL; Includes Core E/High Tier; Application Heating, Air Conditioning, Refrigeration
Molded Case, Fixed Thermal Magnetic
THED
240/480 Volt AC, 250 Volt DC
480 Volt
250 Volt

Features and Benefits

Circuit Breaker Applied at Intermediate Values of Circuit Voltage Provided Fault Current at Load Terminals of the Breaker Does Not Exceed the Value for the Higher Value of Voltage; Suitable for Reverse Feed
Includes Core E/High Tier; Application Heating, Air Conditioning, Refrigeration

Ask an expert

Ask An Expert

Our experts can help.

800.497.6255

Email

Summary

The THED124045 General Electric / GE Molded Case from Relectric

Relectric stocks new and used THED124045 General Electric / GE Molded Case and many more brand-name electrical supplies. All of our reconditioned THED124045 General Electric / GE Molded Case have been professionally tested and certified, and we guarantee their performance. You can also order your THED124045 General Electric / GE Molded Case configured to your specifications. Relectric also carries a large stock of replacement parts for the THED124045 General Electric / GE Molded Case. Contact one of our sales consultants today.
