TEYF230 General Electric / GE Molded Case Circuit Breakers

Item # TEYF230

TEYF230

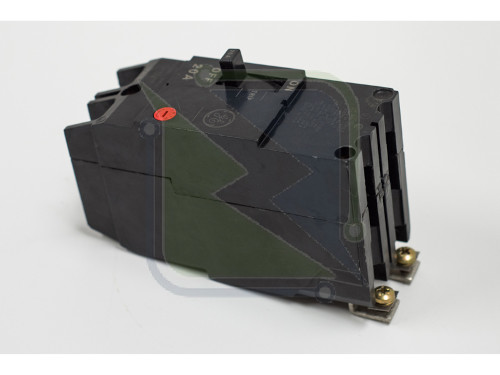

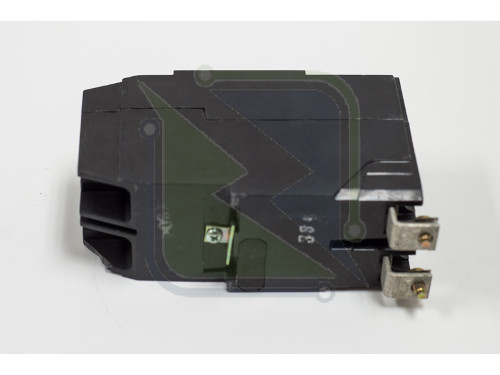

NOTE: Images are for Reference Only

Product Specifications

Type
TEYF
Amperage
30
Poles
2
Voltage
480/277
Short Circ Int Cap
18kA@480V

TEYF230 Description

Type TEYF; 30A; 2P; 480/277V; 18kA @ 480/277VAC; Molded Case, Circuit Breakers Molded Case Circuit Breakers from General Electric / GE

Features and Benefits

Features/Benefits:
The TEYF is a One-Inch Wide Per Pole, Compact, "Bolt-On" Circuit Breaker for Use on Grounded 480Y/277 Vac Systems; The Bolt-On Mounting Base Accessory Makes the TEYF Suitable for Varied Applications as a Lug-Lug Breaker; All TEYF Circuit Breakers Feature Quick-Make/Quick-Break Mechanisms, Common Trip Bars and Easy to Spot Trip Indication to Ensure Safety and Reliability
Additional Information:
120/240/277/480 VAC, 250 VDC, 30 A, 65 kA, 2-Pole, 14 AWG/10 AWG, TEYF Frame, Bolt-On Terminal, Thermal Magnetic, Compact, Non-Interchangeable Circuit Breaker
