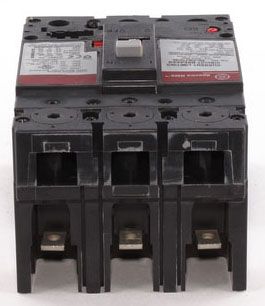

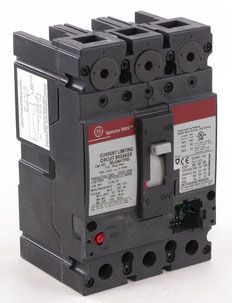

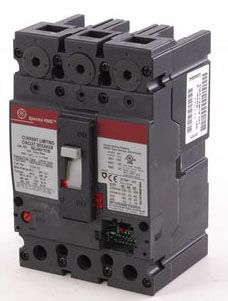

SELA36AT0100 General Electric / GE Molded Case Circuit Breakers
Item # SELA36AT0100

SELA36AT0100
SELA36AT0100
SELA36AT0100
SELA36AT0100
SELA36AT0100
SELA36AT0100

NOTE: Images are for Reference Only

Product Details and Specifications

Type SELA
Amperage 100
Poles 3
Voltage 600
Short Circ Int Cap 65kA@480V
Configuration Bolt-On

SELA36AT0100 Description

General Electric, Molded Case, Circuit Breakers, Type SELA, 100A, 3P, 600 VAC, Bolt-On, Solid State, Interrupting Current: 65 kA at 480 VAC Molded Case Circuit Breakers from General Electric / GE

Relectric Recommends RE-Certified Plus

RE-Certified

Re-Certified products have been previously energized and have undergone a detailed 12-point quality inspection and testing process to ensure the electrical, mechanical, and electromechanical components are functioning properly. RE-Certified products are are suitable for use as field replacements, retrofits, upgrades, and expansions. We test each of our RE-Certified products to industry standards and certify them to be operational when installed. RE-Certified products come with a Full 1-Year No-Hassle Warranty.

RE-Certified Plus

RE-Certified Plus products include additional quality control checks. RE-Certified Plus products are tested to NETA Specifications and have Restorative Screening performed. RE-Certified Plus products have a 100% Money Back Guarantee. RE-Certified Plus products have a Full 2-Year No-Hassle Warranty.

NETA Testing

Relectric offers NETA testing on all products. Testing performed by RESA Power Service, a NETA Accredited Company. NETA testing fees vary by product.

Buy Now

$415.61

48 in stock

$540.29

Call for availability

$697.58

18 in stock

Request A Quote

Do you need a quote for this or a similar product? Do you have a question or need more detail about this product?
Request Quote or Information

Extended Details

600 VAC, 100 A Sensor, 65 kA Interrupt, 3-Pole, 12 to 3/0 AWG Aluminum/Copper, SE150 Frame, Digital, Solid State Electronic/Interchangeable Trip, RMS Trip Unit, LSI Trip Function, Standard Continuous Load, Molded Case Circuit Breaker
Molded Case, Electronic Solid State Trip, Current Limiting
E
600 Volt AC
600 Volt
100 Amp

Features and Benefits

Spectra RMS Molded Case Circuit Breakers (SE150, SF250, SG600 and SK1200) have a Digital, Solid State, RMS Sensing Trip System with Field Installable, Front-Mounted Rating Plugs to Establish or Change the Breaker Ampere Rating; Adjustable Instantaneous with Tracking Short-Time is Standard on All Frames; The Trip System Uses Digital Sampling to Determine the RMS Value of Sinusoidal and Non-Sinusoidal Currents
Trip Function LSI; Wire Size 12 to 3/0 AWG (Copper/Aluminum); Includes Long/Short/Instantaneous Time Trip; Application Heating, Air Conditioning, Refrigeration

Ask an expert

Ask An Expert

Our experts can help.

800.497.6255

Email

Summary

The SELA36AT0100 General Electric / GE Molded Case from Relectric

Relectric stocks new and used SELA36AT0100 General Electric / GE Molded Case and many more brand-name electrical supplies. All of our reconditioned SELA36AT0100 General Electric / GE Molded Case have been professionally tested and certified, and we guarantee their performance. You can also order your SELA36AT0100 General Electric / GE Molded Case configured to your specifications. Relectric also carries a large stock of replacement parts for the SELA36AT0100 General Electric / GE Molded Case. Contact one of our sales consultants today.
