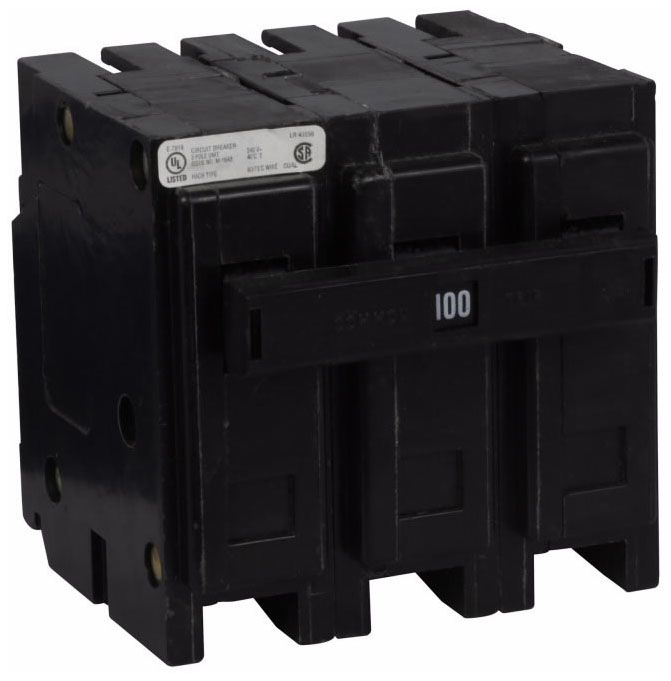

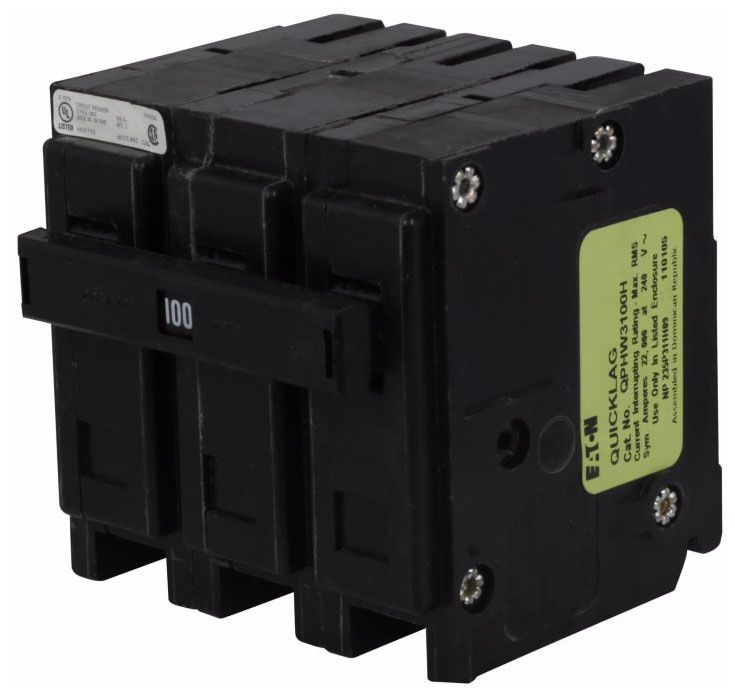

QPHW3100H Eaton / Cutler-Hammer / Westinghouse Miniature Circuit Breakers

Item # QPHW3100H

QPHW3100H
  • QPHW3100H
  • QPHW3100H

NOTE: Images are for Reference Only

Product Specifications

Type
QPHW
Amperage
100
Poles
3
Voltage
240

QPHW3100H Description

QUICKLAG INDUSTRIAL THERMAL-MAGNETIC CIRCUIT BREAKER 3P 100A CB Miniature Circuit Breakers from Eaton / Cutler-Hammer / Westinghouse

Features and Benefits

Additional Information:
Industrial Circuit Breaker; Type Thermal Magnetic, Non-Interchangeable Trip; Number of Poles 3; Voltage Rating 240 Volt AC; Current Rating 100 Amp at 40 Deg C; Interrupting Rating 22000 Amp at 240 Volt AC; Terminal Type Steel Box Lug Standard Load; Wire Size 8 to 1/0 AWG Copper/Aluminum (Standard Load); Mounting Plug-On Female Clip Line; Size 3.8 Inch Width x 3.3 Inch Depth x 4.9 Inch Height; Approval UL 489, CSA; Humidity Rating 0 to 93 Percent (Non-Condensing); Application HACR, 120 Volt AC Switching Duty Fluorescent Light; Applicable Standard Federal Specification W-C-375b 14b
