QPHW3020H Eaton / Cutler-Hammer / Westinghouse Miniature Circuit Breakers

Item # QPHW3020H

QPHW3020H
  • QPHW3020H
  • QPHW3020H

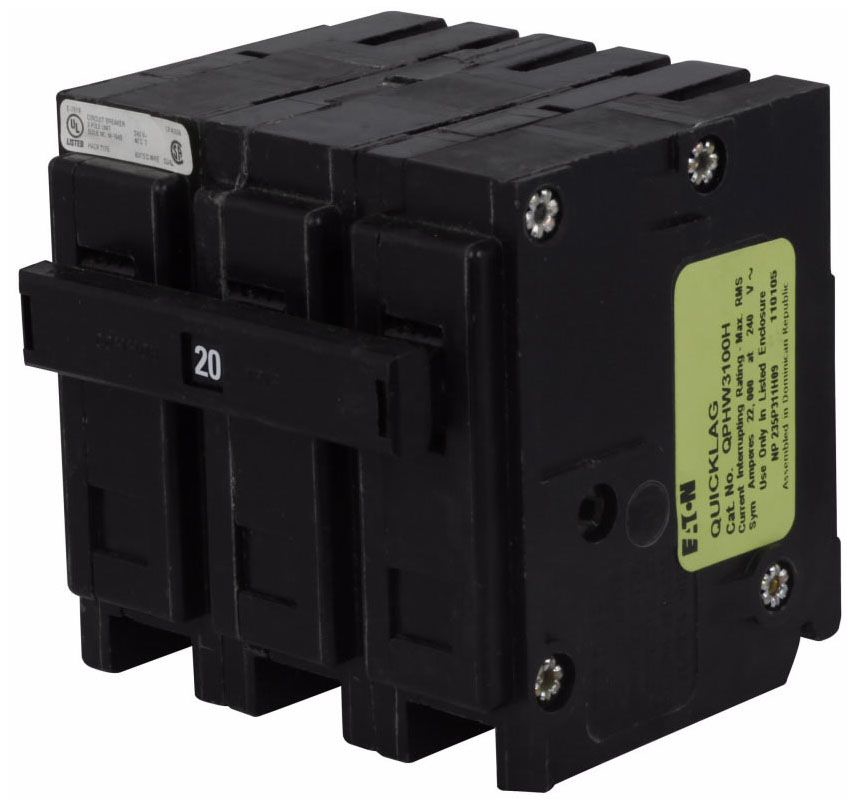

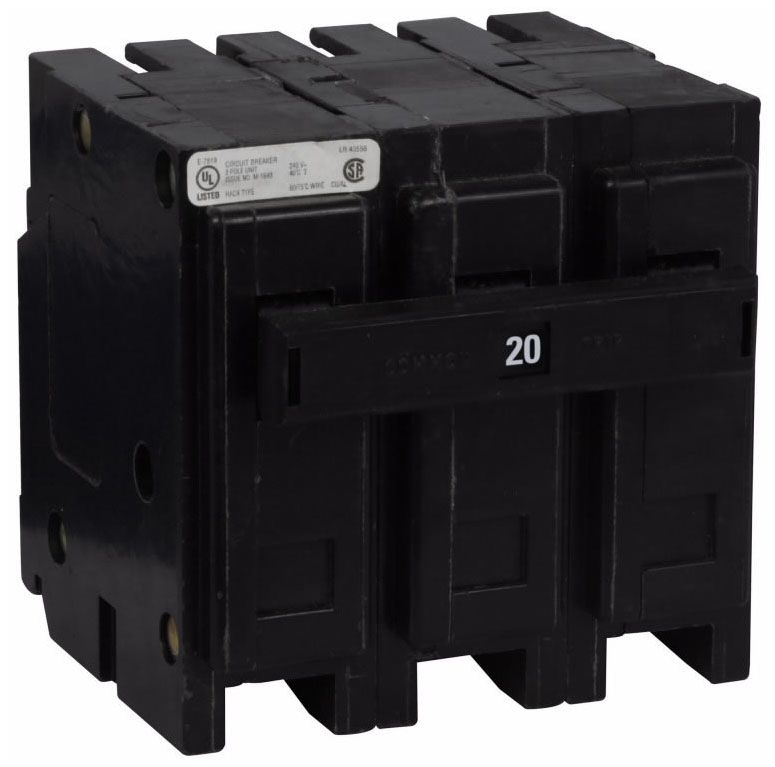

NOTE: Images are for Reference Only

Product Specifications

Type
QPHW
Amperage
20
Poles
3
Voltage
240

QPHW3020H Description

QUICKLAG INDUSTRIAL THERMAL-MAGNETIC CIRCUIT BREAKER 3P 20A CB Miniature Circuit Breakers from Eaton / Cutler-Hammer / Westinghouse

Features and Benefits

Additional Information:
Industrial Circuit Breaker; Type Thermal Magnetic, Non-Interchangeable Trip; Number of Poles 3; Voltage Rating 240 Volt AC; Current Rating 20 Amp at 40 Deg C; Interrupting Rating 22000 Amp at 240 Volt AC; Terminal Type Steel Box Lug Standard Load; Wire Size 14 to 4 AWG Copper/Aluminum (Standard Load); Mounting Plug-On Female Clip Line; Size 3 Inch Width x 3.8 Inch Depth x 4.7 Inch Height; Approval UL 489, CSA; Humidity Rating 0 to 93 Percent (Non-Condensing); Application HACR, 120 Volt AC Switching Duty Fluorescent Light; Applicable Standard Federal Specification W-C-375b 14b
