America's First Call for Commercial / Industrial Circuit Breakers & Other Electrical Parts.

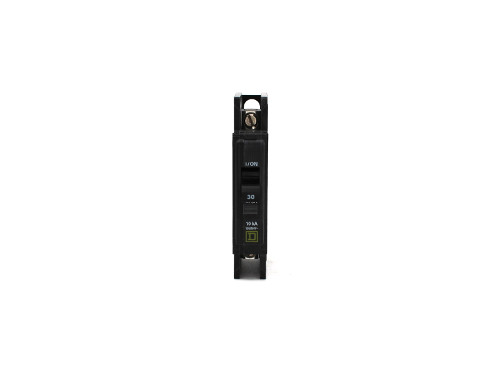

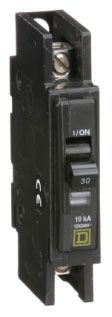

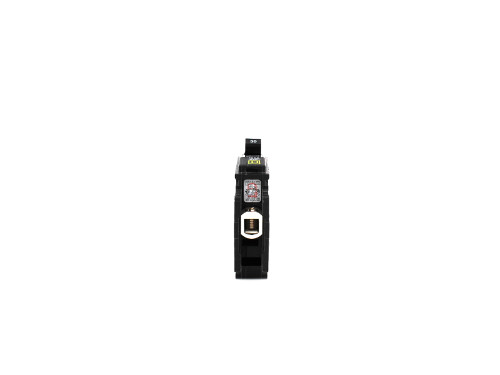

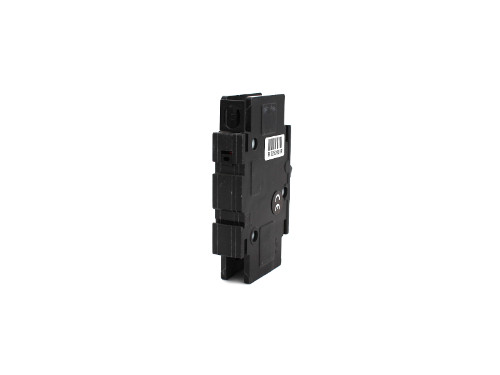

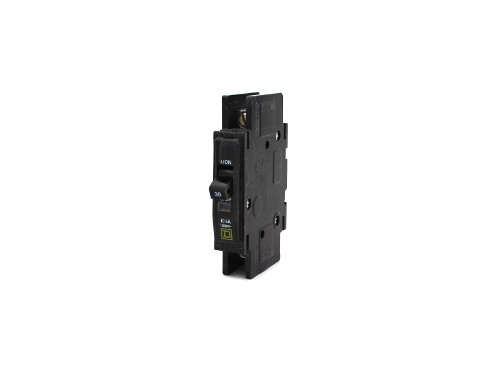

QOU130 - Limited Supply - Call to Check Stock Square D / Schneider Electric Miniature Circuit Breakers

Item # QOU130

QOU130 - Limited Supply - Call to Check Stock

NOTE: Images are for Reference Only

Product Specifications

Type
QOU
Amperage
30
Poles
1
Voltage
120

QOU130 - Limited Supply - Call to Check Stock Description

COMMON TRIP, THERMAL MAGNETIC TYPE; 0.75 INCH W X 2.98 INCH D X 5 INCH H SIZE; OEM PANEL AND ENCLOSURE USED ON; (1) 14 TO 2 AWG (ALUMINUM/COPPER) WIRE SIZE; UL, CSA APPROVAL; 120/240 VAC AT 50/60 HZ (UL/CSA), 48/60 VDC VOLTAGE RATING; 35 MM DIN RAIL, FLUSH/SURFACE MOUNTING; 10 KILOAMPERE AT 120/240 VAC (UL/CSA), 5 KILOAMPERE AT 48/60 VDC INTERRUPTING RATING; 30 AMPERE CURRENT RATING; 1 POLE(S); BOX LUG LINE TERMINAL, BOX LUG LOAD TERMINAL TERMINAL TYPE; QO[T] BRAND; WITH VISI-TRIP[R] INDICATOR; QOU MODEL Miniature Circuit Breakers from Square D / Schneider Electric

Features and Benefits

Features/Benefits:
HACR Rated; Returnability; QOU Miniature Circuit Breakers are Used for Over Current Protection and Switching on Both AC and DC Electrical Systems; Automatically Open a Circuit Under Overload or Short Circuit Conditions; Feature Common Tripping of All Poles; Operate in any Position; Halogen-Free; Mercury-Free; Toxic Heavy Metal-Free; Green Premium Products; RoHS/REACH Compliant
Additional Information:
120/240 VAC 50/60 Hz, 30 A, 10 kA Interrupt Rating, 14 to 2 AWG Aluminum/Copper, 1-Pole, Line/Load Slotted Box Lug Terminal, Unit Mount, Standard, Thermal Magnetic, Internal Common Trip, Miniature Circuit Breaker
