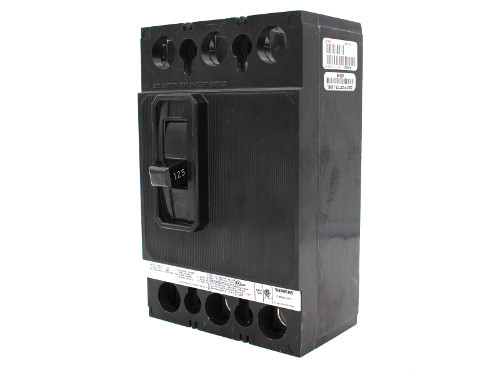

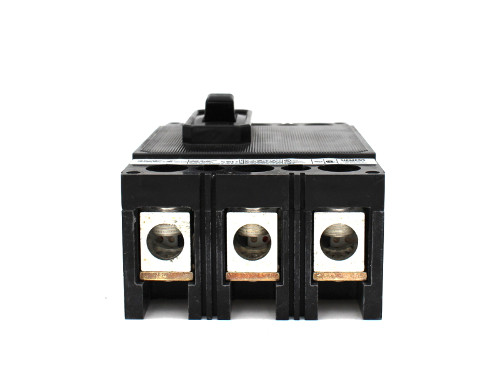

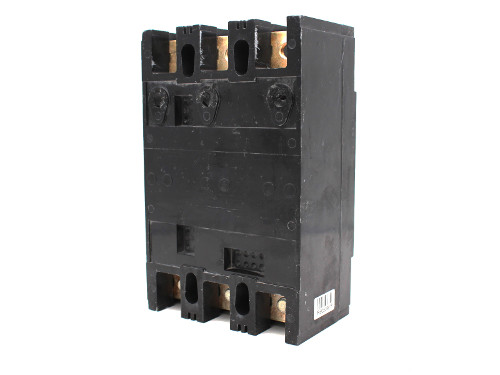

QJ23B125 Siemens / ITE Molded Case Circuit Breakers

Item # QJ23B125

QJ23B125

NOTE: Images are for Reference Only

Product Specifications

Type
QJ2
Amperage
125
Poles
3
Voltage
240

QJ23B125 Description

THERMAL MAGNETIC; 3 POLE; 240 VAC AT 60 HZ; 125 AMPERE AT 40 DEG C; INTERRUPTING RATING 10000 AMPERE AT 240 VAC (UL); LUG LOAD TERMINAL TERMINAL; WIRE SIZE 4 AWG TO 300 KCMIL (ALUMINUM), 6 AWG TO 300 KCMIL (COPPER); SIZE 4.5 INCH W X 2.34 INCH D X 7 INCH H; APPROVAL UL 489, CSA 22.2; SENTRON[R] BRAND; QJ2 MODEL Molded Case Circuit Breakers from Siemens / ITE

Features and Benefits

Features/Benefits:
Low Voltage Molded Case Circuit Breaker; RoHS Compliant
Additional Information:
240 VAC, 125 A, 10 kA, 3-Pole, Load Lug Terminal, QJ Frame, Molded Case Circuit Breaker
