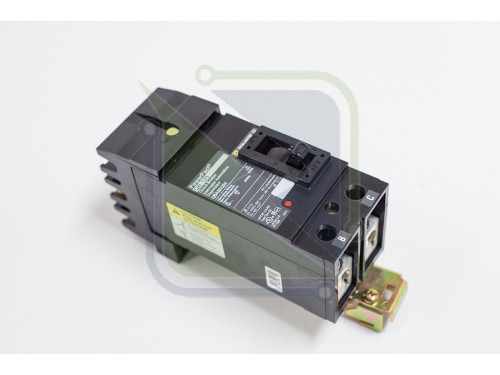

QDA221504 Square D / Schneider Electric Molded Case Circuit Breakers

Product Specifications

Type

QDA

Amperage

150

Poles

2

Voltage

240

QDA221504 Description

CLASS 650/734/820 I-LINE[R] PANELBOARD/SWITCHBOARD USED ON; UL, CSA APPROVAL; POWER DISTRIBUTION APPLICATION; 240 VAC AT 50/60 HZ (UL/CSA/NOM/IEC) VOLTAGE RATING; 25 KILOAMPERE AT 240 VAC (UL/CSA), 10 KILOAMPERE AT 240 VAC (IEC) INTERRUPTING RATING; 150 AMPERE CURRENT RATING; 2 POLE(S); 1200 TO 2400 AMPERE TRIP SETTING; POWERPACT[T] BRAND; FRAME TYPE Q; MOUNTING TYPE PLUG ON; SIZE 3 INCH W X 3.93 INCH D X 6.47 INCH H; TRIPPING METHOD THERMAL MAGNETIC; TERMINAL WIRE SIZE 4 AWG TO 300 KCMIL (ALUMINUM/COPPER); WITH YELLOW/BLUE PHASE; QD MODEL Molded Case Circuit Breakers from Square D / Schneider Electric
