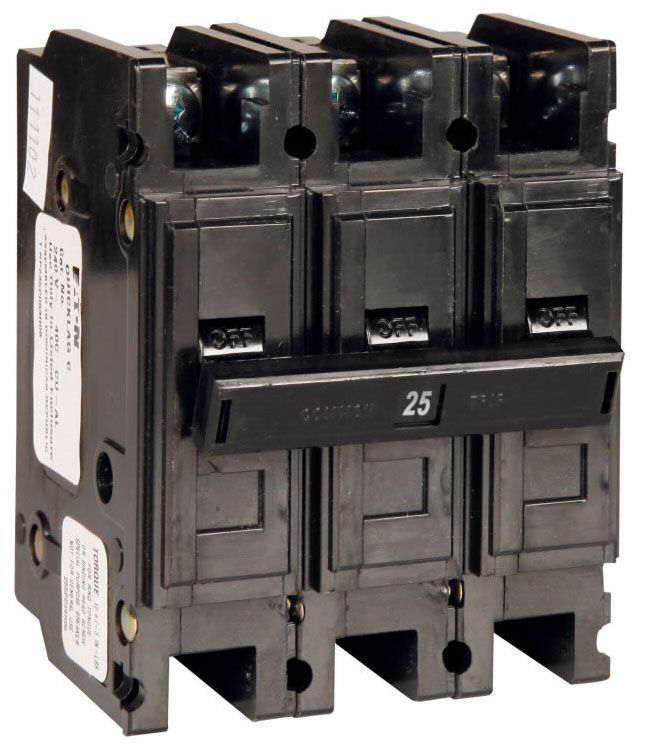

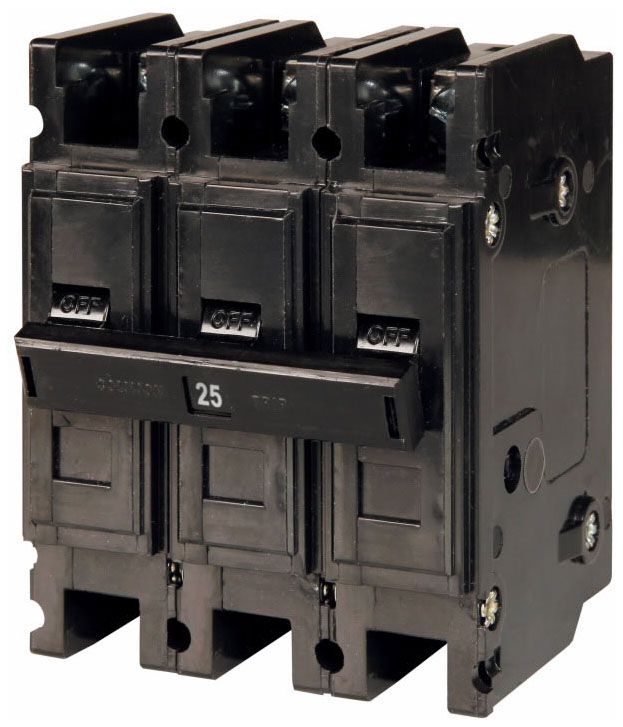

QC3025H Eaton / Cutler-Hammer / Westinghouse Miniature Circuit Breakers

Item # QC3025H

QC3025H
  • QC3025H
  • QC3025H

NOTE: Images are for Reference Only

Product Specifications

Type
QC
Amperage
25
Poles
3
Voltage
240

QC3025H Description

QUICKLAG INDUSTRIAL THERMAL-MAGNETIC CIRCUIT BREAKER 25A 3P CKT BRKR Miniature Circuit Breakers from Eaton / Cutler-Hammer / Westinghouse

Features and Benefits

Additional Information:
Industrial Circuit Breaker; Type Thermal Magnetic, Cable-In/Cable-Out, Non-Interchangeable Trip, Miniature; Number of Poles 3; Voltage Rating 240 Volt AC; Current Rating 25 Amp at 40 Deg C; Interrupting Rating 10000 Amp at 240 Volt AC; Terminal Type Aluminum Box Lug Standard Line, Steel Box Lug Standard Load; Wire Size 14 to 4 AWG Copper/Aluminum (Standard Load); Size 3 Inch Width x 3.7 Inch Depth x 4.9 Inch Height; Approval UL 489, CSA; Humidity Rating 0 to 93 Percent (Non-Condensing); Application HACR, 120 Volt AC Switching Duty Fluorescent Light; Applicable Standard Federal Specification W-C-375b 10b/11b/12b
