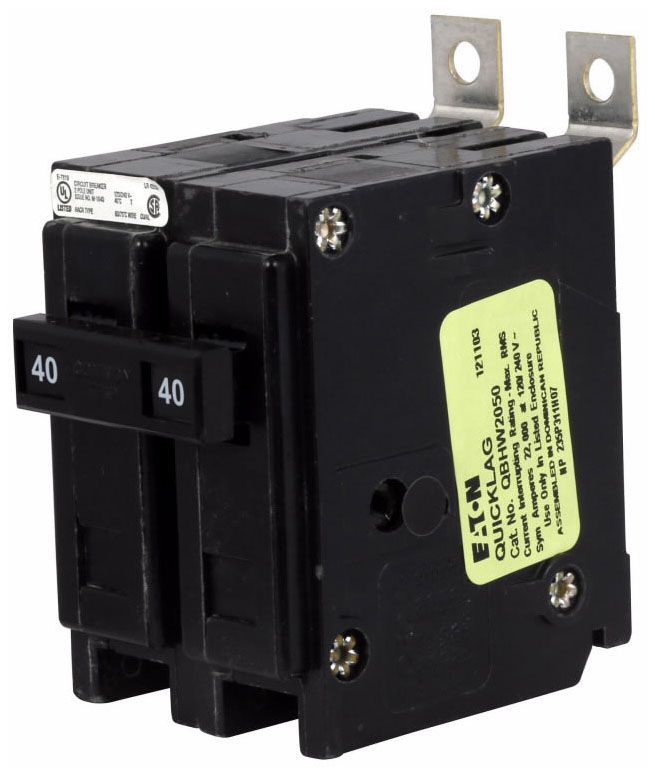

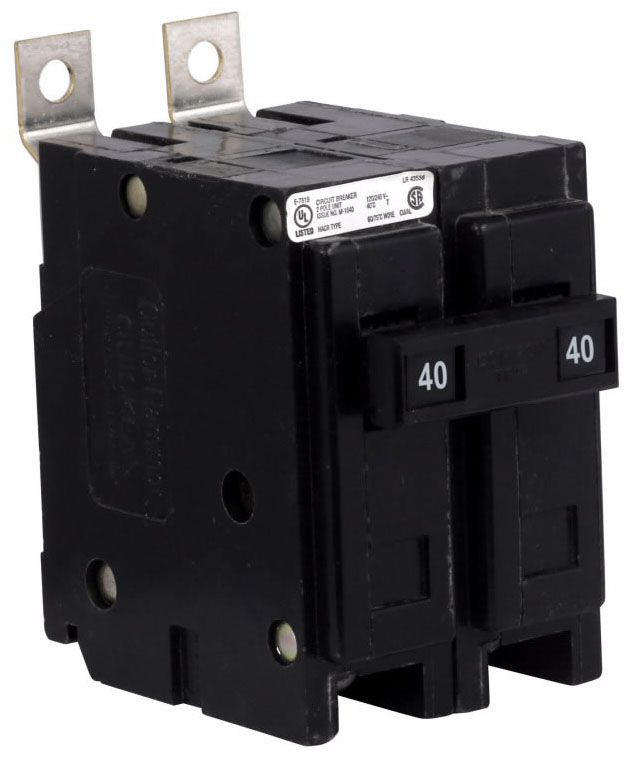

QBHW2040H Eaton / Cutler-Hammer / Westinghouse Miniature Circuit Breakers

Item # QBHW2040H

QBHW2040H
  • QBHW2040H
  • QBHW2040H

NOTE: Images are for Reference Only

Product Specifications

Type
QBHW
Amperage
40
Poles
2
Voltage
240

QBHW2040H Description

QUICKLAG INDUSTRIAL THERMAL-MAGNETIC CIRCUIT BREAKER 2P 40A CB Miniature Circuit Breakers from Eaton / Cutler-Hammer / Westinghouse

Features and Benefits

Additional Information:
Industrial Circuit Breaker; Type Thermal Magnetic, Non-Interchangeable Trip, Miniature; Number of Poles 2; Voltage Rating 120/240 Volt AC, 24/48/80 Volt DC; Current Rating 40 Amp at 40 Deg C; Interrupting Rating 22000 Amp at 120/240 Volt AC, 5000 Amp at 24/48/62.5/80 Volt DC; Terminal Type Steel Box Lug Standard Load; Wire Size 14 to 4 AWG Copper/Aluminum (Standard Load); Mounting Bolt-On; Size 2.3 Inch Width x 3.9 Inch Depth x 4.8 Inch Height; Approval UL 489, CSA; Humidity Rating 0 to 93 Percent (Non-Condensing); Application HACR, 120 Volt AC Switching Duty Fluorescent Light; Applicable Standard Federal Specification 14a
