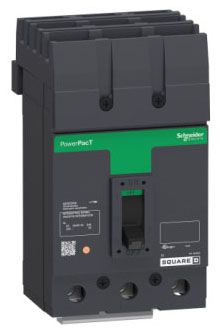

QBA32200 Square D / Schneider Electric Molded Case Circuit Breakers
Item # QBA32200

QBA32200

NOTE: Images are for Reference Only

Product Details and Specifications

Type QBA
Amperage 200
Poles 3
Voltage 240

QBA32200 Description

MOLDED CASE CIRCUIT BREAKER 240V 200A Molded Case Circuit Breakers from Square D / Schneider Electric

Relectric Recommends RE-Certified Plus

RE-Certified

Re-Certified products have been previously energized and have undergone a detailed 12-point quality inspection and testing process to ensure the electrical, mechanical, and electromechanical components are functioning properly. RE-Certified products are are suitable for use as field replacements, retrofits, upgrades, and expansions. We test each of our RE-Certified products to industry standards and certify them to be operational when installed. RE-Certified products come with a Full 1-Year No-Hassle Warranty.

RE-Certified Plus

RE-Certified Plus products include additional quality control checks. RE-Certified Plus products are tested to NETA Specifications and have Restorative Screening performed. RE-Certified Plus products have a 100% Money Back Guarantee. RE-Certified Plus products have a Full 2-Year No-Hassle Warranty.

NETA Testing

Relectric offers NETA testing on all products. Testing performed by RESA Power Service, a NETA Accredited Company. NETA testing fees vary by product.

Buy Now

$685.00

3 in stock

$890.50

Ships in 0-2 Working Days

$973.35

Ships in 0-2 Working Days

Request A Quote

Do you need a quote for this or a similar product? Do you have a question or need more detail about this product?
Request Quote or Information

Extended Details

240 VAC 50/60 Hz, 200 A, 10 kA Interrupt Rating, 3-Pole, Black, Thermal Magnetic, Q-Frame, Panelboard Molded Case Circuit Breaker
Thermal Magnetic, Q-Frame
240 Volt AC 50/60 Hertz
200 Amp
3
10 Kiloamp

Features and Benefits

Halogen-Free; PVC-Free; Mercury-Free; Green Premium Products; RoHS/REACH Compliant
RoHS/REACH Compliant; Overall Dimension 4.5 Inch Width x 3.93 Inch Depth x 6.47 Inch Height; Wire Size 4 AWG to 300 KCMIL; Wire Stripping Length 0.87 Inch; Tightening Torque 247.82 Pound Force-Inch; Mounting Height 4.5 Inch; Continuous Current Rating 80 Percent; Number of Spaces 1; Connection Type Load Lug; Mounting Type Bracket; Phase Connection Type ABC; Enclosure Rating NEMA; Ambient Temperature Rating 104 to 158 Deg F; Applicable Standard IEC

Ask an expert

Ask An Expert

Our experts can help.

800.497.6255

Email

Summary

The QBA32200 Square D / Schneider Electric Molded Case from Relectric

Relectric stocks new and used QBA32200 Square D / Schneider Electric Molded Case and many more brand-name electrical supplies. All of our reconditioned QBA32200 Square D / Schneider Electric Molded Case have been professionally tested and certified, and we guarantee their performance. You can also order your QBA32200 Square D / Schneider Electric Molded Case configured to your specifications. Relectric also carries a large stock of replacement parts for the QBA32200 Square D / Schneider Electric Molded Case. Contact one of our sales consultants today.
