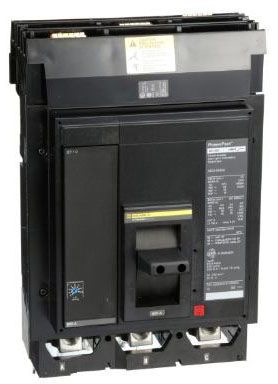

MGA36800 Square D / Schneider Electric Molded Case Circuit Breakers
Item # MGA36800

MGA36800
MGA36800

NOTE: Images are for Reference Only

Product Details and Specifications

Type MGA
Amperage 800
Poles 3
Voltage 600

MGA36800 Description

MOLDED CASE CIRCUIT BREAKER 600V 800A Molded Case Circuit Breakers from Square D / Schneider Electric

Relectric Recommends RE-Certified Plus

RE-Certified

Re-Certified products have been previously energized and have undergone a detailed 12-point quality inspection and testing process to ensure the electrical, mechanical, and electromechanical components are functioning properly. RE-Certified products are are suitable for use as field replacements, retrofits, upgrades, and expansions. We test each of our RE-Certified products to industry standards and certify them to be operational when installed. RE-Certified products come with a Full 1-Year No-Hassle Warranty.

RE-Certified Plus

RE-Certified Plus products include additional quality control checks. RE-Certified Plus products are tested to NETA Specifications and have Restorative Screening performed. RE-Certified Plus products have a 100% Money Back Guarantee. RE-Certified Plus products have a Full 2-Year No-Hassle Warranty.

NETA Testing

Relectric offers NETA testing on all products. Testing performed by RESA Power Service, a NETA Accredited Company. NETA testing fees vary by product.

Buy Now

$4,512.50

4 in stock

$5,866.25

Ships in 0-2 Working Days

$7,647.50

3 in stock

Request A Quote

Do you need a quote for this or a similar product? Do you have a question or need more detail about this product?
Request Quote or Information

Extended Details

600 VAC 50/60 Hz, 800 A, 65 kA, 3-Pole, M-Frame, ABC Phase, Line Lug Load Terminal, Thermal Magnetic, Basic Electronic, ET 1.0, Panelboard Molded Case Circuit Breaker
Thermal Magnetic, Basic Electronic ET 1.0
600 Volt AC 50/60 Hertz
800 Amp
3
65 Kiloamp at 240 Volt AC, 35 Kiloamp at 480 Volt AC, 18 Kiloamp at 600 Volt AC

Features and Benefits

Returnable; RoHS/REACH Compliant; Mercury-Free; PVC-Free; Green Premium Product; Made in USA

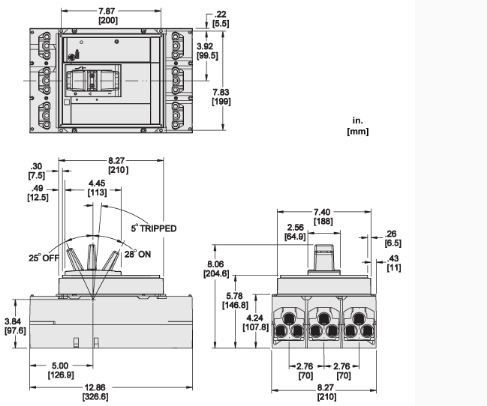

RoHS/REACH Compliant; Overall Dimension 8.27 Inch Width x 8.05 Inch Depth x 12.86 Inch Height; Frame Type M; Terminal Type I-Line Connection Line Lug Load; Control Type Operating Handle; Terminal Wire Size (3) 3/0 AWG to 500 KCMIL (Copper/Aluminum); Continuous Current Rating 80 Percent; Phase Connection Type ABC; Operation Ambient Air Temperature Rating -13 to 158 Deg F; Applicable Standard NOM, IEC
