MDL3500 Eaton / Cutler-Hammer / Westinghouse Molded Case Circuit Breakers

Item # MDL3500

MDL3500
  • MDL3500
  • MDL3500
  • MDL3500

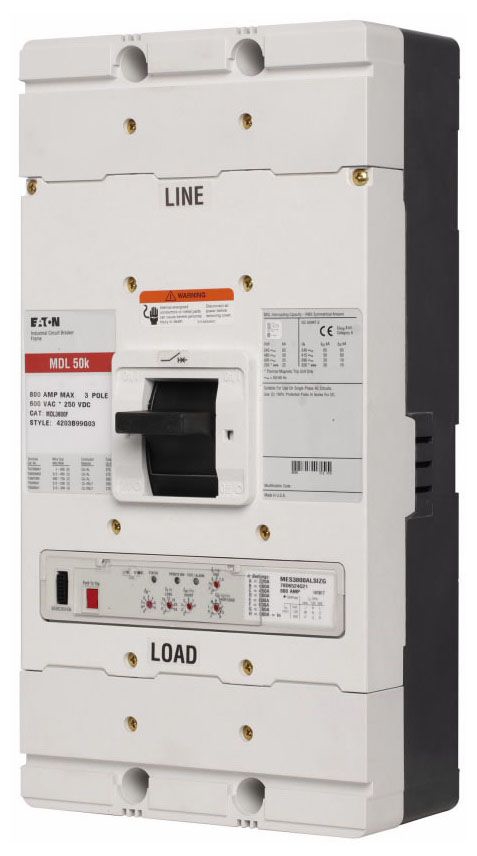

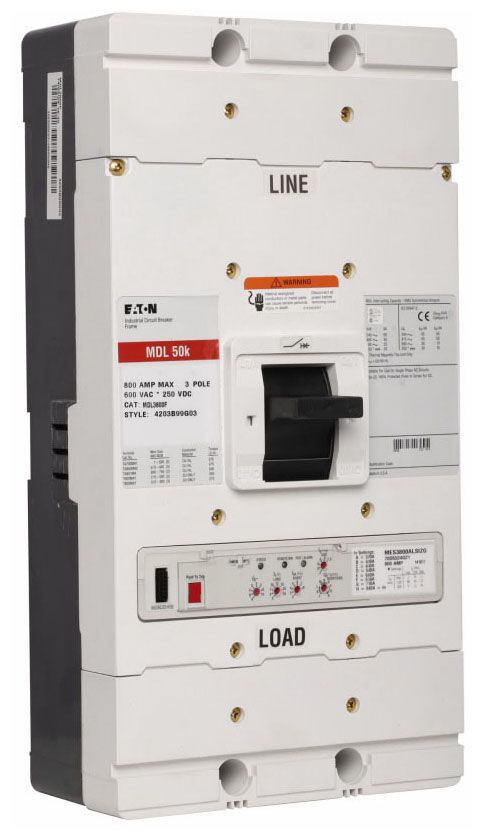

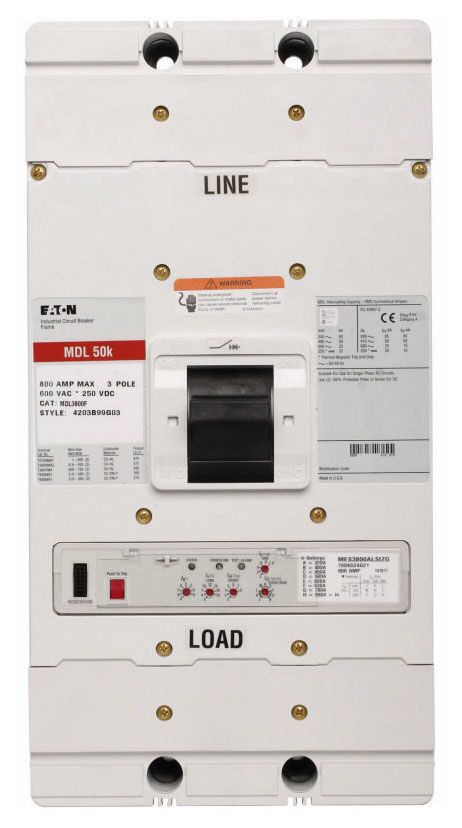

NOTE: Images are for Reference Only

Product Specifications

Type
MDL
Amperage
500
Poles
3
Voltage
600

MDL3500 Description

SERIES C M-FRAME MOLDED CASE CIRCUIT BREAKER 3P 500A CB Molded Case Circuit Breakers from Eaton / Cutler-Hammer / Westinghouse

Features and Benefits

Additional Information:
Interchangeable Trip Circuit Breaker; Type Thermal Magnetic, Standard Interrupting Capacity, Molded Case; Frame Type MD; Voltage Rating 600 Volt AC 50/60 Hertz, 250 Volt DC; Maximum AC Voltage Rating 600 Volt; Maximum DC Voltage Rating 250 Volt; Current Rating 500 Amp at 40 Deg C; Number of Poles 3; Interrupting Rating 65 Kiloamp at 240 Volt AC, 50 Kiloamp at 480 Volt AC, 25 Kiloamp at 600 Volt AC, 22 Kiloamp at 250 Volt DC (UL/CSA), 65/65 Kiloamp at 240 Volt AC, 50/50 Kiloamp at 415 Volt AC, 20/10 Kiloamp at 690 Volt AC, 20/10 Kiloamp at 250 Volt DC (IEC); Size 8.25 Inch Width x 4.06 Inch Depth x 16 Inch Height; Approval UL 489, CSA C22.2, CE; Application HACR; Applicable Standard IEC 60947-2, SABS 156, SEV 157-1, NFC 63-120, VDE0660, Federal Specification W-C-375b 23a
