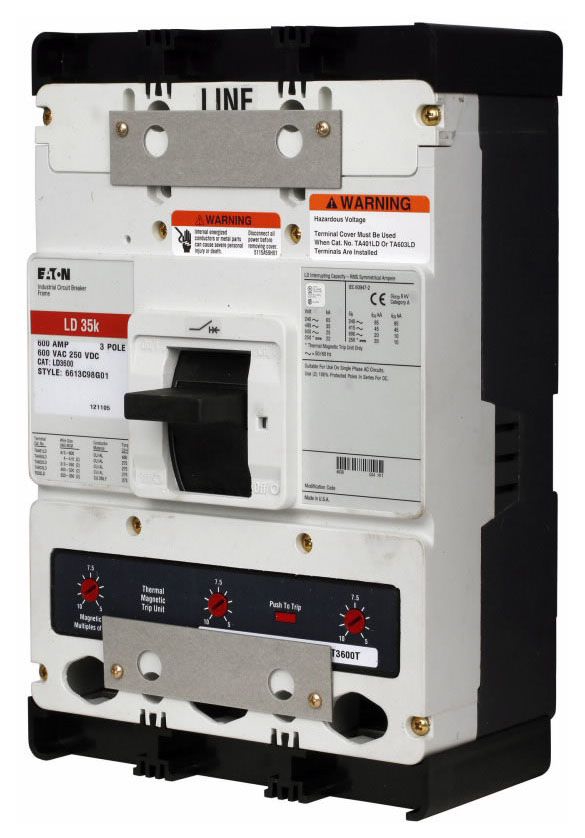

LDB3300 Eaton / Cutler-Hammer / Westinghouse Molded Case Circuit Breakers

Item # LDB3300

LDB3300

NOTE: Images are for Reference Only

Product Specifications

Type
LDB
Amperage
300
Poles
3
Voltage
600

LDB3300 Description

SERIES C L-FRAME MOLDED CASE CIRCUIT BREAKER 3P 300A CB Molded Case Circuit Breakers from Eaton / Cutler-Hammer / Westinghouse

Features and Benefits

Additional Information:
Non-Interchangeable Trip Circuit Breaker; Type Fixed Thermal Magnetic, Molded Case; Frame Type LD; Voltage Rating 600 Volt AC 50/60 Hertz, 250 Volt DC; Maximum AC Voltage Rating 600 Volt; Maximum DC Voltage Rating 250 Volt; Current Rating 300 Amp at 40 Deg C; Number of Poles 3; Interrupting Rating 65 Kiloamp at 240 Volt AC, 35 Kiloamp at 480 Volt AC, 25 Kiloamp at 600 Volt AC, 22 Kiloamp at 250 Volt AC (UL), 85 Kiloamp at 240 Volt AC, 45 Kiloamp at 415 Volt AC, 20 Kiloamp at 690 Volt AC/250 Volt DC (IEC); Terminal Type Aluminum Line and Load; Size 8.25 Inch Width x 4.06 Inch Depth x 10.75 Inch Height; Approval UL 489, CSA C22.2, CE; Application HACR, Reverse Feed; Applicable Standard IEC 60947-2, SABS 156, SEV 157-1, NFC 63-120, VDE0660, Federal Specification W-C-375b 23a
