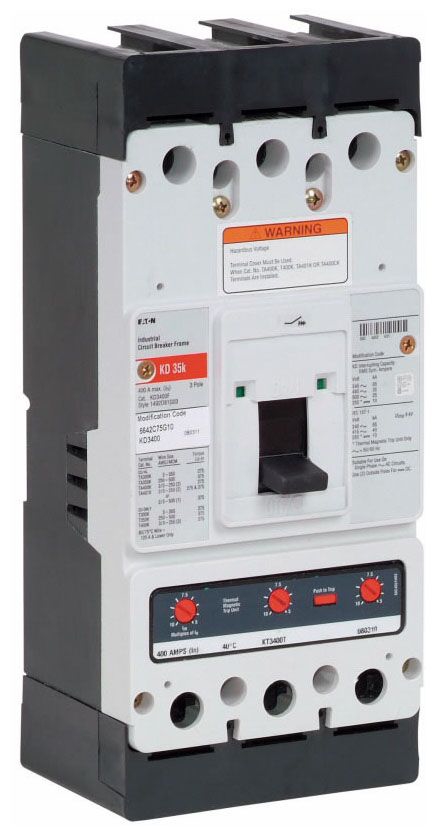

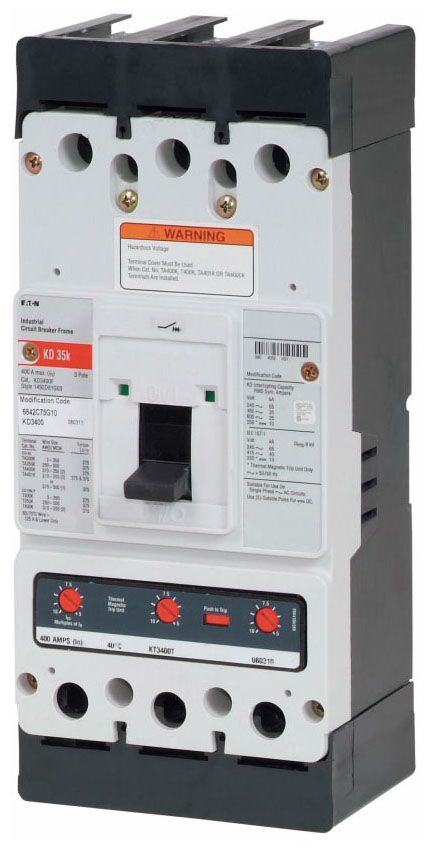

KDB3300 Eaton / Cutler-Hammer / Westinghouse Molded Case Circuit Breakers
Item # KDB3300

KDB3300
KDB3300

NOTE: Images are for Reference Only

Product Details and Specifications

Type KDB
Amperage 300
Poles 3
Voltage 600

KDB3300 Description

SERIES C K-FRAME MOLDED CASE CIRCUIT BREAKER 3P 300A CB Molded Case Circuit Breakers from Eaton / Cutler-Hammer / Westinghouse

Relectric Recommends RE-Certified Plus

RE-Certified

Re-Certified products have been previously energized and have undergone a detailed 12-point quality inspection and testing process to ensure the electrical, mechanical, and electromechanical components are functioning properly. RE-Certified products are are suitable for use as field replacements, retrofits, upgrades, and expansions. We test each of our RE-Certified products to industry standards and certify them to be operational when installed. RE-Certified products come with a Full 1-Year No-Hassle Warranty.

RE-Certified Plus

RE-Certified Plus products include additional quality control checks. RE-Certified Plus products are tested to NETA Specifications and have Restorative Screening performed. RE-Certified Plus products have a 100% Money Back Guarantee. RE-Certified Plus products have a Full 2-Year No-Hassle Warranty.

NETA Testing

Relectric offers NETA testing on all products. Testing performed by RESA Power Service, a NETA Accredited Company. NETA testing fees vary by product.

Buy Now

Call For Best Price

Out of stock

Call For Best Price

Out of stock

Call For Best Price

Out of stock

Request A Quote

Do you need a quote for this or a similar product? Do you have a question or need more detail about this product?
Request Quote or Information

Extended Details

Non-Interchangeable Trip Circuit Breaker; Type Fixed Thermal Magnetic, Molded Case; Frame Type KD; Voltage Rating 600 Volt AC 50/60 Hertz, 250 Volt DC; Maximum AC Voltage Rating 600 Volt; Maximum DC Voltage Rating 250 Volt; Current Rating 300 Amp at 40 Deg C; Number of Poles 3; Interrupting Rating 65 Kiloamp at 240 Volt AC, 35 Kiloamp at 480 Volt AC, 25 Kiloamp at 600 Volt AC, 10 Kiloamp at 250 Volt DC (NEMA/UL/CSA), 65 Kiloamp at 240 Volt AC, 40 Kiloamp at 380/415 Volt AC, 10 Kiloamp at 250 Volt DC (IEC); Terminal Type Aluminum Line and Load; Size 5.5 Inch Width x 4.1 Inch Depth x 10.13 Inch Height; Approval UL 489, CSA C22.2; Application HACR, Reverse Feed; Applicable Standard IEC 60947-2, SABS 156, SEV 157-1, NFC 63-120, VDE0660, Federal Specification W-C-375b 23a
Fixed Thermal Magnetic, Molded Case
KD
600 Volt AC 50/60 Hertz, 250 Volt DC
600 Volt
250 Volt

Features and Benefits

Application HACR, Reverse Feed; Applicable Standard IEC 60947-2, SABS 156, SEV 157-1, NFC 63-120, VDE0660, Federal Specification W-C-375b 23a
