KD2400F Eaton / Cutler-Hammer / Westinghouse Molded Case Circuit Breakers

Item # KD2400F

KD2400F

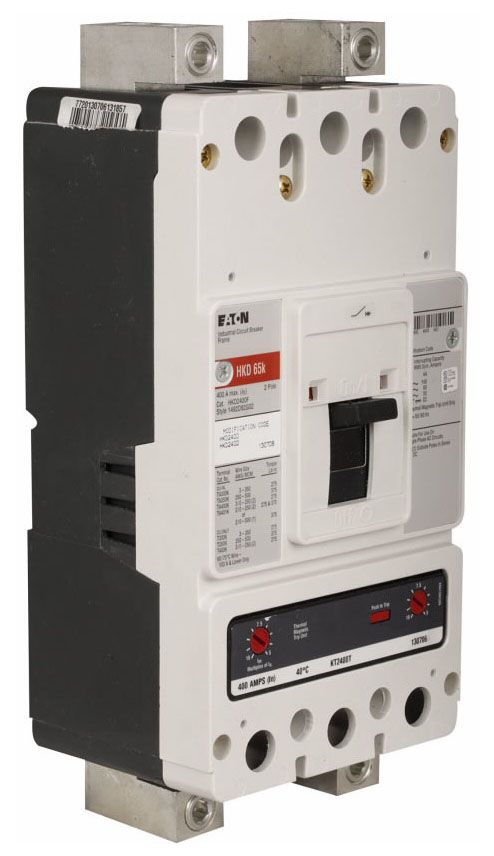

NOTE: Images are for Reference Only

Product Specifications

Type
KD
Amperage
400
Poles
2
Voltage
600

KD2400F Description

SERIES C K-FRAME MOLDED CASE CIRCUIT BREAKER FRAME 400A 2P CKT BRKR Molded Case Circuit Breakers from Eaton / Cutler-Hammer / Westinghouse

Features and Benefits

Additional Information:
Molded Case Circuit Breaker Frame; Type Fixed Thermal Magnetic, KD Frame, Standard Interrupting Capacity; Voltage Rating 600 Volt AC 50/60 Hertz, 250 Volt DC; Maximum AC Voltage Rating 600 Volt; Maximum DC Voltage Rating 250 Volt; Current Rating 400 Amp; Number of Poles 2; Interrupting Rating 65 Kiloamp at 240 Volt AC, 35 Kiloamp at 480 Volt AC, 25 Kiloamp at 600 Volt AC, 10 Kiloamp at 250 Volt DC (NEMA/UL/CSA), 65 Kiloamp at 240 Volt AC, 40 Kiloamp at 380/415 Volt AC, 10 Kiloamp at 250 Volt DC (IEC); Terminal Type Aluminum Standard Pressure Line and Load; Size 5.5 Inch Width x 4.1 Inch Depth x 10.13 Inch Height; Approval UL 489, CSA C22.2; Application HACR; Applicable Standard IEC 60947-2, SABS 156, SEV 157-1, NFC 63-120, VDE0660, Federal Specification W-C-375b 23a
