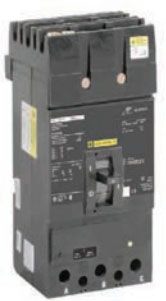

KA36200 Square D / Schneider Electric Molded Case Circuit Breakers
Item # KA36200

KA36200

NOTE: Images are for Reference Only

Product Details and Specifications

Type KA
Amperage 200
Poles 3
Voltage 600
Short Circ Int Cap 25kA@480V
Configuration I-Line

KA36200 Description

Square D, Molded Case, Circuit Breakers, Type KA, 200A, 3P, 600 VAC, I-Line, Thermal Magnetic, Interrupting Current: 42 kA at 240 VAC / 25 kA at 480 VAC / 22 kA at 600 VAC / 10 kA at 250 VDC Molded Case Circuit Breakers from Square D / Schneider Electric

Relectric Recommends RE-Certified Plus

RE-Certified

Re-Certified products have been previously energized and have undergone a detailed 12-point quality inspection and testing process to ensure the electrical, mechanical, and electromechanical components are functioning properly. RE-Certified products are are suitable for use as field replacements, retrofits, upgrades, and expansions. We test each of our RE-Certified products to industry standards and certify them to be operational when installed. RE-Certified products come with a Full 1-Year No-Hassle Warranty.

RE-Certified Plus

RE-Certified Plus products include additional quality control checks. RE-Certified Plus products are tested to NETA Specifications and have Restorative Screening performed. RE-Certified Plus products have a 100% Money Back Guarantee. RE-Certified Plus products have a Full 2-Year No-Hassle Warranty.

NETA Testing

Relectric offers NETA testing on all products. Testing performed by RESA Power Service, a NETA Accredited Company. NETA testing fees vary by product.

Buy Now

$1,096.68

22 in stock

$1,425.68

Ships in 0-2 Working Days

$2,513.20

Ships in 0-2 Working Days

Request A Quote

Do you need a quote for this or a similar product? Do you have a question or need more detail about this product?
Request Quote or Information

Extended Details

600 VAC, 250 VDC, 200 A, 22 kA, 3-Pole, K-Frame, I-Line Mount, Thermal Magnetic, Molded Case Circuit Breaker
Molded Case, Thermal Magnetic, Main
600 Volt AC, 250 Volt DC
200 Amp
3
42 Kiloamp at 240 Volt AC, 25 Kiloamp at 480 Volt AC, 22 Kiloamp at 600 Volt AC

Features and Benefits

Frame Type K; Phase Connection Type ABC; Size 4.5 Inch Width x 4.75 Inch Depth x 8 Inch Height; Mounting Height 4.5 Inch; Wire Size 4 AWG to 350 KCMIL (Aluminum)
