JXD23B300 Siemens / ITE Molded Case Circuit Breakers

Item # JXD23B300

JXD23B300

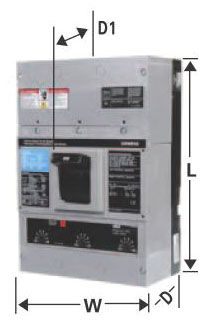

NOTE: Images are for Reference Only

Product Specifications

Type
JXD
Amperage
300
Poles
3
Voltage
240

JXD23B300 Description

MOLDED CASE, THERMAL MAGNETIC; JD FRAME; 240 VAC AT 50/60 HZ, 250 VDC; 300 AMPERE AT 40 DEG C; 3 POLE; INTERRUPTING RATING 65 KILOAMPERE AT 240 VAC (UL); TERMINAL NOT INCLUDED; SIZE 7.5 INCH W X 5.44 INCH D X 11 INCH H; APPROVAL CE; SENTRON[R] BRAND; JXD2-A MODEL; CALIBRATION AT 50 DEG C; ICS RATING 33 KILOAMPERE AT 220/240 VAC, 20 KILOAMPERE AT 380/415 VAC, 15 KILOAMPERE AT 500 VAC (IEC) Molded Case Circuit Breakers from Siemens / ITE

Features and Benefits

Features/Benefits:
Low Voltage Molded Case Circuit Breaker; RoHS Compliant
Additional Information:
240 VAC, 250 VDC, 300 A at 40 Deg C, 65 kA, 3-Pole, JD Frame, Thermal Magnetic Trip Unit, Non-Interchangeable Trip, Molded Case Circuit Breaker
