JGL36175 Square D / Schneider Electric Molded Case Circuit Breakers

Item # JGL36175

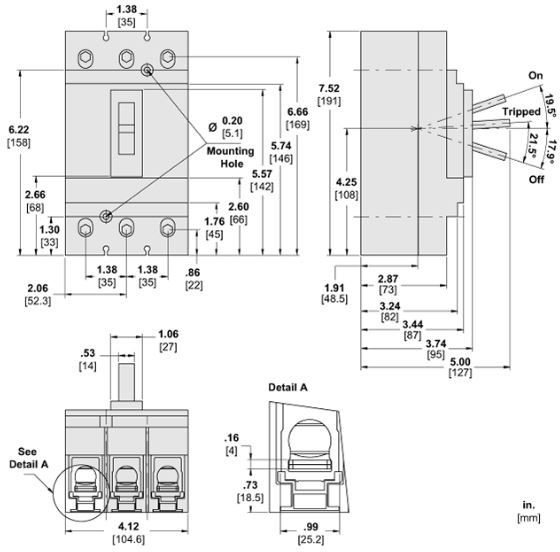

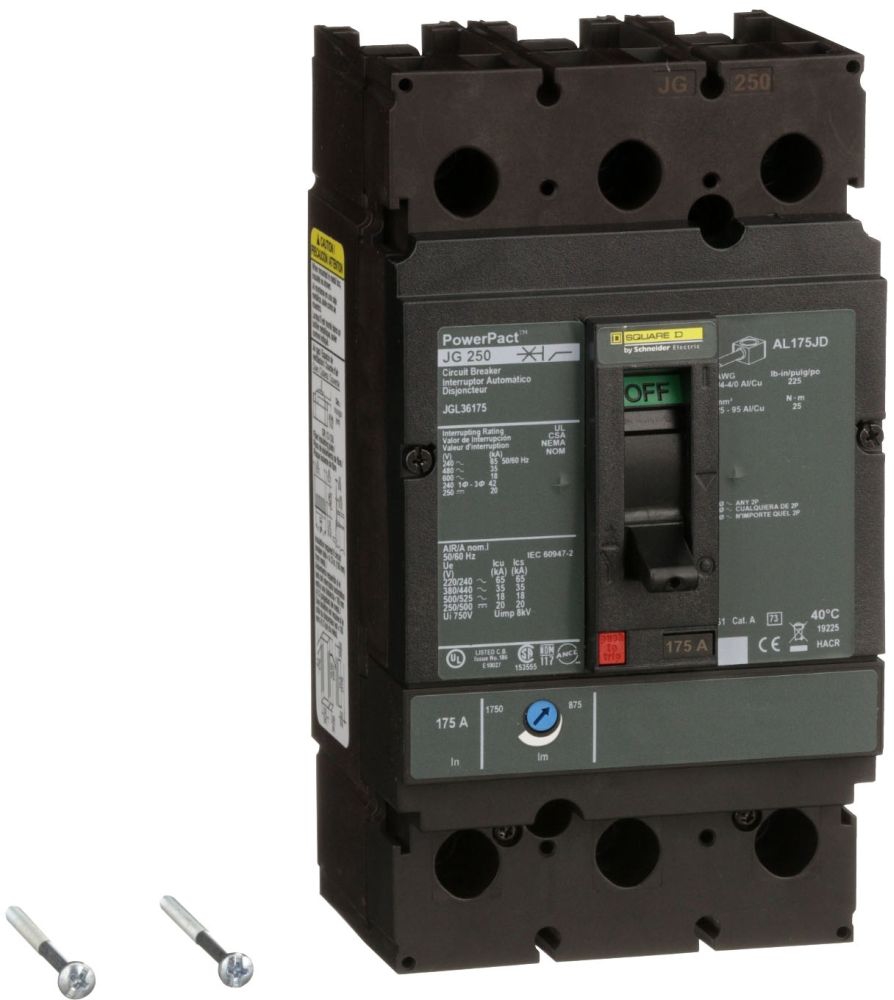

NOTE: Images are for Reference Only

Product Specifications

Type
JGL
Amperage
175
Poles
3
Voltage
600

JGL36175 Description

MOLDED CASE CIRCUIT BREAKER 600V 175A Molded Case Circuit Breakers from Square D / Schneider Electric

Features and Benefits

Features/Benefits:
Powerpact J-Frame Circuit Breakers are Designed to Protect Electrical Systems from Damage Caused by Overloads and Short Circuits; Powerpact J-Frame Circuit Breakers are Available with Either Thermal Magnetic or Micrologic Electronic Trip Protection Units; This Powerpact J-Frame Circuit Breaker Provides Thermal Magnetic Circuit Protection with a Breaking Capacity of 18 Kiloamp at 600 Volt AC; All Powerpact J-Frame Circuit Breakers are Equipped with Dual Break Rotating Contacts that Reduce the Amount of Peak Current During a Short Circuit Fault; All Powerpact Circuit Breakers have an Integral Push to Trip Button in the Cover to Manually Trip the Circuit Breaker; HACR Rated; RoHS/REACH Compliant; Mercury-Free; PVC-Free; Green Premium Product
Additional Information:
600 VAC 50/60 Hz, 250 VDC, 175 A, 18 kA, 3-Pole, J-Frame, BC Phase, Unit Mount, Line/Load Lug Terminal, Thermal Magnetic, Current Limiting, Adjustable, Molded Case Circuit Breaker
