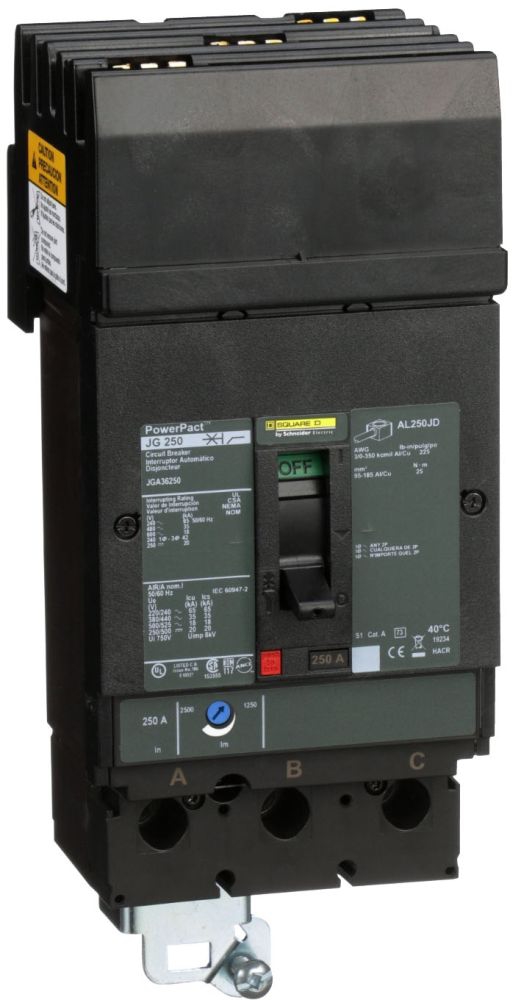

JGA36250 Square D / Schneider Electric Molded Case Circuit Breakers

Name: JGA36250 Square D / Schneider Electric Molded Case Circuit Breakers
Brand: Square D / Schneider Electric
Price: 1398.2 USD
Availability: InStock

Item # JGA36250

NOTE: Images are for Reference Only

Product Specifications

Type: JGA
Amperage: 250
Poles: 3
Voltage: 600
Short Circ Int Cap: 35kA@480V
Configuration: I-Line
Feature 1: LI Functions
Feature 2: Phase Connection: ABC

JGA36250 Description

Square D, Molded Case, Circuit Breaker, Powerpact, Type JGA, 250A, 3PH, 3P, 600V, I-Line Style Plug-In, Thermal Magnetic, Interrupting Current: 35kA at 480V, ABC Phase Connection, Long Time & Instantaneous (LI) Trip Functions Molded Case Circuit Breakers from Square D / Schneider Electric

Relectric Recommends RE-Certified Plus

RE-Certified

Re-Certified products have been previously energized and have undergone a detailed 12-point quality inspection and testing process to ensure the electrical, mechanical, and electromechanical components are functioning properly. RE-Certified products are suitable for use as field replacements, retrofits, upgrades, and expansions. We test each of our RE-Certified products to industry standards and certify them to be operational when installed. RE-Certified products come with a Full 1-Year No-Hassle Warranty.

RE-Certified Plus

RE-Certified Plus products include additional quality control checks. RE-Certified Plus products are tested to NETA Specifications and have Restorative Screening performed. RE-Certified Plus products have a 100% Money Back Guarantee. RE-Certified Plus products have a Full 2-Year No-Hassle Warranty.

NETA Testing

Relectric offers NETA testing on all products. Testing performed by RESA Power Service, a NETA Accredited Company. NETA testing fees vary by product.

Summary

The JGA36250 Square D / Schneider Electric Molded Case from Relectric

Relectric stocks new and used JGA36250 Square D / Schneider Electric Molded Case and many more brand-name electrical supplies. All of our reconditioned JGA36250 Square D / Schneider Electric Molded Case have been professionally tested and certified, and we guarantee their performance. You can also order your JGA36250 Square D / Schneider Electric Molded Case configured to your specifications. Relectric also carries a large stock of replacement parts for the JGA36250 Square D / Schneider Electric Molded Case. Contact one of our sales consultants today.

Buy Now

RE-Certified more info

INSPECTED & TESTED
1 Year Warranty

$1,398.20

1 in stock
RE-Certified Plus more info

RESA Certified
2 Year Warranty

$1,817.66

Ships in 0-2 Working Days
New Surplus more info

Guaranteed New
1 Year Warranty

$2,257.50

1 in stock

Qty

Request A Quote

Do you need a quote for this or a similar product? Do you have a question or need more detail about this product?

Request Quote or Info

Extended Details

Description:: 600 VAC 50/60 Hz, 250 VDC, 250 A, 18 kA, 3-Pole, J-Frame, ABC Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
Type:: Thermal Magnetic, Current Limiting
Voltage Rating:: 600 Volt AC 50/60 Hertz, 250 Volt DC
Current Rating:: 250 Amp
Number of Poles:: 3
Interrupting Rating:: 18 Kiloamp at 600 Volt AC, 20 Kiloamp at 250 Volt DC

Features and Benefits

Features/Benefits:: The Powerpact J-Frame Circuit Breakers are Designed to Protect Electrical Systems from Damage Caused by Overloads and Short Circuits; J-Frame Circuit Breakers are Either Thermal-magnetic or Micrologic Electronic Trip Units; All Powerpact J-Frame Circuit Breakers are Equipped with Dual-Break Rotating Contacts that Reduce the Amount of Peak Current During a Short Circuit Fault; All Powerpact Circuit Breakers have an Integral Push to Trip Button in the Cover to Manually Trip the Circuit Breaker; HACR Rated; RoHS/REACH Compliant; Mercury-Free; PVC-Free; Green Premium Product
Additional Information:: 600 VAC 50/60 Hz, 250 VDC, 250 A, 18 kA, 3-Pole, J-Frame, ABC Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
