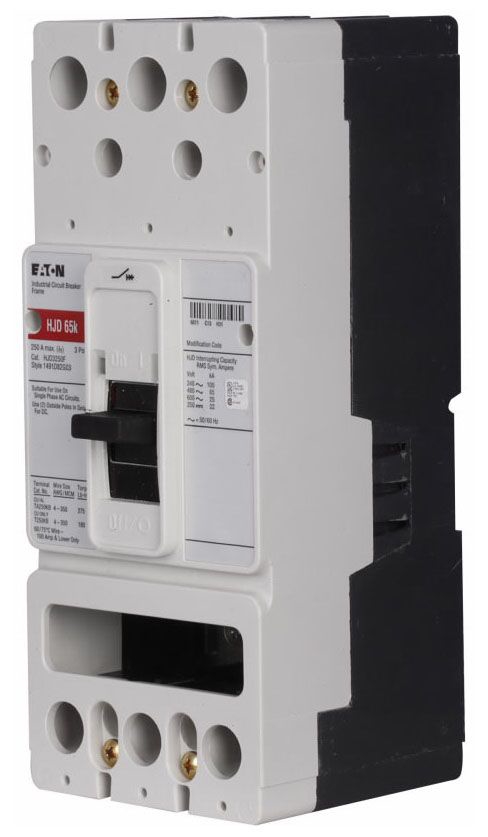

JDC3250F Eaton / Cutler-Hammer / Westinghouse Molded Case Circuit Breakers

Item # JDC3250F

JDC3250F
  • JDC3250F
  • JDC3250F

NOTE: Images are for Reference Only

Product Specifications

Type
JDC
Amperage
250
Poles
3
Voltage
600

JDC3250F Description

SERIES C J-FRAME MOLDED CASE CIRCUIT BREAKER FRAME 250A 3P CKT BRKR Molded Case Circuit Breakers from Eaton / Cutler-Hammer / Westinghouse

Features and Benefits

Additional Information:
Non-Interchangeable Molded Case Circuit Breaker Frame; Type Fixed Thermal Magnetic, JD Frame, Ultra High Interrupting Capacity; Voltage Rating 600 Volt AC 50/60 Hertz, 250 Volt DC; Maximum AC Voltage Rating 600 Volt; Maximum DC Voltage Rating 250 Volt; Current Rating 250 Amp at 40 Deg C; Number of Poles 3; Interrupting Rating 200 Kiloamp at 240 Volt AC, 100 Kiloamp at 480 Volt AC, 35 Kiloamp at 600 Volt AC, 22 Kiloamp at 250 Volt DC (UL), 200 Kiloamp at 240 Volt AC, 100 Kiloamp at 380/415 Volt AC, 22 Kiloamp at 250 Volt DC (IEC); Terminal Type Aluminum Line and Load; Size 4.13 Inch Width x 4.06 Inch Depth x 10 Inch Height; Approval UL 489, CSA C22.2; Application HACR, Switchboard; Applicable Standard IEC 60947-2, SABS 156, SEV 157-1, NFC 63-120, VDE0660, Federal Specification W-C-375b 22a
