JDB3070 Eaton / Cutler-Hammer / Westinghouse Molded Case Circuit Breakers

Item # JDB3070

JDB3070
  • JDB3070
  • JDB3070

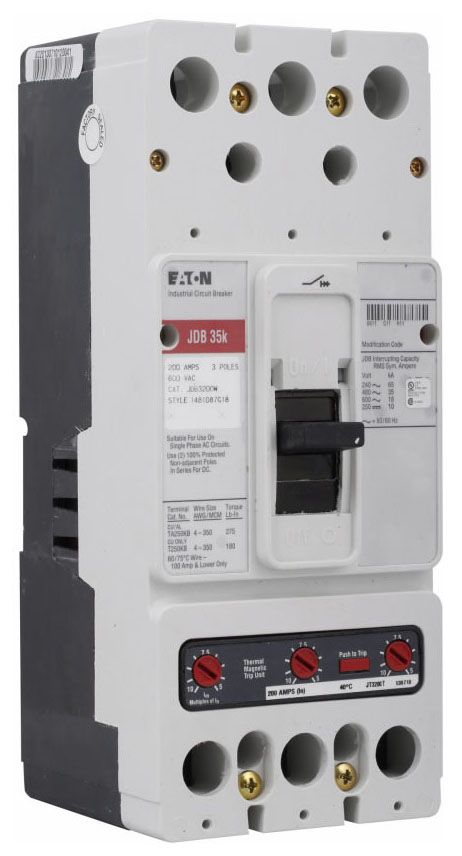

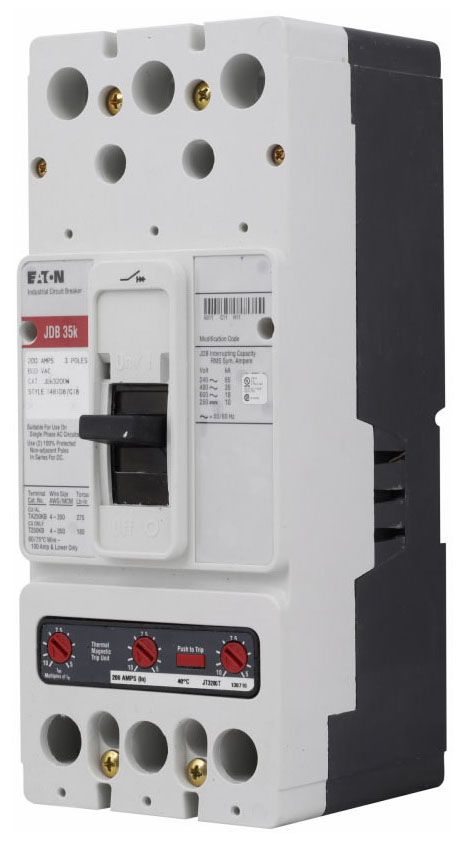

NOTE: Images are for Reference Only

Product Specifications

Type
JDB
Amperage
70
Poles
3
Voltage
600

JDB3070 Description

SERIES C J-FRAME MOLDED CASE CIRCUIT BREAKER 3P 70A CB Molded Case Circuit Breakers from Eaton / Cutler-Hammer / Westinghouse

Features and Benefits

Additional Information:
Non-Interchangeable Trip Circuit Breaker; Type Fixed Thermal Magnetic, Molded Case; Frame Type JD; Voltage Rating 600 Volt AC 50/60 Hertz, 250 Volt DC; Maximum AC Voltage Rating 600 Volt; Maximum DC Voltage Rating 250 Volt; Current Rating 70 Amp at 40 Deg C; Number of Poles 3; Interrupting Rating 65 Kiloamp at 240 Volt AC, 35 Kiloamp at 480 Volt AC, 18 Kiloamp at 600 Volt AC, 10 Kiloamp at 250 Volt DC (UL); Terminal Type Aluminum Line and Load; Size 4.13 Inch Width x 4.06 Inch Depth x 10 Inch Height; Approval UL 489, CSA C22.2; Application HACR, Switchboard, Reverse Feed; Applicable Standard IEC 60947-2, SABS 156, SEV 157-1, NFC 63-120, VDE0660, Federal Specification W-C-375b 22a
