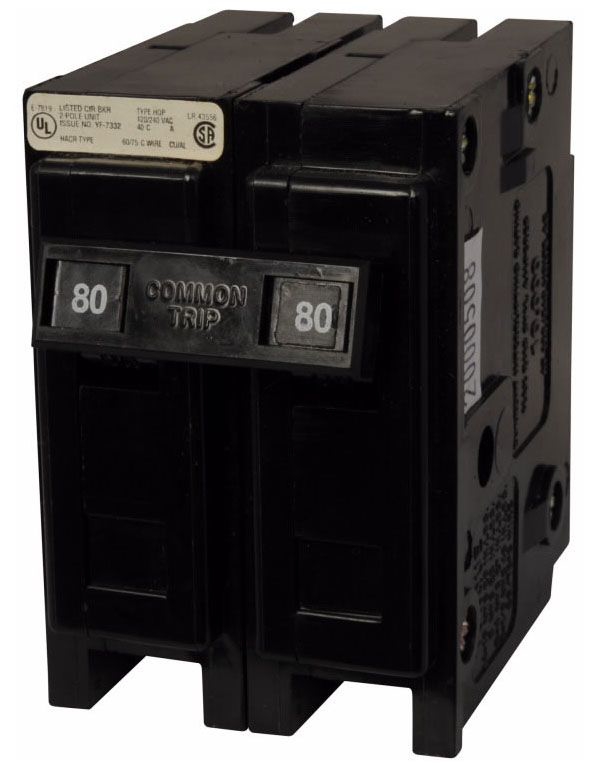

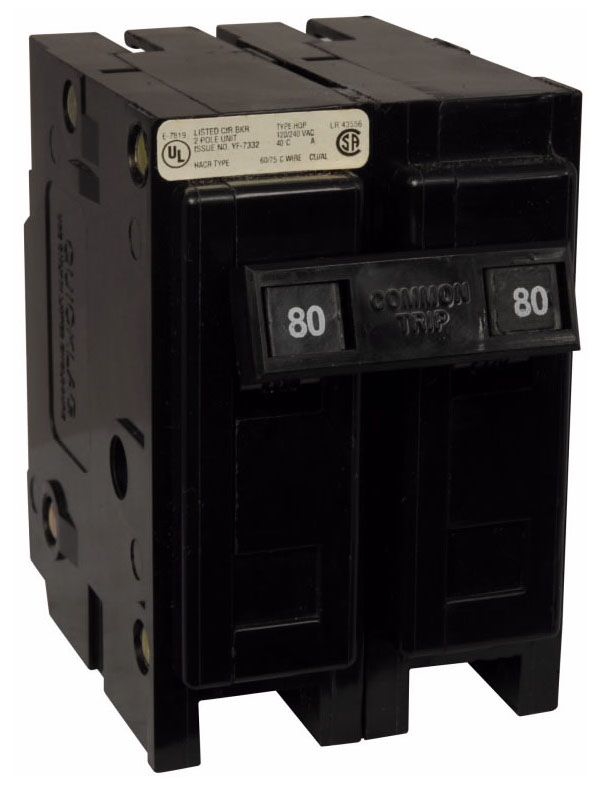

HQP2080 Eaton / Cutler-Hammer / Westinghouse Miniature Circuit Breakers

Item # HQP2080

HQP2080
  • HQP2080
  • HQP2080

NOTE: Images are for Reference Only

Product Specifications

Type
HQP
Amperage
80
Poles
2
Voltage
120/240

HQP2080 Description

QUICKLAG INDUSTRIAL THERMAL-MAGNETIC CIRCUIT BREAKER 2P 80A CB Miniature Circuit Breakers from Eaton / Cutler-Hammer / Westinghouse

Features and Benefits

Additional Information:
Industrial Circuit Breaker; Type Fixed Thermal Magnetic, Miniature; Number of Poles 2; Voltage Rating 120/240 Volt AC 60 Hertz, 24/48/80 Volt DC; Current Rating 80 Amp at 40 Deg C; Interrupting Rating 10000 Amp at 120/240 Volt AC, 5000 Amp at 24/48/62.5/80 Volt DC; Terminal Type Steel Box Lug Standard Load; Wire Size 8 to 1/0 AWG Copper/Aluminum (Standard Load); Mounting Plug-On Female Clip Line; Size 2.2 Inch Width x 3.8 Inch Depth x 4.8 Inch Height; Approval UL 489, CSA; Humidity Rating 0 to 93 Percent (Non-Condensing); Application HACR, 120 Volt AC Switching Duty Fluorescent Light; Applicable Standard Federal Specification W-C-375b 10a/12a
