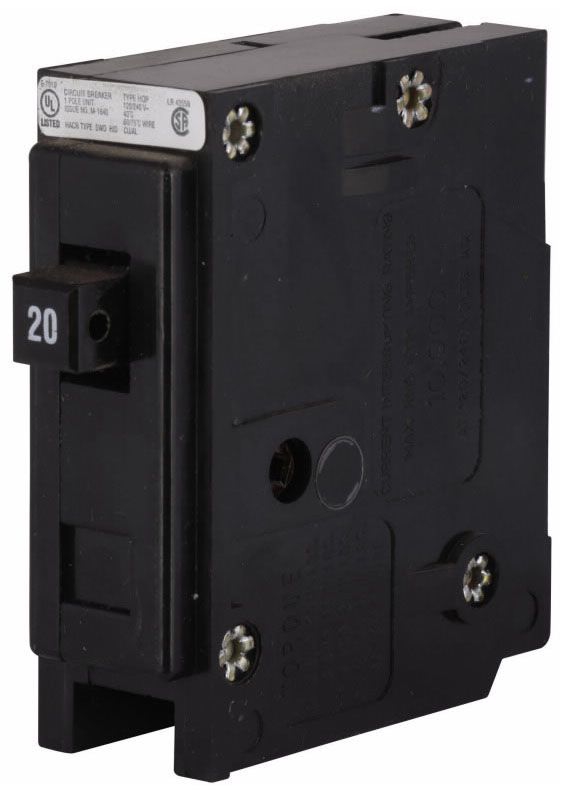

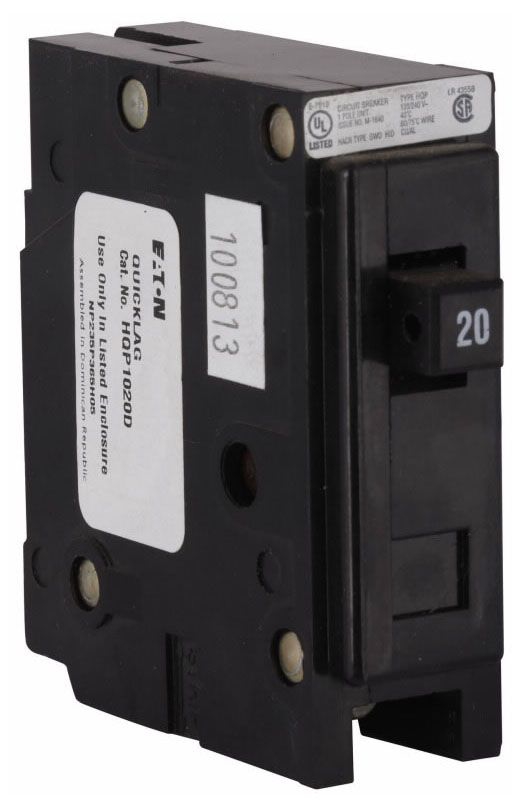

HQP1025 Eaton / Cutler-Hammer / Westinghouse Miniature Circuit Breakers

Item # HQP1025

HQP1025
  • HQP1025
  • HQP1025

NOTE: Images are for Reference Only

Product Specifications

Type
HQP
Amperage
25
Poles
1
Voltage
120/240

HQP1025 Description

TYPE HQP BREAKER 1P 25A 120/240VAC MAX 10KAIC Miniature Circuit Breakers from Eaton / Cutler-Hammer / Westinghouse

Features and Benefits

Additional Information:
Industrial Circuit Breaker; Type Thermal Magnetic, Miniature; Number of Poles 1; Voltage Rating 120/240 Volt AC 60 Hertz, 24/48/62.5 Volt DC; Current Rating 25 Amp at 40 Deg C; Interrupting Rating 10000 Amp at 120/240 Volt AC, 5000 Amp at 24 to 48 Volt DC; Terminal Type Steel Box Lug Standard Load; Wire Size 14 to 4 AWG Copper/Aluminum (Standard Load); Mounting Plug-On Female Clip Line; Approval UL 489, CSA; Humidity Rating 0 to 93 Percent (Non-Condensing); Application HACR, 120 Volt AC Switching Duty Fluorescent Light; Applicable Standard Federal Specification W-C-375b 10a/11a/12a
