HND3800T106W Eaton / Cutler-Hammer / Westinghouse Molded Case Circuit Breakers
Item # HND3800T106W

HND3800T106W

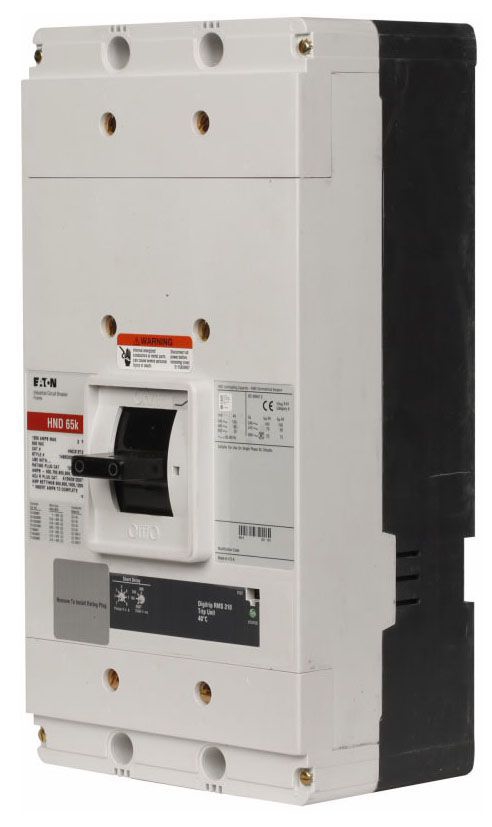

NOTE: Images are for Reference Only

Product Details and Specifications

Type HND
Amperage 800
Poles 3
Voltage 600

HND3800T106W Description

SERIES C N-FRAME MOLDED CASE CIRCUIT BREAKER 3P 800A CB Molded Case Circuit Breakers from Eaton / Cutler-Hammer / Westinghouse

Relectric Recommends RE-Certified Plus

RE-Certified

Re-Certified products have been previously energized and have undergone a detailed 12-point quality inspection and testing process to ensure the electrical, mechanical, and electromechanical components are functioning properly. RE-Certified products are are suitable for use as field replacements, retrofits, upgrades, and expansions. We test each of our RE-Certified products to industry standards and certify them to be operational when installed. RE-Certified products come with a Full 1-Year No-Hassle Warranty.

RE-Certified Plus

RE-Certified Plus products include additional quality control checks. RE-Certified Plus products are tested to NETA Specifications and have Restorative Screening performed. RE-Certified Plus products have a 100% Money Back Guarantee. RE-Certified Plus products have a Full 2-Year No-Hassle Warranty.

NETA Testing

Relectric offers NETA testing on all products. Testing performed by RESA Power Service, a NETA Accredited Company. NETA testing fees vary by product.

Buy Now

$7,779.00

Out of stock

$8,597.50

Out of stock

$14,500.00

Out of stock

Request A Quote

Do you need a quote for this or a similar product? Do you have a question or need more detail about this product?
Request Quote or Information

Extended Details

Interchangeable Trip Circuit Breaker; Type Electronic OPTIM 1050 Digitrip LSIG, Molded Case; Frame Type ND; Voltage Rating 600 Volt AC 50/60 Hertz; Maximum AC Voltage Rating 600 Volt; Current Rating 800 Amp at 40 Deg C; Number of Poles 3; Interrupting Rating 100 Kiloamp at 240 Volt AC, 65 Kiloamp at 480 Volt AC, 35 Kiloamp at 600 Volt AC (UL), 100 Kiloamp at 240 Volt AC, 70 Kiloamp at 415 Volt AC, 25 Kiloamp at 690 Volt AC (IEC); Terminal Type Line and Load; Size 8.25 Inch Width x 5.5 Inch Depth x 16 Inch Height; Approval UL 489, CSA C22.2; Excludes Terminal; Application HACR, Reverse Feed; Applicable Standard IEC 60947-2, SABS 156, SEV 157-1, NFC 63-120, VDE0660, Federal Specification W-C-375b
Electronic OPTIM 1050 Digitrip LSIG, Molded Case
ND
600 Volt AC 50/60 Hertz
600 Volt
800 Amp at 40 Deg C

Features and Benefits

Excludes Terminal; Application HACR, Reverse Feed; Applicable Standard IEC 60947-2, SABS 156, SEV 157-1, NFC 63-120, VDE0660, Federal Specification W-C-375b

Ask an expert

Ask An Expert

Our experts can help.

800.497.6255

Email

Summary

The HND3800T106W Eaton / Cutler-Hammer / Westinghouse Molded Case from Relectric

Relectric stocks new and used HND3800T106W Eaton / Cutler-Hammer / Westinghouse Molded Case and many more brand-name electrical supplies. All of our reconditioned HND3800T106W Eaton / Cutler-Hammer / Westinghouse Molded Case have been professionally tested and certified, and we guarantee their performance. You can also order your HND3800T106W Eaton / Cutler-Hammer / Westinghouse Molded Case configured to your specifications. Relectric also carries a large stock of replacement parts for the HND3800T106W Eaton / Cutler-Hammer / Westinghouse Molded Case. Contact one of our sales consultants today.
