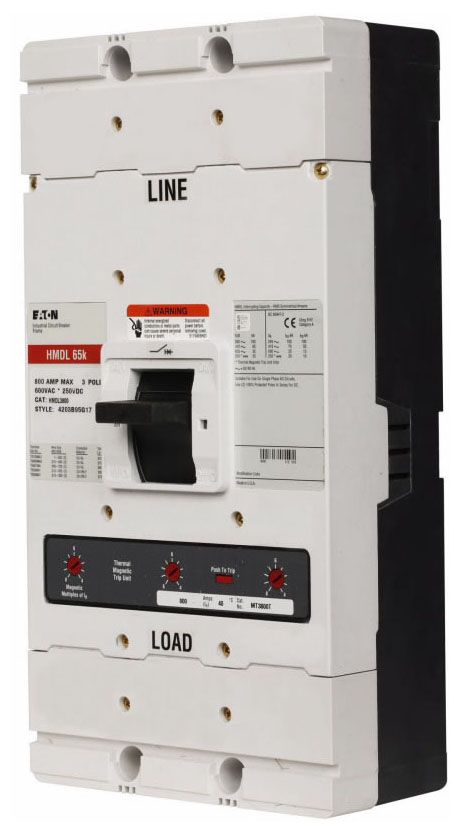

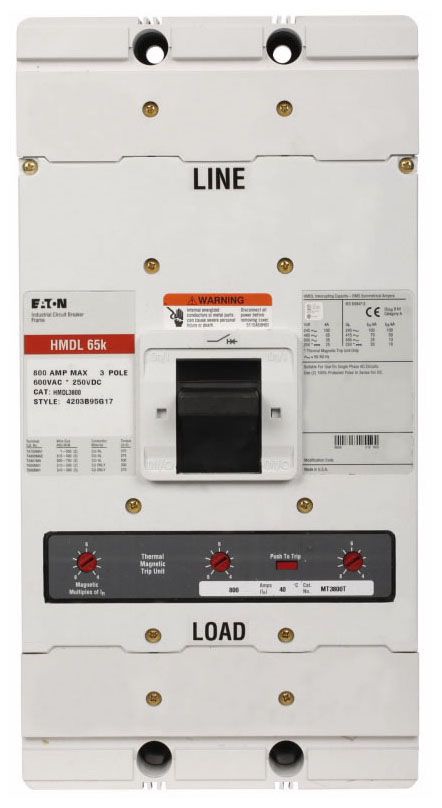

HMDL3800
SERIES C M-FRAME MOLDED CASE CIRCUIT BREAKER 3P 800A CB W/TERM

Description

MOLDED CASE, THERMAL MAGNETIC; HMDL FRAME; 600 VAC AT 50/60 HZ; 800 AMPERE AT 40 DEG C; 3 POLE; INTERRUPTING RATING 100 KILOAMPERE AT 240 VAC, 65 KILOAMPERE AT 480 VAC, 35 KILOAMPERE AT 600 VAC, 25 KILOAMPERE AT 250 VDC (UL/CSA); 100 KILOAMPERE AT 240 VAC, 65 KILOAMPERE AT 480 VAC, 25 KILOAMPERE AT 600 VAC, 20 KILOAMPERE AT 250 VDC (IEC); TERMINAL ALUMINUM/COPPER STANDARD PRESSURE LINE TERMINAL, STANDARD PRESSURE LOAD TERMINAL; SIZE 8.25 INCH W X 4.062 INCH D X 16 INCH H; HMDL MODEL; APPLICABLE STANDARD IEC 157-1; ICS RATING 100 KILOAMPERE AT 240 VAC, 65 KILOAMPERE AT 480 VAC, 25 KILOAMPERE AT 600 VAC, 20 KILOAMPERE AT 250 VDC (IEC) Molded Case from Eaton / Cutler-Hammer / Westinghouse
