America's First Call for Commercial / Industrial Circuit Breakers & Other Electrical Parts.

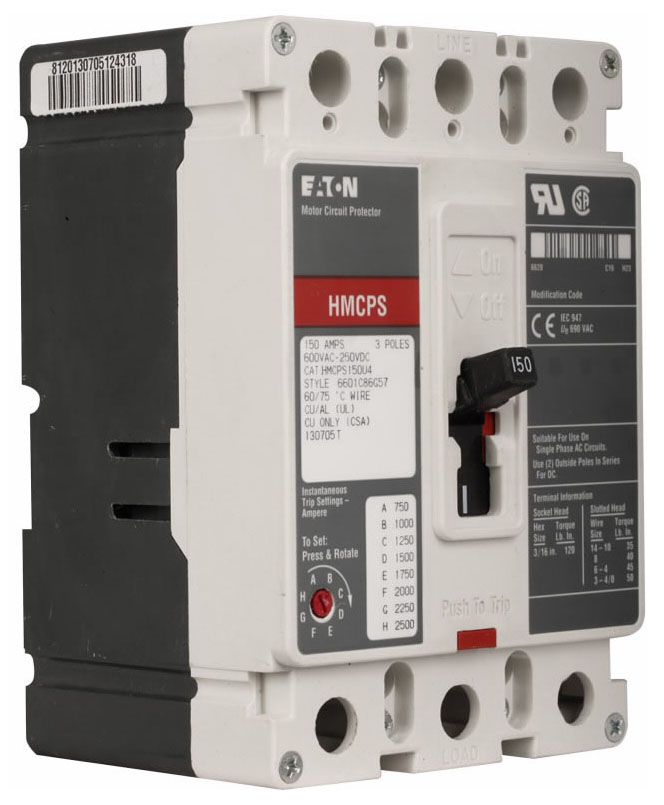

HMCPS003A0C Eaton / Cutler-Hammer / Westinghouse Molded Case Circuit Breakers

Item # HMCPS003A0C

HMCPS003A0C
  • HMCPS003A0C
  • HMCPS003A0C
  • HMCPS003A0C
  • HMCPS003A0C

NOTE: Images are for Reference Only

Product Specifications

Type
HMCP
Amperage
3
Poles
3
Voltage
600

HMCPS003A0C Description

SERIES C, F-FRAME MOTOR CIRCUIT PROTECTOR TYPE HMCP BRKR AD Molded Case Circuit Breakers from Eaton / Cutler-Hammer / Westinghouse

Features and Benefits

Additional Information:
Molded Case Circuit Breaker Motor Circuit Protector; Type Magnetic; Voltage Rating 600 Volt AC, 250 Volt DC; Maximum AC Voltage Rating 600 Volt; Maximum DC Voltage Rating 250 Volt; Current Rating 3 Amp; Number of Poles 3; Trip Setting 9 to 30 Amp; Starter Size NEMA 0; Motor FLA 0.69 to 2.5 Amp; Terminal Type Non-Aluminum Line and Load; Size 5.1 Inch Width x 7.6 Inch Depth x 4.8 Inch Height; Approval UL 489, CSA C22.2, CE; Applicable Standard IEC 157-1
