Loading Circuit Breaker Detail

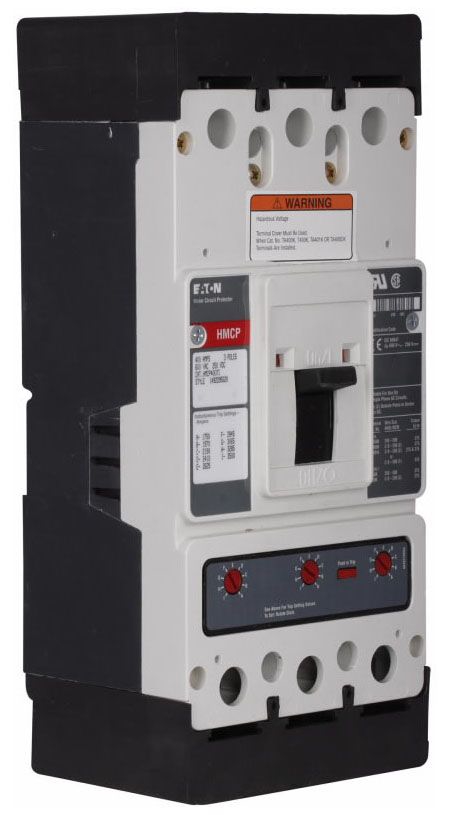

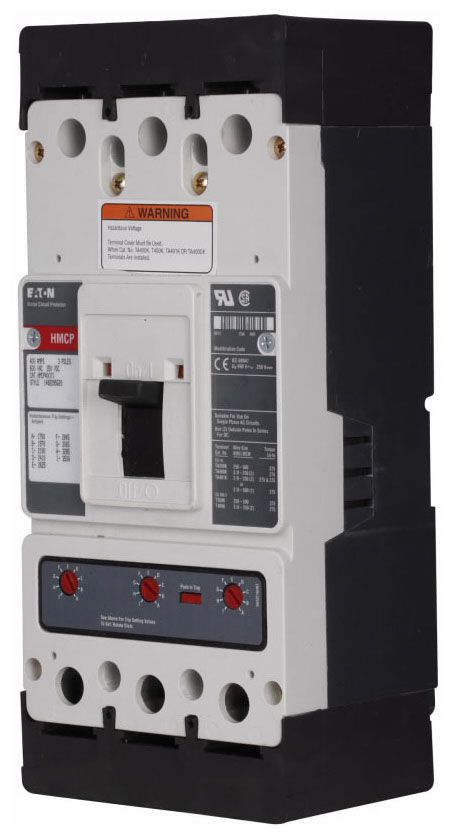

HMCP400R5C Eaton / Cutler-Hammer / Westinghouse Molded Case Circuit Breakers

Item # HMCP400R5C

NOTE: Images are for Reference Only

Product Specifications

Type
HMCP
Amperage
400
Poles
3
Voltage
600

HMCP400R5C Description

SERIES C, K-FRAME MOTOR CIRCUIT PROTECTOR 3P 400A CB Molded Case Circuit Breakers from Eaton / Cutler-Hammer / Westinghouse

Features and Benefits

Additional Information:
Molded Case Circuit Breaker Motor Circuit Protector; Type Magnetic; Frame Type K; Voltage Rating 600 Volt AC, 250 Volt DC; Maximum AC Voltage Rating 600 Volt; Maximum DC Voltage Rating 250 Volt; Current Rating 400 Amp; Number of Poles 3; Trip Setting 1750 to 3500 Amp; Starter Size NEMA 5; Motor FLA 134.7 to 285.7 Amp; Terminal Type Non-Aluminum Line and Load; Size 7 Inch Width x 14 Inch Depth x 6 Inch Height; Approval UL 489, CSA C22.2, CE; Applicable Standard IEC 157-1
