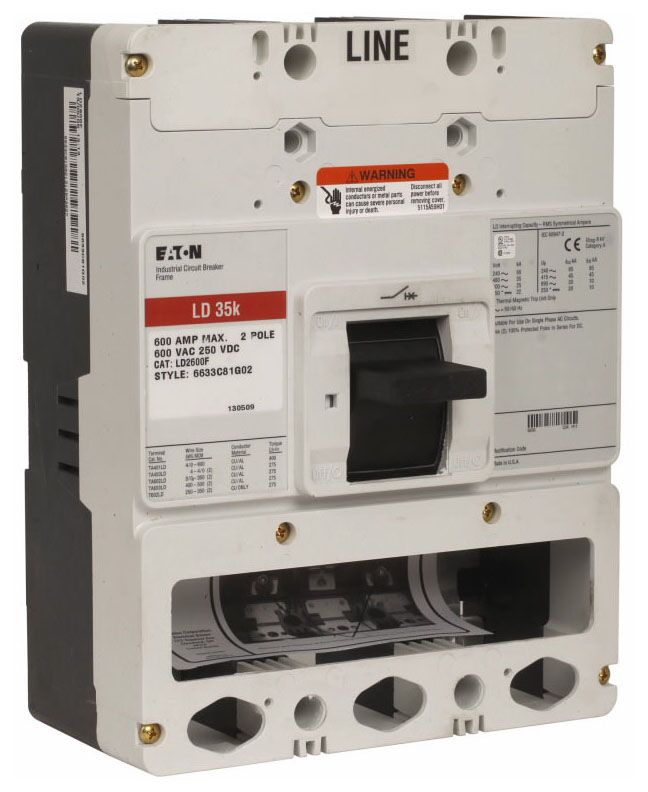

HLD2600 Eaton / Cutler-Hammer / Westinghouse Molded Case Circuit Breakers

Item # HLD2600

HLD2600
  • HLD2600
  • HLD2600

NOTE: Images are for Reference Only

Product Specifications

Type
HLD
Amperage
600
Poles
2
Voltage
600

HLD2600 Description

SERIES C L-FRAME MOLDED CASE CIRCUIT BREAKER 2P 600A CB Molded Case Circuit Breakers from Eaton / Cutler-Hammer / Westinghouse

Features and Benefits

Additional Information:
Interchangeable Trip Circuit Breaker; Type Thermal Magnetic, High Interrupting Capacity, Molded Case; Frame Type LD; Voltage Rating 600 Volt AC 50/60 Hertz, 250 Volt DC; Maximum AC Voltage Rating 600 Volt; Maximum DC Voltage Rating 250 Volt; Current Rating 600 Amp at 40 Deg C; Number of Poles 2; Interrupting Rating 100 Kiloamp at 240 Volt AC, 65 Kiloamp at 480 Volt AC, 35 Kiloamp at 600 Volt AC, 25 Kiloamp at 250 Volt DC (UL), 100 Kiloamp at 240 Volt AC, 70 Kiloamp at 415 Volt AC, 25 Kiloamp at 690 Volt AC, 20 Kiloamp at 250 Volt DC (IEC); Terminal Type Aluminum Line and Load; Size 8.25 Inch Width x 4.06 Inch Depth x 10.75 Inch Height; Approval UL 489, CSA 22.2, CE; Application HACR; Applicable Standard IEC 60947-2, SABS 156, SEV 157-1, NFC 63-120, VDE0660, Federal Specification W-C-375b 23a
