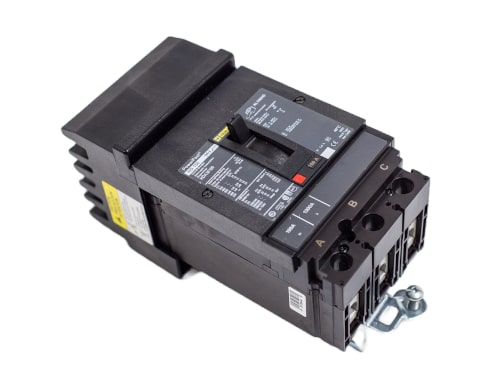

HLA36100 Square D / Schneider Electric Molded Case Circuit Breakers
Item # HLA36100

HLA36100

NOTE: Images are for Reference Only

Product Details and Specifications

Type HLA
Amperage 100
Poles 3
Voltage 600
Short Circ Int Cap 100kA@480V
Configuration I-Line

HLA36100 Description

Square D, Circuit Breaker, Molded Case, PowerPact H, 100A, 3P, 600VAC/500VDC, Line Side I-Line Connection, Phase Connection ABC, Load Side Lugs, 14-3/0 AWG Al/Cu, Thermal Magnetic, 80% Rated, Interrupting Current 125k at 240V / 100k at 480V / 50k at 600V Molded Case Circuit Breakers from Square D / Schneider Electric

Relectric Recommends RE-Certified Plus

RE-Certified

Re-Certified products have been previously energized and have undergone a detailed 12-point quality inspection and testing process to ensure the electrical, mechanical, and electromechanical components are functioning properly. RE-Certified products are are suitable for use as field replacements, retrofits, upgrades, and expansions. We test each of our RE-Certified products to industry standards and certify them to be operational when installed. RE-Certified products come with a Full 1-Year No-Hassle Warranty.

RE-Certified Plus

RE-Certified Plus products include additional quality control checks. RE-Certified Plus products are tested to NETA Specifications and have Restorative Screening performed. RE-Certified Plus products have a 100% Money Back Guarantee. RE-Certified Plus products have a Full 2-Year No-Hassle Warranty.

NETA Testing

Relectric offers NETA testing on all products. Testing performed by RESA Power Service, a NETA Accredited Company. NETA testing fees vary by product.

Buy Now

Call For Best Price

Ships in 0-2 Working Days

Call For Best Price

Ships in 0-2 Working Days

Call For Best Price

Ships in 0-2 Working Days

Request A Quote

Do you need a quote for this or a similar product? Do you have a question or need more detail about this product?
Request Quote or Information

Extended Details

600 VAC 50/60 Hz, 250 VDC, 100 A, 50 kA, 3-Pole, H-Frame, ABC Phase, Line Lug Load Terminal, Thermal Magnetic, Current Limiting, Panelboard Molded Case Circuit Breaker
Thermal Magnetic, Current Limiting
600 Volt AC 50/60 Hertz, 250 Volt DC
100 Amp
3
50 Kiloamp at 600 Volt AC, 20 Kiloamp at 250 Volt DC

Features and Benefits

The Powerpact H-Frame Circuit Breakers are Designed to Protect Electrical Systems from Damage Caused by Overloads and Short Circuits; H-Frame Circuit Breakers are Either Thermal-magnetic or Micrologic Electronic Trip Units; All Powerpact H-Frame Circuit Breakers are Equipped with Dual-Break Rotating Contacts that Reduce the Amount of Peak Current During a Short Circuit Fault; All Powerpact Circuit Breakers have an Integral Push to Trip Button in the Cover to Manually Trip the Circuit Breaker; HACR Rated; RoHS/REACH Compliant; Mercury-Free; PVC-Free; Green Premium Product
RoHS/REACH Compliant; Overall Dimension 4.09 Inch Width x 3.39 Inch Depth x 6.42 Inch Height; Frame Type H; Terminal Type I-Line Connection Line Lug Load; Control Type Toggle; Terminal Wire Size 14 to 3/0 AWG (Copper/Aluminum); Continuous Current Rating 80 Percent; Phase Connection Type ABC; Operation Ambient Air Temperature Rating 28 to 158 Deg F

Ask an expert

Ask An Expert

Our experts can help.

800.497.6255

Email

Summary

The HLA36100 Square D / Schneider Electric Molded Case from Relectric

Relectric stocks new and used HLA36100 Square D / Schneider Electric Molded Case and many more brand-name electrical supplies. All of our reconditioned HLA36100 Square D / Schneider Electric Molded Case have been professionally tested and certified, and we guarantee their performance. You can also order your HLA36100 Square D / Schneider Electric Molded Case configured to your specifications. Relectric also carries a large stock of replacement parts for the HLA36100 Square D / Schneider Electric Molded Case. Contact one of our sales consultants today.
