HKD3100 Eaton / Cutler-Hammer / Westinghouse Molded Case Circuit Breakers

Item # HKD3100

HKD3100
  • HKD3100
  • HKD3100

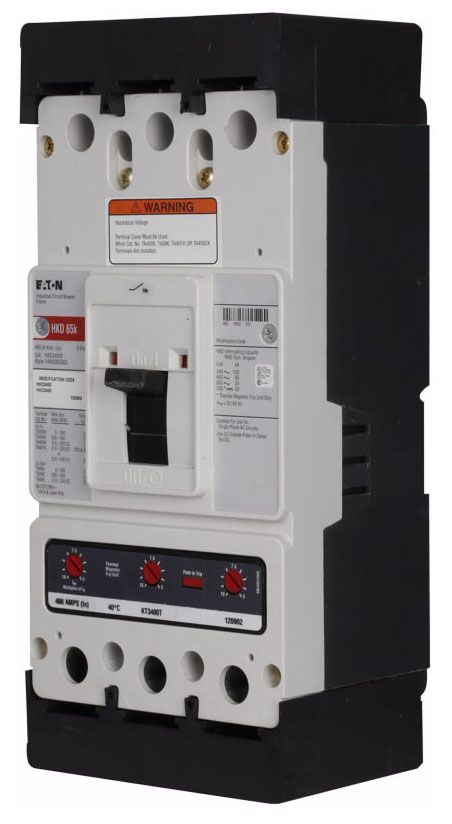

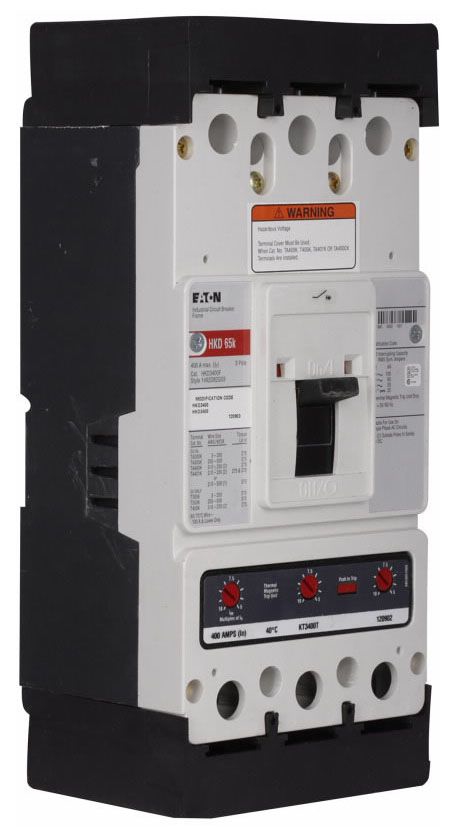

NOTE: Images are for Reference Only

Product Specifications

Type
HKD
Amperage
100
Poles
3
Voltage
600

HKD3100 Description

SERIES C K-FRAME MOLDED CASE CIRCUIT BREAKER 3P 100A CB Molded Case Circuit Breakers from Eaton / Cutler-Hammer / Westinghouse

Features and Benefits

Additional Information:
Interchangeable Trip Circuit Breaker; Type Thermal Magnetic, High Interrupting Capacity, Molded Case; Frame Type KD; Voltage Rating 600 Volt AC 50/60 Hertz, 250 Volt DC; Maximum AC Voltage Rating 600 Volt; Maximum DC Voltage Rating 250 Volt; Current Rating 100 Amp at 40 Deg C; Number of Poles 3; Interrupting Rating 100 Kiloamp at 240 Volt AC, 65 Kiloamp at 480 Volt AC, 35 Kiloamp at 600 Volt AC, 22 Kiloamp at 250 Volt DC (NEMA/UL/CSA), 100 Kiloamp at 240 Volt AC, 65 Kiloamp at 380/415 Volt AC, 22 Kiloamp at 250 Volt DC (IEC); Terminal Type Line and Load; Size 5.49 Inch Width x 4.06 Inch Depth x 10.13 Inch Height; Approval UL 489, CSA C22.2; Application HACR; Applicable Standard IEC 60947-2, SABS 156, SEV 157-1, NFC 63-120, VDE0660, Federal Specification W-C-375b 23a
