HJL36100 Square D / Schneider Electric Molded Case Circuit Breakers

Item # HJL36100

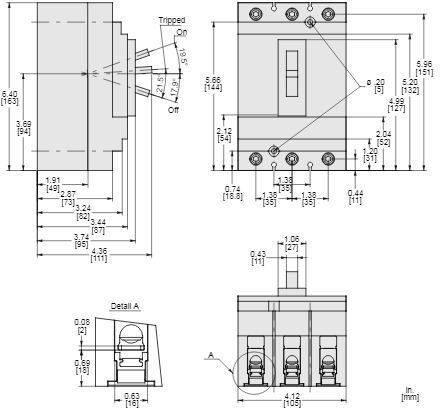

NOTE: Images are for Reference Only

Product Specifications

Type
HJL
Amperage
100
Poles
3
Voltage
600
Short Circ Int Cap
65kA@480V
Configuration
Line + Load Lugs

HJL36100 Description

Square D, Circuit Breaker, Molded Case, PowerPact H, 100A, 3P, 600VAC/500VDC, Line Side Lugs, Load Side Lugs, 14-3/0 AWG Al/Cu, Thermal Magnetic, 80% Rated, Interrupting Current 100k at 240V / 65k at 480V / 25k at 600V Molded Case Circuit Breakers from Square D / Schneider Electric
