HJD3090 Eaton / Cutler-Hammer / Westinghouse Molded Case Circuit Breakers

Item # HJD3090

HJD3090
  • HJD3090
  • HJD3090

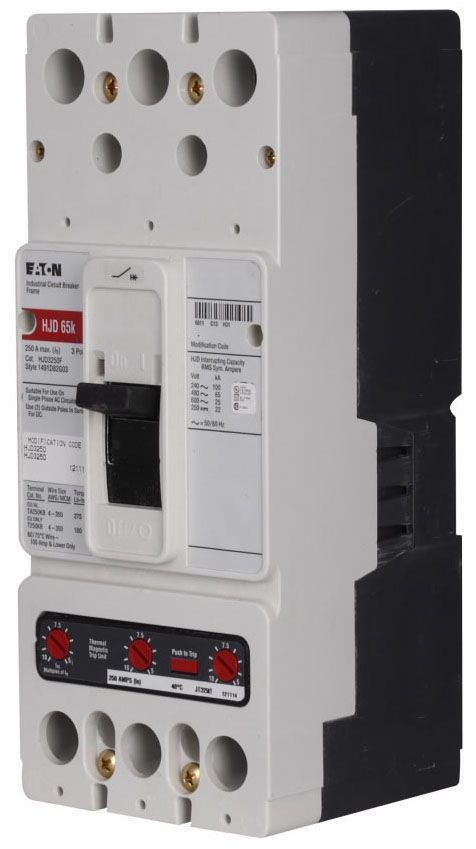

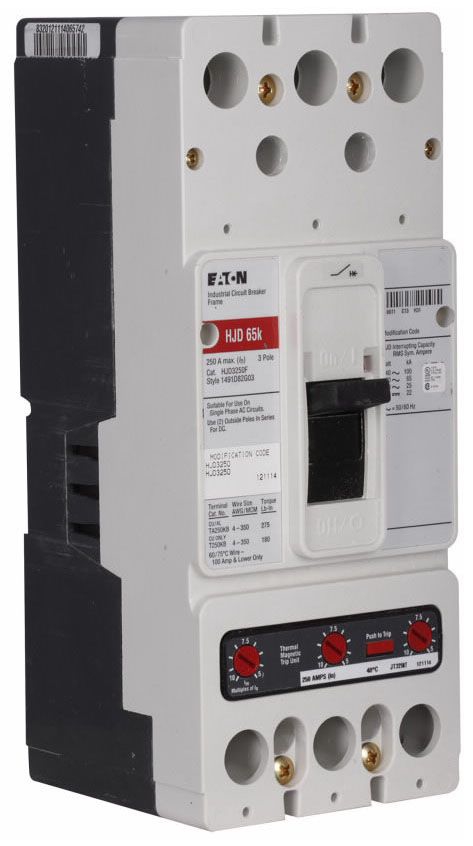

NOTE: Images are for Reference Only

Product Specifications

Type
HJD
Amperage
90
Poles
3
Voltage
600
Short Circ Int Cap
65kA@480V

HJD3090 Description

SERIES C J-FRAME MOLDED CASE CIRCUIT BREAKER 3P 90A CB Molded Case Circuit Breakers from Eaton / Cutler-Hammer / Westinghouse

Features and Benefits

Additional Information:
Interchangeable Trip Circuit Breaker; Type Thermal Magnetic, High Interrupting Capacity, Molded Case; Frame Type JD; Voltage Rating 600 Volt AC 50/60 Hertz, 250 Volt DC; Maximum AC Voltage Rating 600 Volt; Maximum DC Voltage Rating 250 Volt; Current Rating 90 Amp at 40 Deg C; Number of Poles 3; Interrupting Rating 100 Kiloamp at 240 Volt AC, 65 Kiloamp at 480 Volt AC, 25 Kiloamp at 600 Volt AC, 22 Kiloamp at 250 Volt DC (UL), 100 Kiloamp at 240 Volt AC, 65 Kiloamp at 380/415 Volt AC, 22 Kiloamp at 250 Volt DC (IEC); Terminal Type Aluminum Line and Load; Size 4.13 Inch Width x 4.06 Inch Depth x 10 Inch Height; Approval UL 489, CSA C22.2; Application HACR, Switchboard; Applicable Standard IEC 60947-2, SABS 156, SEV 157-1, NFC 63-120, VDE0660, Federal Specification W-C-375b 22a
