HGL36080 Square D / Schneider Electric Molded Case Circuit Breakers

Item # HGL36080

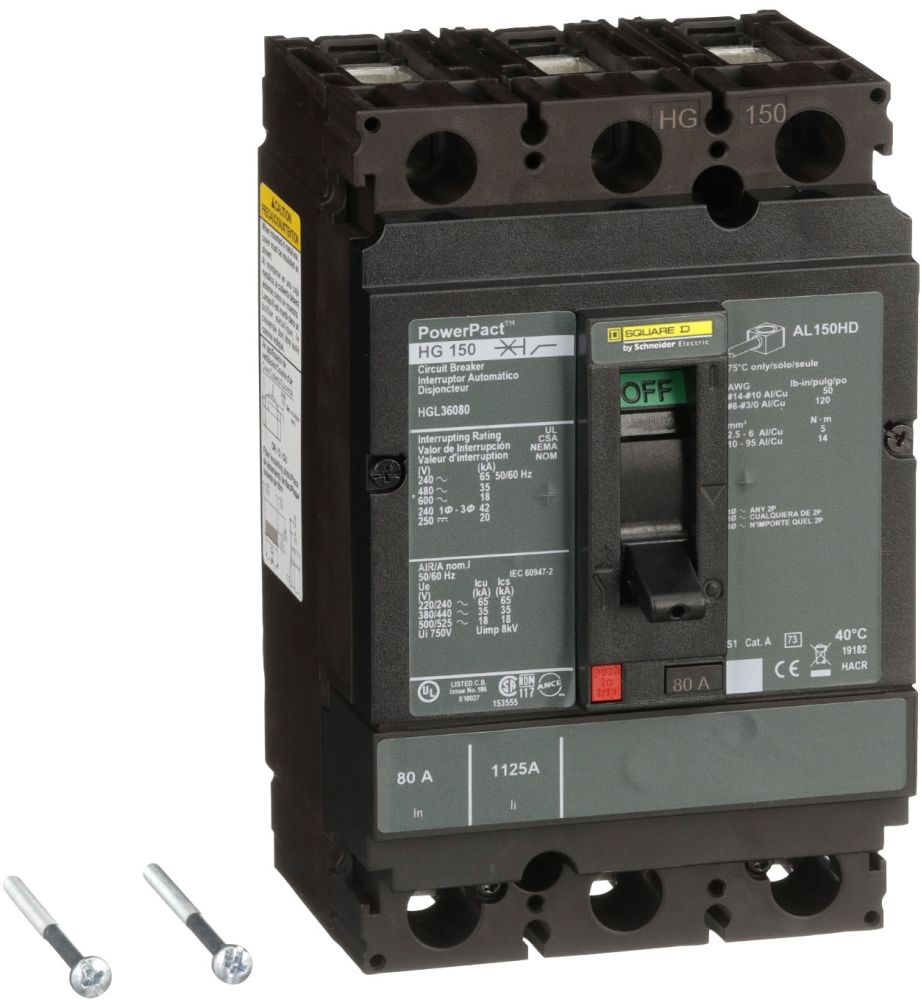

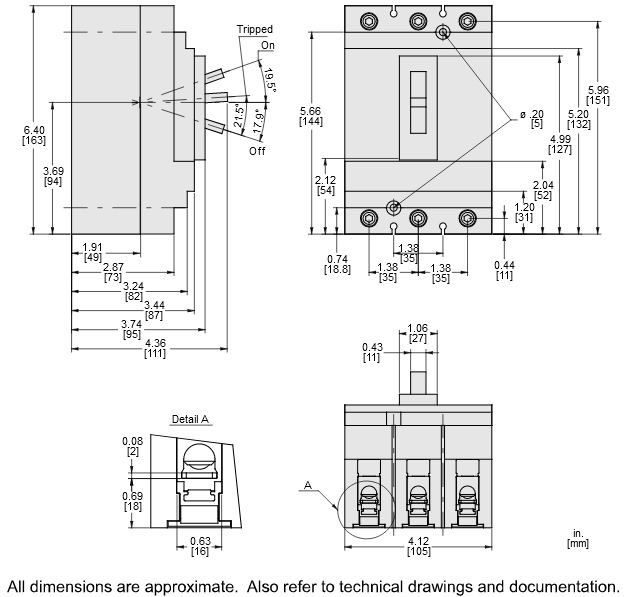

NOTE: Images are for Reference Only

Product Specifications

Type
HGL
Amperage
80
Poles
3
Voltage
600
Short Circ Int Cap
35kA@480V
Configuration
Line + Load Lugs
Feature 1
80% Rated

HGL36080 Description

Square D, Molded Case, Circuit Breaker, Powerpact, Type HGL, 80A, 3P, 600VAC, Line + Load Lugs, Thermal Magnetic, Interrupting Capacity: 65k at 240V / 35k at 480V / 18k at 600V, 80% Rated Molded Case Circuit Breakers from Square D / Schneider Electric
