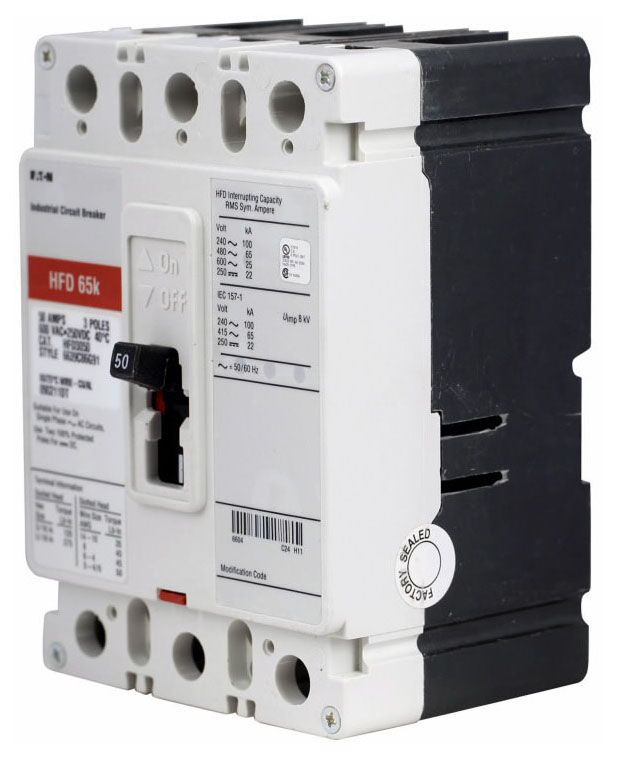

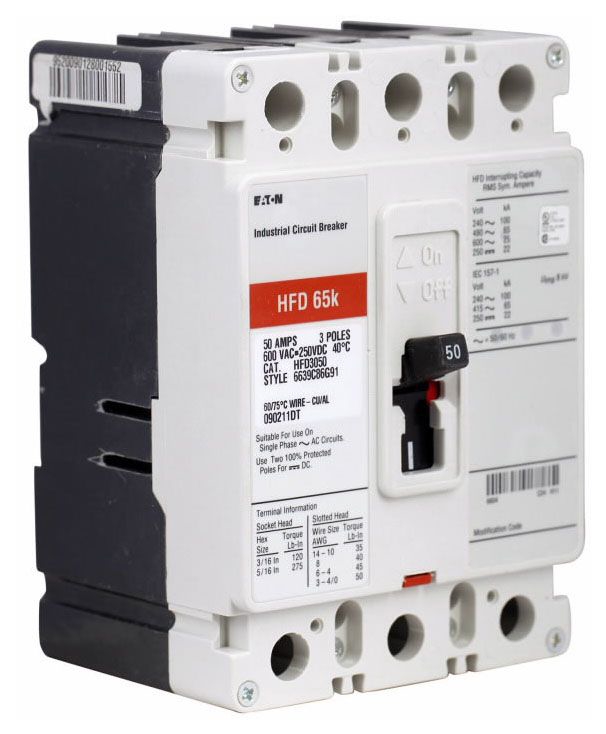

HFD3030 Eaton / Cutler-Hammer / Westinghouse Molded Case Circuit Breakers
Item # HFD3030

HFD3030
HFD3030
HFD3030

NOTE: Images are for Reference Only

Product Details and Specifications

Type HFD
Amperage 30
Poles 3
Voltage 600
Short Circ Int Cap 65kA@480V
Configuration Bolt-On

HFD3030 Description

Eaton, Molded Case, Circuit Breakers, Type HFD, 30A, 3P, 600 VAC, Bolt-On, Thermal Magnetic, Interrupting Current: 100 kA at 240 VAC / 65 kA at 480 VAC / 25 kA at 600 VAC / 22 kA at 250 VDC Molded Case Circuit Breakers from Eaton / Cutler-Hammer / Westinghouse

Relectric Recommends RE-Certified Plus

RE-Certified

Re-Certified products have been previously energized and have undergone a detailed 12-point quality inspection and testing process to ensure the electrical, mechanical, and electromechanical components are functioning properly. RE-Certified products are are suitable for use as field replacements, retrofits, upgrades, and expansions. We test each of our RE-Certified products to industry standards and certify them to be operational when installed. RE-Certified products come with a Full 1-Year No-Hassle Warranty.

RE-Certified Plus

RE-Certified Plus products include additional quality control checks. RE-Certified Plus products are tested to NETA Specifications and have Restorative Screening performed. RE-Certified Plus products have a 100% Money Back Guarantee. RE-Certified Plus products have a Full 2-Year No-Hassle Warranty.

NETA Testing

Relectric offers NETA testing on all products. Testing performed by RESA Power Service, a NETA Accredited Company. NETA testing fees vary by product.

Buy Now

$535.52

94 in stock

$696.18

Ships in 0-2 Working Days

$995.00

Ships in 0-2 Working Days

Call For Best Price

Ships in 0-2 Working Days

Request A Quote

Do you need a quote for this or a similar product? Do you have a question or need more detail about this product?
Request Quote or Information

Extended Details

600 VAC 50/60 Hz, 250 VDC, 30 A, 100/65 kA Interrupt Rating, 3-Pole, F-Frame, Load Side Terminal, Fixed Thermal Magnetic, Molded Case, Non-Interchangeable Trip Circuit Breaker
Molded Case, Fixed Thermal Magnetic
F
600 Volt AC 50/60 Hertz, 250 Volt DC
600 Volt
250 Volt

Features and Benefits

All Eaton's F-Frame Circuit Breakers are HACR Rated; All Circuit Breakers 10 Through 30 Amperes are Suitable for HID (High Intensity Discharge) Use; All F-Frame Circuit Breakers are Suitable for Reverse Feed Use
Application Panelboard, Switchboard, Motor Control Center, HACR; Applicable Standard IEC 60947-2, SABS 156, SEV 157-1, NFC 63-120, VDE0660, Federal Specification W-C-375b 22a

Ask an expert

Ask An Expert

Our experts can help.

800.497.6255

Email

Summary

The HFD3030 Eaton / Cutler-Hammer / Westinghouse Molded Case from Relectric

Relectric stocks new and used HFD3030 Eaton / Cutler-Hammer / Westinghouse Molded Case and many more brand-name electrical supplies. All of our reconditioned HFD3030 Eaton / Cutler-Hammer / Westinghouse Molded Case have been professionally tested and certified, and we guarantee their performance. You can also order your HFD3030 Eaton / Cutler-Hammer / Westinghouse Molded Case configured to your specifications. Relectric also carries a large stock of replacement parts for the HFD3030 Eaton / Cutler-Hammer / Westinghouse Molded Case. Contact one of our sales consultants today.
