HDL36125 Square D / Schneider Electric Molded Case Circuit Breakers

Item # HDL36125

HDL36125
  • HDL36125
  • HDL36125

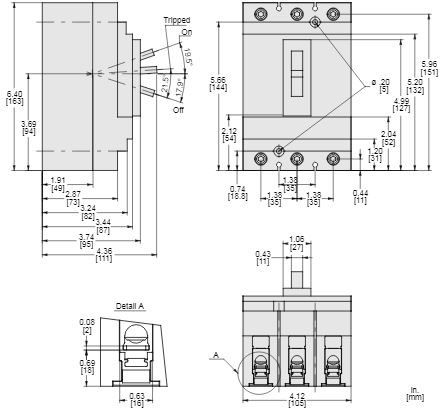

NOTE: Images are for Reference Only

Product Specifications

Type
HDL
Amperage
125
Poles
3
Voltage
600
Short Circ Int Cap
18kA@480V
Configuration
Line + Load Lugs

HDL36125 Description

Square D, Circuit Breaker, Molded Case, PowerPact H, 125A, 3P, 600VAC/500VDC, Line Side Lugs, Load Side Lugs, 14-3/0 AWG Al/Cu, Thermal Magnetic, 80% Rated, Interrupting Current 25k at 240V / 18k at 480V / 14k at 600V Molded Case Circuit Breakers from Square D / Schneider Electric

Features and Benefits

Features/Benefits:
Powerpact H-Frame Circuit Breakers are Designed to Protect Electrical Systems from Damage Caused by Overloads and Short Circuits; Powerpact H-Frame Circuit Breakers are Available with Either Thermal Magnetic or Micrologic Electronic Trip Protection Units; This Powerpact H-Frame Circuit Breaker Provides Thermal Magnetic Circuit Protection with a Breaking Capacity of 14 Kiloamp at 600 Volt AC; All Powerpact H-Frame Circuit Breakers are Equipped with Dual Break Rotating Contacts that Reduce the Amount of Peak Current During a Short Circuit Fault; All Powerpact Circuit Breakers have an Integral Push to Trip Button in the Cover to Manually Trip the Circuit Breaker; HACR Rated; RoHS/REACH Compliant; Mercury-Free; PVC-Free; Green Premium Product
Additional Information:
600 VAC 50/60 Hz, 250 VDC, 125 A, 14 kA, 3-Pole, H-Frame, Unit Mount, Line/Load Lug Terminal, Thermal Magnetic, Current Limiting, Molded Case Circuit Breaker
