Loading Circuit Breaker Detail

HDL36070 Square D / Schneider Electric Molded Case Circuit Breakers

Item # HDL36070

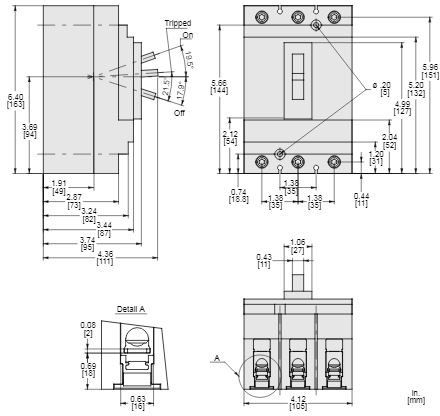

NOTE: Images are for Reference Only

Product Specifications

Type
HDL
Amperage
70
Poles
3
Voltage
600
Short Circ Int Cap
18kA@480V
Configuration
Line + Load Lugs

HDL36070 Description

Square D, Circuit Breaker, Molded Case, PowerPact H, 70A, 3P, 600VAC/500VDC, Line Side Lugs, Load Side Lugs, 14-3/0 AWG Al/Cu, Thermal Magnetic, 80% Rated, Interrupting Current 25k at 240V / 18k at 480V / 14k at 600V Molded Case Circuit Breakers from Square D / Schneider Electric
