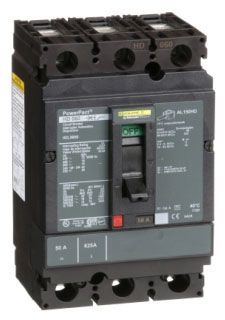

HDL36050 Square D / Schneider Electric Molded Case Circuit Breakers

Item # HDL36050

HDL36050

NOTE: Images are for Reference Only

Product Specifications

Type
HDL
Amperage
50
Poles
3
Voltage
600
Short Circ Int Cap
18kA@480V
Configuration
Line + Load Lugs

HDL36050 Description

Square D, Circuit Breaker, Molded Case, PowerPact H, 50A, 3P, 600VAC/500VDC, Line Side Lugs, Load Side Lugs, 14-3/0 AWG Al/Cu, Thermal Magnetic, 80% Rated, Interrupting Current 25k at 240V / 18k at 480V / 14k at 600V Molded Case Circuit Breakers from Square D / Schneider Electric

Features and Benefits

Features/Benefits:
Utilizes Two Methods to Detect Electrical Faults - Electromagnet's and Bimetal Switch; The Current Capacity that this Circuit Breaker is Able to Interrupt before Breaking is 14 Kiloamp; Product Characteristics Conformity is Certified by the Underwriters Laboratories (UL); Utilizes 4.5 Inch of the I-Line Mounting Space; HACR Rated; PVC-Free; Mercury-Free; Green Premium Products; RoHS/REACH Compliant
Additional Information:
600 VAC 50/60 Hz, 250/500 VDC, 50 A, 14 kA Interrupt Rating, 14 to 3/0 AWG Aluminum/Copper, 3-Pole, H-Frame, Line/Load Lug Terminal, Thermal Magnetic, Molded Case, Circuit Breaker
