GHB3015 Eaton / Cutler-Hammer / Westinghouse Molded Case Circuit Breakers
Item # GHB3015

GHB3015
GHB3015
GHB3015

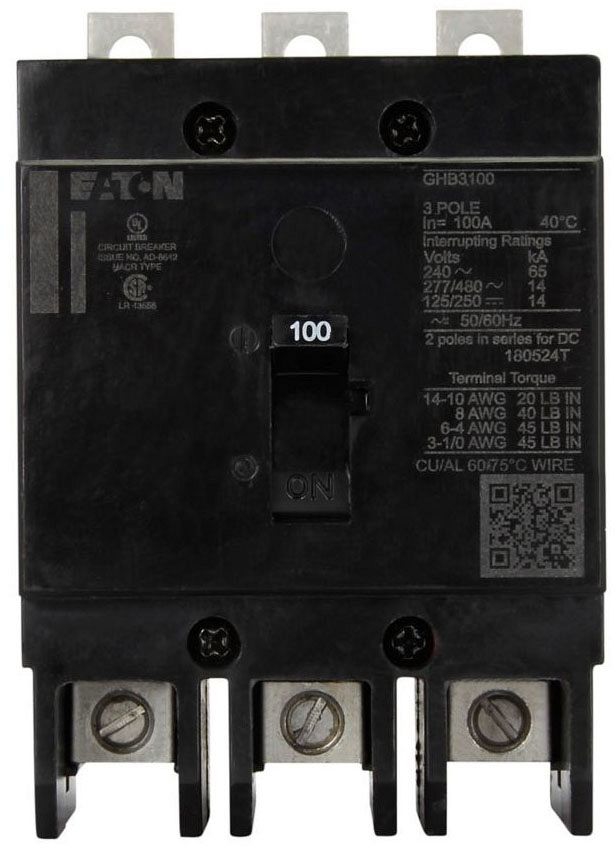

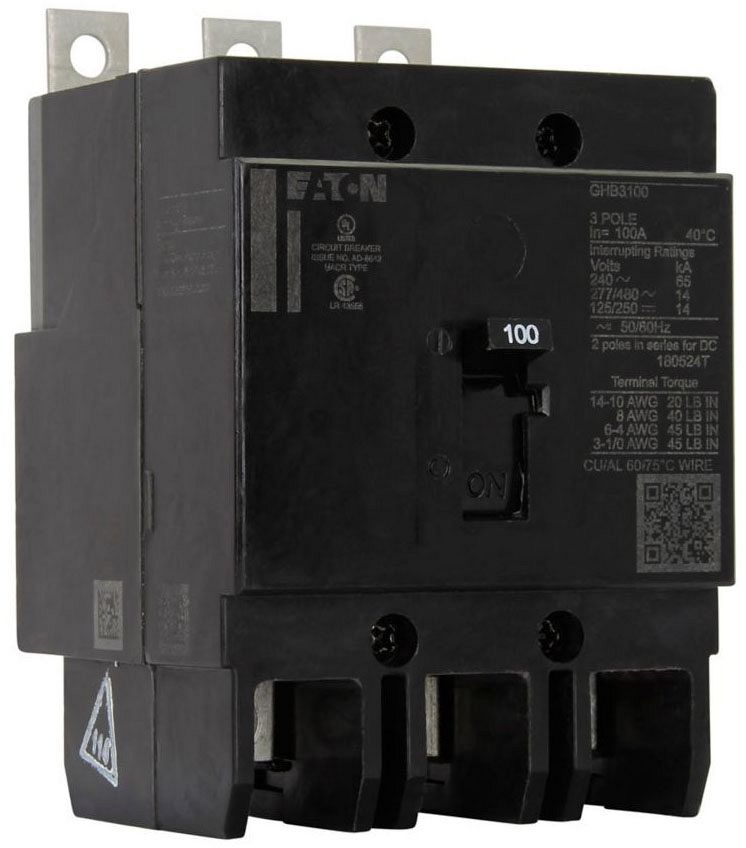

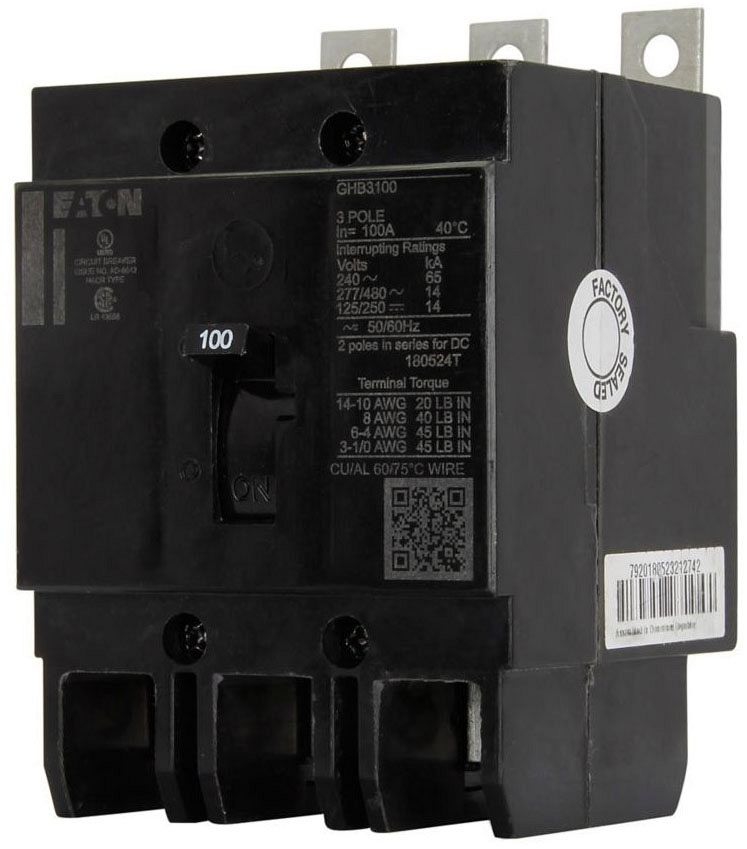

NOTE: Images are for Reference Only

Product Details and Specifications

Type GHB
Amperage 15
Poles 3
Voltage 480
Short Circ Int Cap 14kA@480V
Configuration Bolt-On

GHB3015 Description

Eaton, Molded Case, Circuit Breakers, Type GHB, 15A, 3P, 480 VAC, Bolt-On, Thermal Magnetic, Interrupting Current: 65 kA at 240 VAC / 14 kA at 480 VAC / 14 kA at 250 VDC Molded Case Circuit Breakers from Eaton / Cutler-Hammer / Westinghouse

Relectric Recommends RE-Certified Plus

RE-Certified

Re-Certified products have been previously energized and have undergone a detailed 12-point quality inspection and testing process to ensure the electrical, mechanical, and electromechanical components are functioning properly. RE-Certified products are are suitable for use as field replacements, retrofits, upgrades, and expansions. We test each of our RE-Certified products to industry standards and certify them to be operational when installed. RE-Certified products come with a Full 1-Year No-Hassle Warranty.

RE-Certified Plus

RE-Certified Plus products include additional quality control checks. RE-Certified Plus products are tested to NETA Specifications and have Restorative Screening performed. RE-Certified Plus products have a 100% Money Back Guarantee. RE-Certified Plus products have a Full 2-Year No-Hassle Warranty.

NETA Testing

Relectric offers NETA testing on all products. Testing performed by RESA Power Service, a NETA Accredited Company. NETA testing fees vary by product.

Buy Now

$532.17

17 in stock

$691.82

Ships in 0-2 Working Days

$673.58

6 in stock

Request A Quote

Do you need a quote for this or a similar product? Do you have a question or need more detail about this product?
Request Quote or Information

Extended Details

480 Star/277 VAC 50/60 Hz, 125/250 VDC, 15 A, 14 kA Interrupt Rating, 3-Pole, G-Frame, Screw Type Plated Steel Clamp Terminal, Fixed Thermal Magnetic, Molded Case, Non-Interchangeable Trip Circuit Breaker
Molded Case, Fixed Thermal Magnetic
G
480 Star/277 Volt AC 50/60 Hertz, 125/250 Volt DC
480 Volt
250 Volt

Features and Benefits

All 2 and 3-Pole Circuit Breakers are of the Common Trip Type, on All 3-Phase Delta (240 Volt) Grounded B Phase Applications, Refer to Eaton; All G-Frame Circuit Breakers are Suitable for Reverse Feed Use; HACR Rated
Application Panelboard, Switchboard, Motor Control Center, HACR; Applicable Standard IEC 60947-2, SABS 156, SEV 157-1, NFC 63-120, VDE0660, Federal Specification W-C-375b 15b
