GHB1090 Eaton / Cutler-Hammer / Westinghouse Molded Case Circuit Breakers

Item # GHB1090

GHB1090
  • GHB1090
  • GHB1090

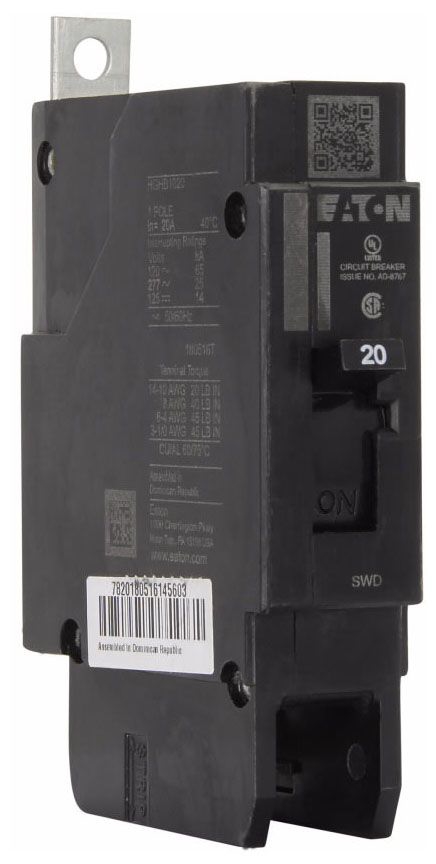

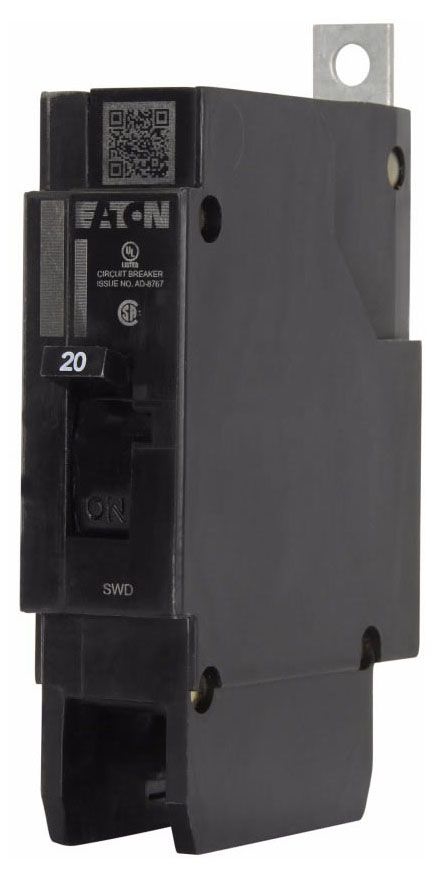

NOTE: Images are for Reference Only

Product Specifications

Type
GHB
Amperage
90
Poles
1
Voltage
277/480

GHB1090 Description

Eaton, Molded Case, Circuit Breaker, Series C, Type GHB, 90A, 1P, 277/480 VAC, Bolt-On, Thermal Magnetic Molded Case Circuit Breakers from Eaton / Cutler-Hammer / Westinghouse

Features and Benefits

Additional Information:
Non-Interchangeable Trip Circuit Breaker; Type Fixed Thermal Magnetic, Molded Case; Frame Type G; Voltage Rating 277 Volt AC 50/60 Hertz, 125 Volt DC; Maximum AC Voltage Rating 277 Volt; Maximum DC Voltage Rating 125 Volt; Current Rating 90 Amp at 40 Deg C; Number of Poles 1; Interrupting Rating 65 Kiloamp at 120/240 Volt AC, 14 Kiloamp at 125 Volt DC; Terminal Type Steel Pressure Line and Load; Size 1 Inch Width x 2.81 Inch Depth x 4.88 Inch Height; Approval UL 489, CSA C22.2; Application HACR, Reverse Feed, Panelboard; Applicable Standard IEC 60947-2, SABS 156, SEV 157-1, NFC 63-120, VDE0660, Federal Specification W-C-375b 12b/14b
