GHB1030 Eaton / Cutler-Hammer / Westinghouse Molded Case Circuit Breakers

Item # GHB1030

GHB1030
  • GHB1030
  • GHB1030
  • GHB1030

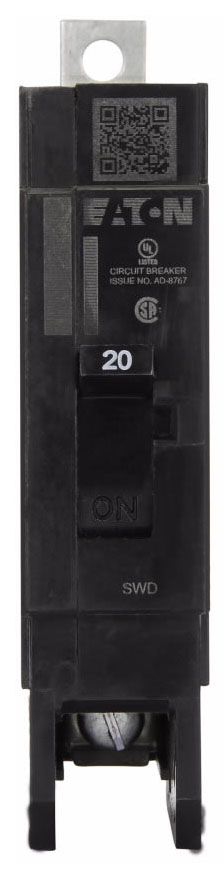

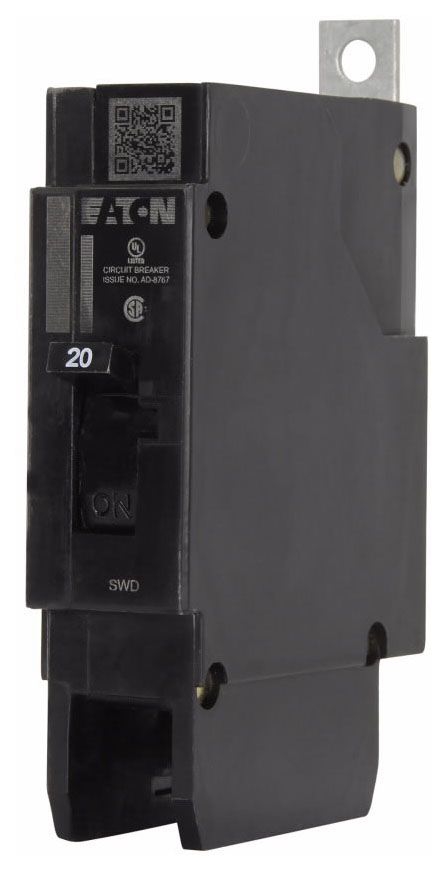

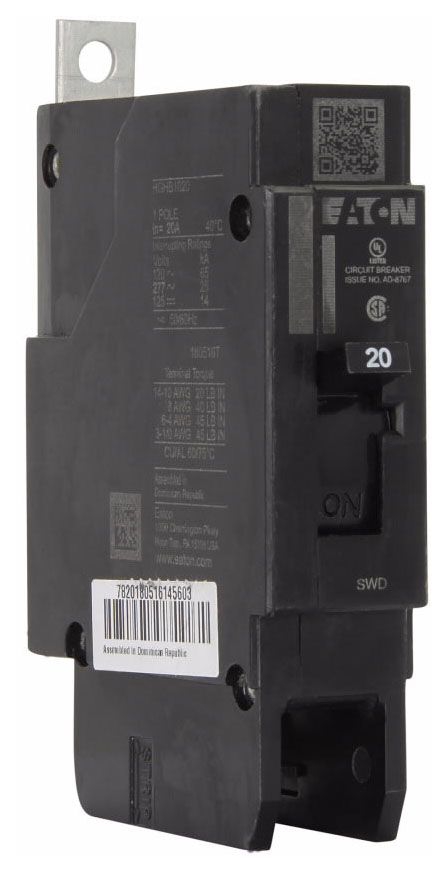

NOTE: Images are for Reference Only

Product Specifications

Type
GHB
Amperage
30
Poles
1
Voltage
277/480
Short Circ Int Cap
14kA@277V
Configuration
Bolt-On
Feature 1
LI Trip Functions

GHB1030 Description

Eaton, Molded Case, Circuit Breaker, Series C, Type GHB, 30A, 1P, 277/480 VAC, Bolt-On, Thermal Magnetic, Interrupting Current: 14 kA at 277 VAC, Non-Interchangeable, Long Time & Instantaneous (LI) Trip Functions, G Frame Molded Case Circuit Breakers from Eaton / Cutler-Hammer / Westinghouse

Features and Benefits

Features/Benefits:
All 2 and 3-Pole Circuit Breakers are of the Common Trip Type, on All 3-Phase Delta (240 Volt) Grounded B Phase Applications, Refer to Eaton; All G-Frame Circuit Breakers are Suitable for Reverse Feed Use; HACR Rated
Additional Information:
277/480 VAC 50/60 Hz, 125 VDC, 30 A, 14 kA Interrupt Rating, 1-Pole, G-Frame, Aluminum Pressure Line and Load Side Terminal, Fixed Thermal Magnetic, Molded Case, Non-Interchangeable Trip Circuit Breaker
