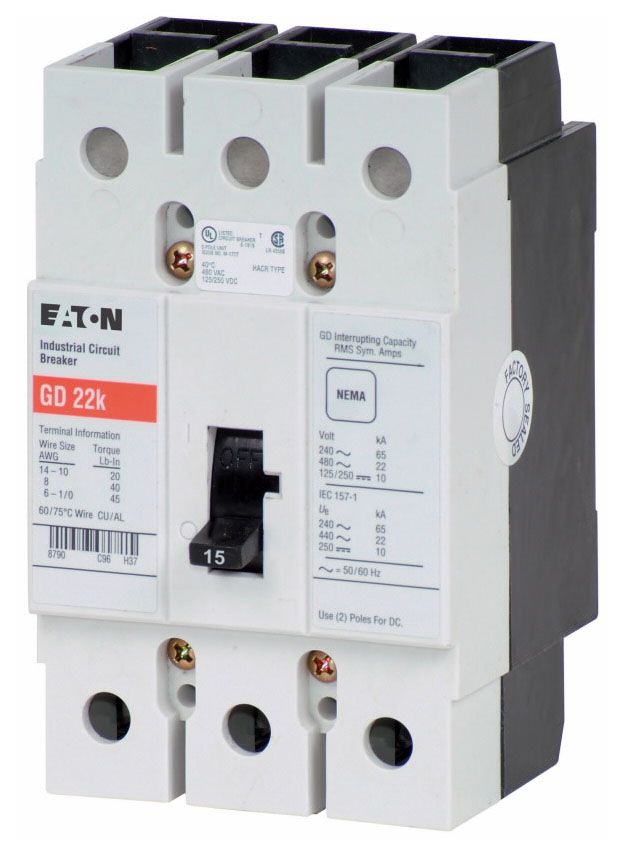

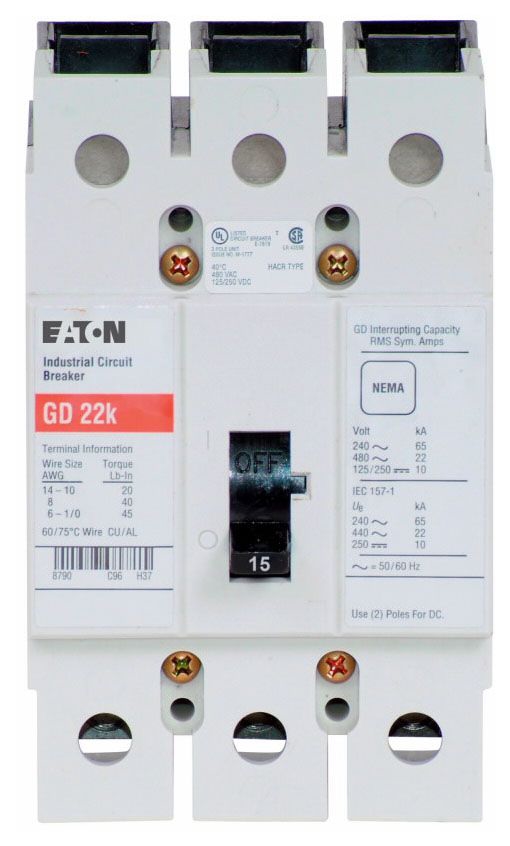

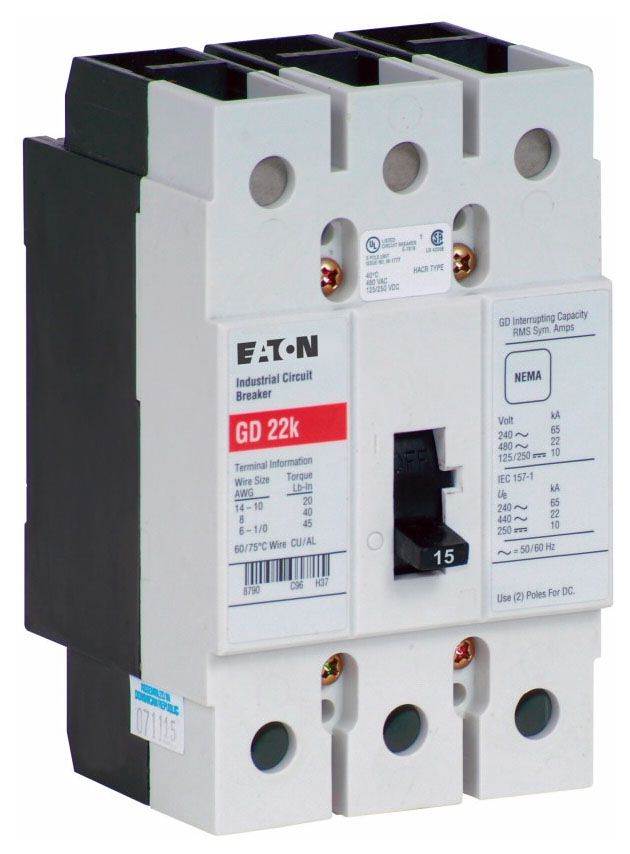

GD3100 Eaton / Cutler-Hammer / Westinghouse Molded Case Circuit Breakers

Item # GD3100

GD3100
  • GD3100
  • GD3100
  • GD3100

NOTE: Images are for Reference Only

Product Specifications

Type
GD
Amperage
100
Poles
3
Voltage
480

GD3100 Description

SERIES C G-FRAME CABLE MOLDED CASE CIRCUIT BREAKER GD 3P 100A CIRCUIT BKR Molded Case Circuit Breakers from Eaton / Cutler-Hammer / Westinghouse

Features and Benefits

Features/Benefits:
All Two and Three-pole Circuit Breakers are of the Common Trip Type, on all Three-phase Delta (240 V) Grounded B Phase Applications, refer to Eaton; All G-Frame Circuit Breakers are Suitable for Reverse Feed Use; HACR Rated
Additional Information:
480 VAC 50/60 Hz, 250 VDC, 100 A, 22/10 kA, 3-Pole, Steel Pressure Screw Line and Load Terminal, GD Frame, Thermal Magnetic, Molded Case, Non-Interchangeable Trip Circuit Breaker
