GD2020 Eaton / Cutler-Hammer / Westinghouse Molded Case Circuit Breakers

Item # GD2020

GD2020
  • GD2020
  • GD2020

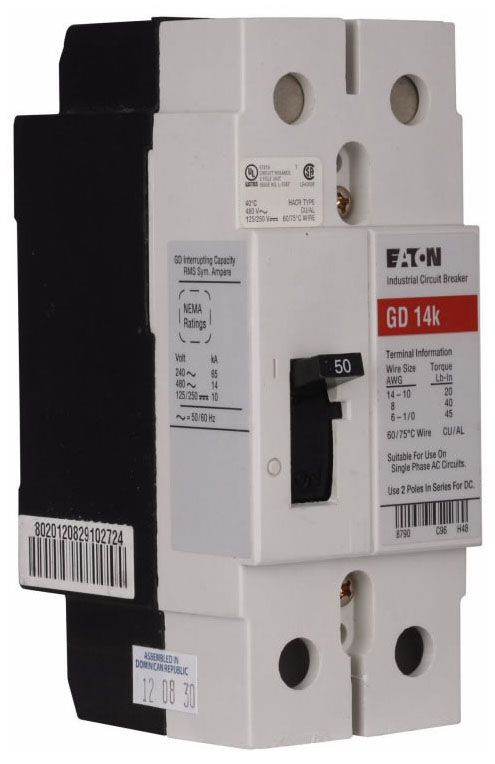

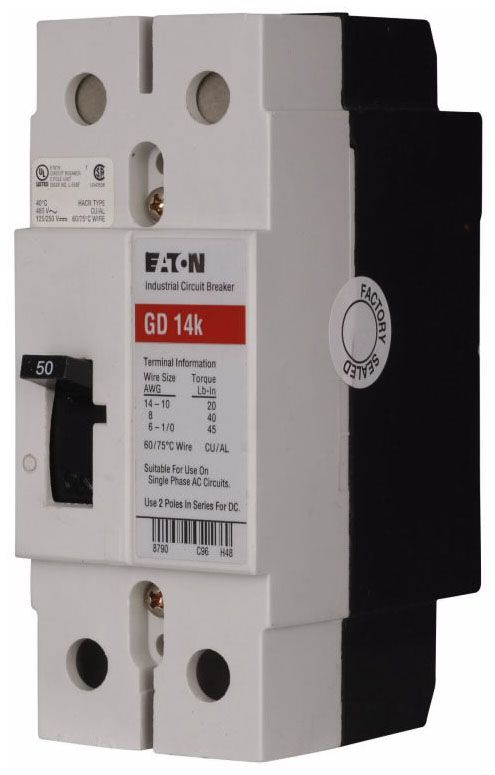

NOTE: Images are for Reference Only

Product Specifications

Type
GD
Amperage
20
Poles
2

GD2020 Description

SERIES C G-FRAME CABLE MOLDED CASE CIRCUIT BREAKER 2P 20A 480V C/B Molded Case Circuit Breakers from Eaton / Cutler-Hammer / Westinghouse

Features and Benefits

Additional Information:
Non-Interchangeable Trip Circuit Breaker; Type Fixed Thermal Magnetic, Molded Case; Frame Type G; Voltage Rating 480 Volt AC 50/60 Hertz, 125/250 Volt DC; Maximum AC Voltage Rating 480 Volt; Maximum DC Voltage Rating 250 Volt; Current Rating 20 Amp at 40 Deg C; Number of Poles 2; Interrupting Rating 65 Kiloamp at 240 Volt AC, 14 Kiloamp at 480 Volt AC, 10 Kiloamp at 250 Volt DC; Terminal Type Steel Pressure Line and Load; Size 2 Inch Width x 2.81 Inch Depth x 4.88 Inch Height; Approval UL 489, CSA C22.2; Application HACR, Reverse Feed; Applicable Standard IEC 60947-2, SABS 156, SEV 157-1, NFC 63-120, VDE0660, Federal Specification W-C-375b 13b
